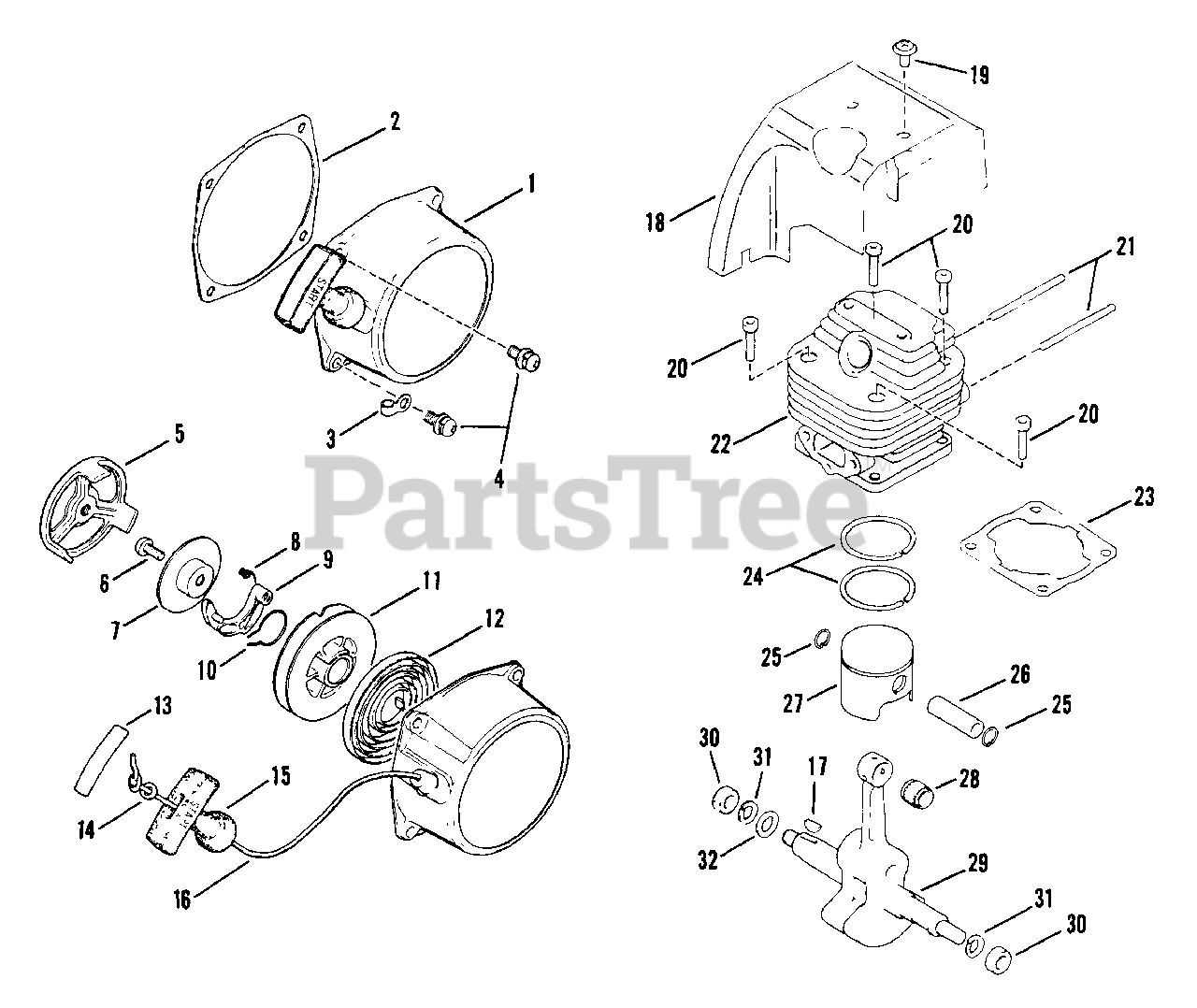

RT 4151 (80142) - Snapper Walk-Behind Trimmer RT4151 Recoil Starter Assm'y Parts Diagram

Walk-Behind Trimmer

RT4151 Recoil Starter Assm'y Parts Diagram

  • Title
1

Snapper 7044102

RECOIL STARTER ASSM'Y.
(Superseded to 7044102YP)

Note: (Includes items 5 thru 16)

$97.99

$

Usually ships in 2-12 days

0

2

Snapper 7044101

GASKET, Recoil Starter

$

$

Currently unavailable

3

Snapper 7044103

CLAMP, Fuel Tube

$

$

Currently unavailable

4

$

$

Currently unavailable

5

Snapper 7044105

PULLEY,L Recoil Starter

$

$

Not available

6

$

$

Currently unavailable

7

Snapper 7044107

PLATE, Friction

$

$

Currently unavailable

8

Snapper 7044108

SPRING, Return
(Superseded to 7044108YP)

$6.99

$

In Stock, only 1 left!

0

9

Snapper 7044109

RATCHET

$

$

Currently unavailable

10

Snapper 7044110

SPRING, Friction

$

$

Currently unavailable

11

$

$

Currently unavailable

12

Snapper 7044112

SPRING, Spiral

$

$

Currently unavailable

13

Snapper 7044113

TAPE, Knob

$

$

Currently unavailable

14

$

$

Currently unavailable

15

Snapper 7044115

KNOB, Recoil Starter

$

$

Currently unavailable

16

Snapper 7044116

ROPE, Recoil Starter

$

$

Currently unavailable

$

$

Currently unavailable

18

Snapper 7044014

COVER, Cylinder

$

$

Currently unavailable

19

$

$

Currently unavailable

20

Snapper 7043952

BOLT, Cylinder

Note: Was 44015

$

$

Currently unavailable

21

Snapper 7044019

STUD BOLT

$

$

Currently unavailable

22

Snapper 7044016

CYLINDER

$

$

Currently unavailable

23

Snapper 7044017

GASKET, Cylinder

$

$

Not available

24

Snapper 7044020

RING, Piston

$

$

Not available

25

Snapper 7044021

SNAP-RING, Piston Pin

$

$

Currently unavailable

26

Snapper 7044022

PISTON

Note: (Includes item 27)

$

$

Currently unavailable

27

Snapper 7044024

PIN, Piston

$

$

Currently unavailable

28

Snapper 7044025

BEARING, Needle

$

$

Currently unavailable

29

Snapper 7044029

CRANKSHAFT

Note: (Incl. 28 & 33)

$

$

Currently unavailable

30

Snapper 7044026

NUT, Crankshaft

$

$

Currently unavailable

31

Snapper 7044027

WASHER, Spring

$

$

Currently unavailable

32

$

$

Currently unavailable

$

$
