RT 4151 (80142) - Snapper Walk-Behind Trimmer RT4151 Carburetor And Clutch Assembly Parts Diagram

Walk-Behind Trimmer

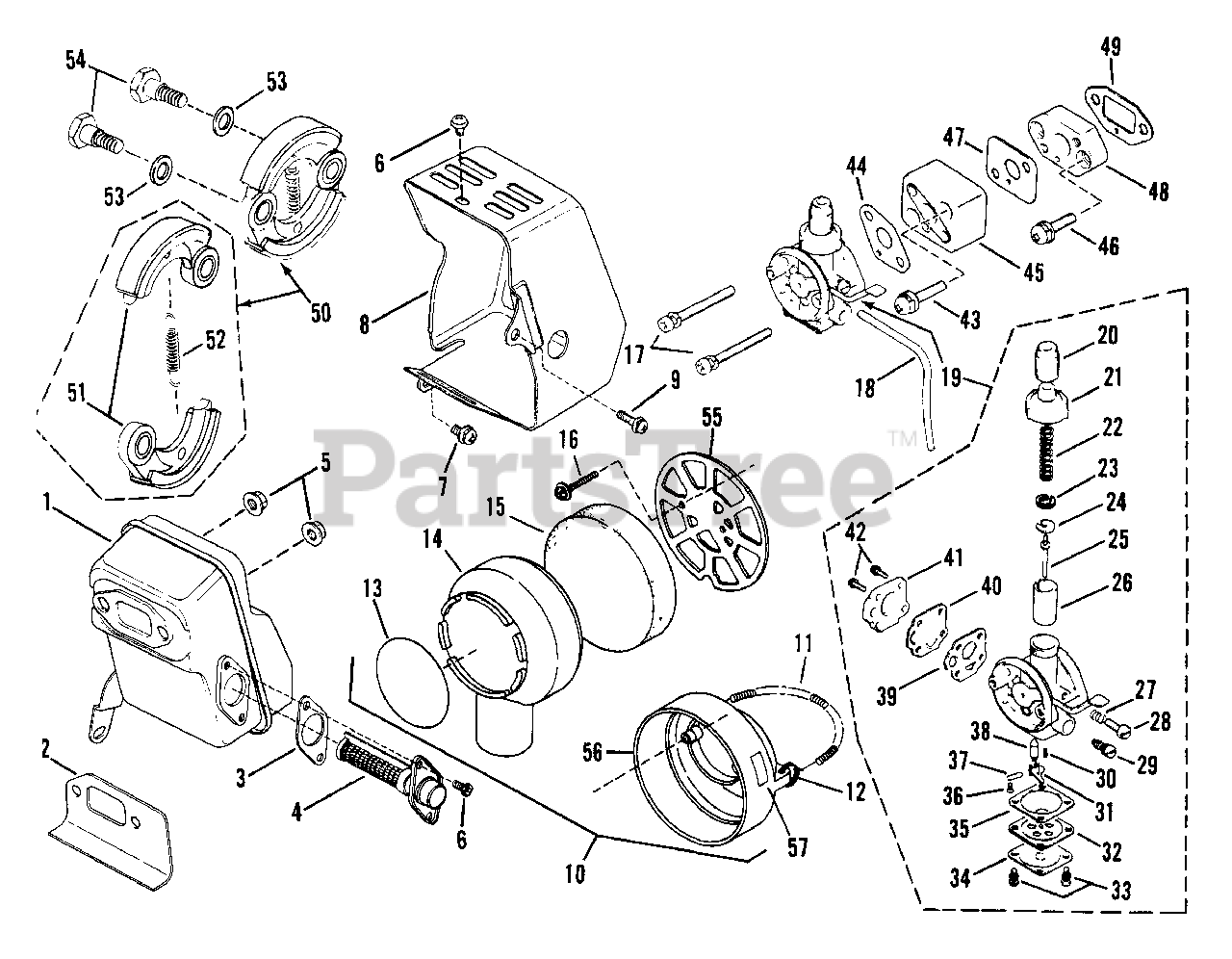

RT4151 Carburetor And Clutch Assembly Parts Diagram

  • Title

1

Snapper 7044240

MUFFLER

$

$

Currently unavailable

2

Snapper 7044088

GASKET, Muffler

$

$

Not available

3

Snapper 7044241

GASKET, Spark Arrester
(Superseded to 7044241YP)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper 7044242

SPARK ARRESTER

$

$

Currently unavailable

5

Snapper 7044091

LOCKNUT

$

$

Currently unavailable

6

Snapper 7044093

SCREW

$

$

Currently unavailable

7

Snapper 7044095

SCREW

$

$

Currently unavailable

8

Snapper 44293

COVER, Muffler

$

$

Currently unavailable

9

Snapper 7044104

SCREW

Note: Was 44094

$

$

Currently unavailable

10

Snapper 7044258

ASSM'Y, Air Cleaner

Note: (Includes items 11 thru 15 & 55 thru 57)

$

$

Currently unavailable

11

Snapper 7044285

SPRING

$

$

Not available

12

Snapper 7044199

RING

$

$

Currently unavailable

13

Snapper 23631

LABEL

$25.99

$

Usually ships in 2-12 days

0

14

Snapper 7044287

COVER, Cleaner

$

$

Currently unavailable

15

Snapper 7044288

ELEMENT

$

$

Currently unavailable

16

Snapper 7044205

SCREW, Cover

$

$

Not available

17

Snapper 7044056

SCREW, Carburetor

$

$

Not available

18

Snapper 7044054

TUBE, Overflow

$

$

Not available

19

Snapper 7044055

CARBURETOR ASSM'Y.

Note: (Includes items 20 thru 42)

$

$

Not available

20

Snapper 7044057

CAP, Rubber

$

$

Not available

21

Snapper 7044058

CAP, Mixing Chamber

$

$

Not available

22

Snapper 7044059

SPRING, Throttle

$

$

Not available

23

Snapper 7044012

CLIP, Needle
(Superseded to 7044012YP)

$3.49

$

Usually ships in 2-12 days

0

24

Snapper 7044060

RETAINER, Spring

$

$

Currently unavailable

25

Snapper 7044061

NEEDLE, Jet Assm'y.

$

$

Not available

26

Snapper 7044062

VALVE, Throttle

$

$

Not available

27

Snapper 7044063

SPRING, Throttle Adj. Screw

$

$

Currently unavailable

28

Snapper 7044064

SCREW, Throttle Adj.

$

$

Not available

29

Snapper 7044065

NEEDLE, Main Jet Assm'y.

$

$

Not available

30

Snapper 7044066

SPRING, Inlet Valve

$

$

Currently unavailable

31

Snapper 7044074

ARM, Float
(Superseded to 7044074YP)

$18.99

$

Usually ships in 2-12 days

0

32

Snapper 7044068

DIAPHRAGM, Main Assm'y.

$

$

Not available

33

Snapper 7044078

SCREW

$

$

Currently unavailable

34

Snapper 7044077

COVER, Main Daiphragm

$

$

Currently unavailable

35

Snapper 7044067

GASKET, Main Diaphragm

$

$

Not available

36

Snapper 7044076

SCREW, Float Pin Set

$

$

Currently unavailable

37

Snapper 7044075

PIN, Float

$

$

Currently unavailable

38

Snapper 7044073

VALVE, Float

$

$

Not available

39

Snapper 7044072

GASKET, Main Diaphragm
(Superseded to 7044072YP)

$8.49

$

Usually ships in 2-12 days

0

40

Snapper 7044071

DIAPHRAGM, Pump
(Superseded to 7044071YP)

$34.99

$

In Stock, only 1 left!

0

41

Snapper 7044070

COVER

$

$

Not available

42

Snapper 7044069

SCREW

$

$

Currently unavailable

43

Snapper 7044053

SCREW

$

$

Currently unavailable

44

Snapper 7044051

GASKET, Carburetor

$

$

Not available

45

Snapper 7044050

FLANGE, Intake (B)

$

$

Currently unavailable

46

Snapper 7044052

SCREW

$

$

Currently unavailable

47

Snapper 7044049

GASKET

$

$

Not available

48

Snapper 7044048

FLANGE, Intake (A)

$

$

Currently unavailable

49

Snapper 7044047

GASKET (A)

$

$

Not available

50

Snapper 7044098

CLUTCH ASSM'Y.
(Superseded to 7044098YP)

Note: (Includes items 51 & 52)

$58.99

$

Usually ships in 2-12 days

0

51

Snapper 7044099

SHOE, Clutch

$

$

Currently unavailable

52

Snapper 7044100

SPRING

$

$

Currently unavailable

53

Snapper 7044097

WASHER

$

$

Currently unavailable

54

Snapper 7044096

BOLT, Clutch

$

$

Currently unavailable

55

Snapper 7044289

GRID

$

$

Currently unavailable

56

Snapper 7044206

CASE, Cleaner

Note: Was 44290

$

$

Not available

57

Snapper 44291

LABEL, Choke

$

$

Currently unavailable
