RT-414 (21AA414E290) - White Outdoor Roto Boss Rear-Tine Tiller (2008) Gear Case 410 Parts Diagram

Roto Boss Rear-Tine Tiller

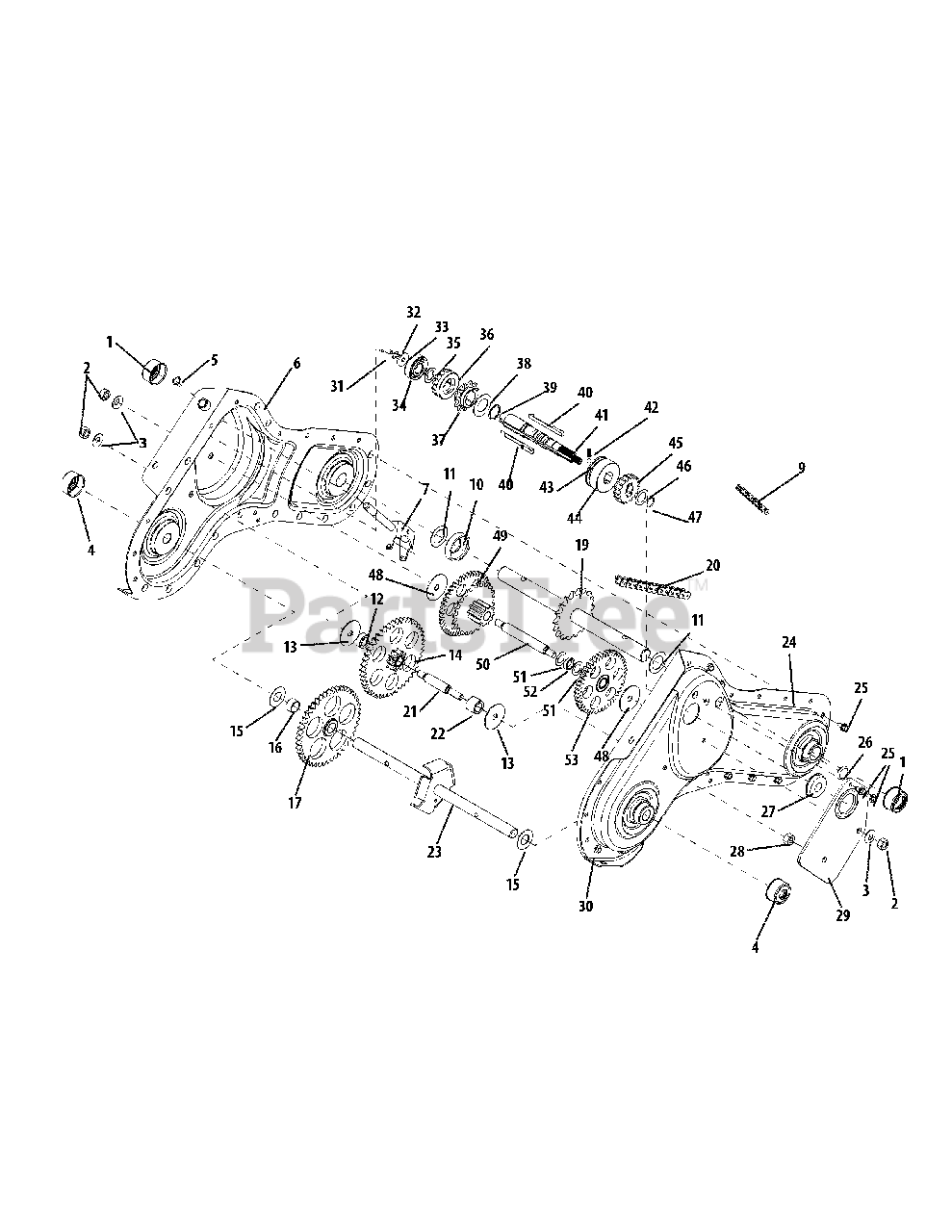

Gear Case 410 Parts Diagram

  • Title

1

MTD 921-0378

Shaft Seal, 1.0 Dia

$18.99

$

In Stock, only 2 left!

0

2

MTD 712-0378

Hex Nut, 7/16-20

$6.99

$

Usually ships in 3-6 days

0

3

MTD 736-0407

Bell Washer, .45 ID x 1.0 OD

$3.99

$

In Stock, Qty 12

0

4

MTD 721-0379

Shaft Seal, .75 Dia

$18.99

$

In Stock, only 2 left!

0

5

MTD 716-0865

Snap Ring, .50 Dia

$4.49

$

In Stock, only 1 left!

0

6

MTD 986-0038-0637

Gear Case Assembly, Right Half

$

$

Not available

7

MTD 618-0245B

Shift Assembly

$129.99

$

In Stock, only 3 left!

0

9

MTD 713-0233

Chain, #41 1/2" Pitch x 30 Links

$41.99

$

Usually ships in 3-6 days

0

10

MTD 950-0570

Space, 1.0 ID x 2.0 OD

$10.99

$

Usually ships in 3-6 days

0

11

MTD 936-0163

Thrust Washer, 1.03 ID x 1.62 OD
(Superseded to 736-0163)

$

$

Not available

12

MTD 950-0936

Spacer, .635 ID x 1.0 OD

$6.99

$

Usually ships in 3-6 days

0

13

MTD 736-0518

Thrust Washer, .445 ID x 1.92 OD

$10.99

$

Usually ships in 3-6 days

0

14

MTD 917-0004

Idler Gear Assembly

$165.99

$

Usually ships in 3-6 days

0

15

MTD 936-0351

Flat Washer, .760 ID x 1.50 OD
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

16

MTD 950-0938

Spacer, .735 ID x.886 OD

$

$

Not available

17

MTD 717-1458

Spur Gear, 46T

$171.99

$

Usually ships in 3-6 days

0

19

MTD 611-0021

Tine Shaft Assembly, 18T
(Superseded to 611-0021A)

$154.99

$

In Stock, only 1 left!

0

20

MTD 913-0226

Chain, #50 5/8" Pitch x 52 Links

$102.99

$

Usually ships in 3-6 days

0

21

MTD 738-0885

Jack Shaft, 5/8 Dia. X. 2.06 Lg

$

$

Not available

22

MTD 750-0935

Spacer, .635 ID x 1.0 OD

$7.99

$

Usually ships in 3-6 days

0

23

MTD 611-04073

Wheel Shaft Assembly

$

$

Not available

24

MTD 986-0039-0637

Gear Case Assembly, Left Half

$

$

Not available

25

MTD 710-0896

Hex Washer Screw, 1/4-14 x.625

$4.49

$

In Stock, Qty 20+

0

26

MTD 726-0331

Plug

$

$

Not available

27

MTD 941-0563

Ball Bearing w/Snap Ring

$36.99

$

In Stock, Qty 11

0

28

MTD 712-3067

Hex Patch Lock Nut, 7/16-20

$6.49

$

Usually ships in 3-6 days

0

29

MTD 786-0086-0637

Reinforcement Bracket

$29.99

$

Usually ships in 3-6 days

0

30

MTD 721-0295

Chain Case Gasket
(Superseded to 721P0295)

$

$

Not available

31

MTD 710-0751

Hex Cap Screw, 1/4-20 x.625

$3.99

$

In Stock, Qty 20+

0

32

MTD 936-0329

Lock Washer, 1/4

$4.49

$

In Stock, Qty 11

0

33

MTD 736-0512

Flat Washer, .281 ID x.875 OD

$4.49

$

Usually ships in 3-6 days

0

34

MTD 941-0600

Ball Bearing

$25.99

$

In Stock, Qty 20+

0

35

MTD 936-0541

Flat Washer

$

$

Not available

36

MTD 717-1451A

Spur Gear, 16T

$29.99

$

Usually ships in 3-6 days

0

37

MTD 713-0435

Sprocket, 11T #41 Chain

$21.99

$

In Stock, only 2 left!

0

38

MTD 736-0265

Flat Washer, .88 ID x 1.50 OD

$

$

Not available

39

MTD 916-0235

Retainer Ring

$10.99

$

Usually ships in 3-6 days

0

40

MTD 918-0237

Clutch Key

$

$

Not available

41

MTD 711-1087

Drive Shaft

$209.99

$

Usually ships in 3-6 days

0

42

MTD 932-0863

Compression Spring
(Superseded to 932-05125)

$4.49

$

In Stock, only 1 left!

0

43

MTD 741-0862

Detent Ball

$4.49

$

In Stock, Qty 20+

0

44

MTD 718-0234

Clutch Collar

$51.99

$

In Stock, only 2 left!

0

45

MTD 717-1409

Spur Gear, 17T

$21.99

$

In Stock, only 1 left!

0

46

MTD 736-0442

Flat Washer, .69 ID x 1.06 OD
(Superseded to 736-05031)

$3.49

$

Usually ships in 3-6 days

0

47

MTD 732-0614

Wire Ring

$6.49

$

In Stock, only 2 left!

0

48

MTD 736-0518

Thrust Washer, .445 ID x 1.9 OD

$10.99

$

Usually ships in 3-6 days

0

49

MTD 986-04073

Intermediate Gear Assembly

$

$

Not available

50

MTD 738-0884

Jack Shaft

$

$

Not available

51

MTD 936-0336

Flat Washer, .625 ID x 1.0 OD

$4.49

$

In Stock, Qty 7

0

52

MTD 750-0931

Spacer, .635 ID x.86 OD

$

$

Not available

53

MTD 917-0003

Tine Drive Assembly

$

$

Not available

MTD 986-04073

Complete Gear Case Assembly

$

$

Not available
