RT-414 (21AA414E290) - White Outdoor Roto Boss Rear-Tine Tiller (2008) Drive System 410 Parts Diagram

Roto Boss Rear-Tine Tiller

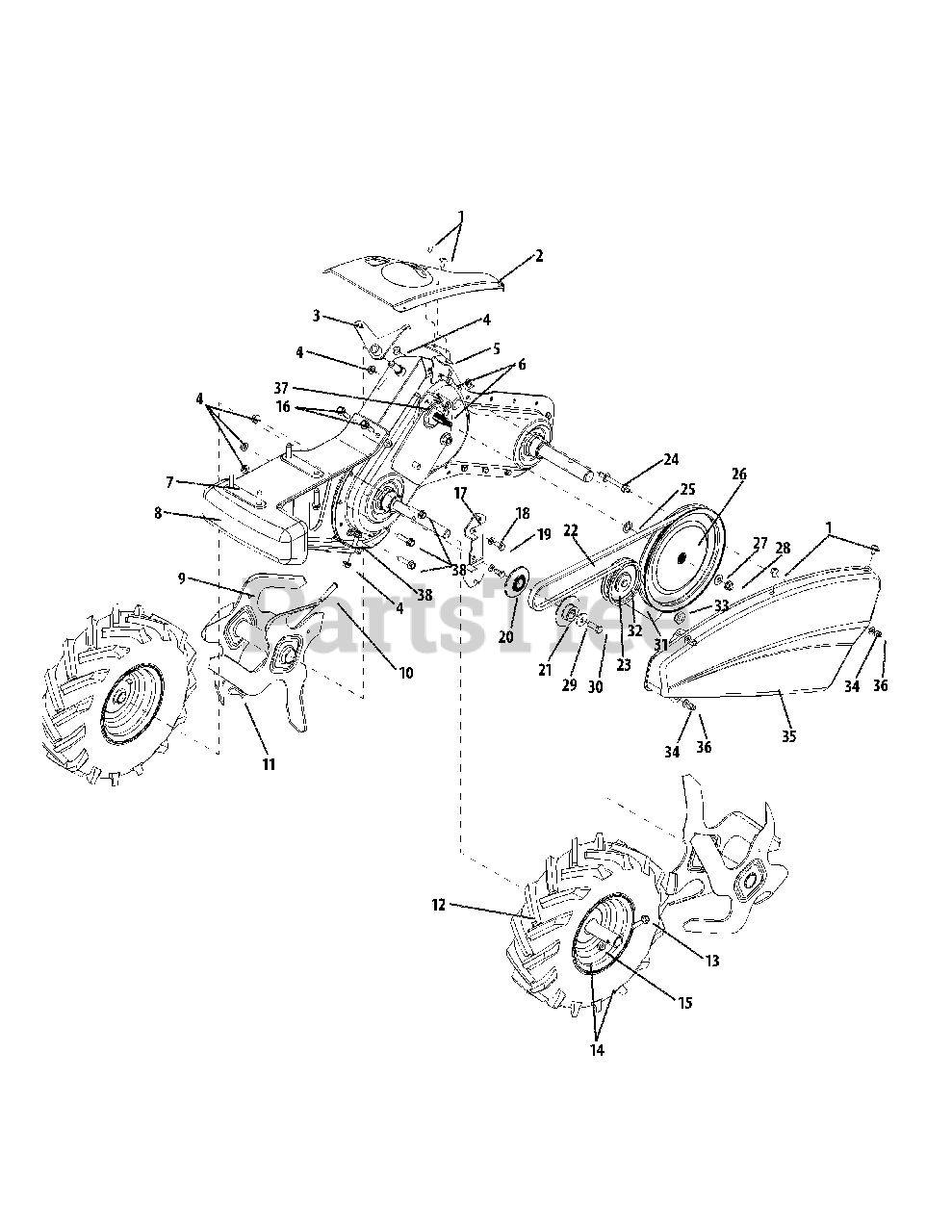

Drive System 410 Parts Diagram

  • Title
1

MTD 710-1017

Hex Screw, 1/4-20 x.625

$8.49

$

In Stock, Qty 9

0

2

MTD 786-0168

Shift Cover

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 786-0168-0638

COVER-SHIFT - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 786-0168-0667

COVER-SHIFT - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

3

MTD 686-0095-0637

Crank Shift Assembly
(Superseded to 686-0095)

$

$

Not available

4

MTD 712-04063

Hex Lock Nut,5/16-18

$3.99

$

In Stock, Qty 20+

0

5

MTD 786-0117

Shift Cover Mounting Bracket

Note: NLA

Variations

MTD 786-0117-0637

Shift Cover Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

6

MTD 710-3008

Hex Cap Screw, 5/16-18 x.75

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-1007

Hex Washer Screw, 3/8 -16 x 1.5

$6.49

$

Usually ships in 3-6 days

0

8

MTD 919-0009A

Frame Counterweight

$

$

Not available

9

MTD 642-0015-0637

Tine Assembly, Left

$164.99

$

In Stock, Qty 5

0

9

MTD 642-0016-0637

Tine Assembly, Right

$164.99

$

In Stock, Qty 6

0

10

MTD 911-0415

Clevis Pin
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 20+

0

11

MTD 914-0149B

Cotter Pin
(Superseded to 714-0149B)

$

$

Not available

12

MTD 934-04233

Complete Wheel Assembly

$186.99

$

Usually ships in 3-6 days

0

13

MTD 710-0606

Hex Head Screw, 1/4-20

$5.49

$

In Stock, Qty 10

0

14

MTD 734-1796-0901

Tire Only, 14"
(Superseded to 734-1796A)

$147.99

$

Usually ships in 3-6 days

0

14

MTD 634-04218

Rim Only, 6.0 x 3.25

Note: NLA

$

$

Currently unavailable

15

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

16

MTD 710-1090

Flange Screw, 5/16-18 x 1.25

$3.99

$

Usually ships in 3-6 days

0

17

MTD 686-0031A-0637

Belt Keeper Bracket Assembly

$

$

Not available

18

MTD 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

19

MTD 710-0237

Hex Cap Screw, 5/16-24 x.625

$4.49

$

In Stock, only 1 left!

0

20

MTD 756-0971

Inner Pulley Half

$14.99

$

Usually ships in 3-6 days

0

21

MTD 756-0972

Outer Pulley Half

$16.99

$

Usually ships in 3-6 days

0

22

MTD 954-0438

V-Belt

$53.99

$

In Stock, only 1 left!

0

23

MTD 756-0405

Flat Idler

$71.99

$

Usually ships in 3-6 days

0

24

MTD 738-0899

Bolt, 5/16-18 x1/4-28 x 2.35

$

$

Not available

25

MTD 936-0256

Flat Washer, .635 ID x.930 OD

$7.49

$

Usually ships in 3-6 days

0

26

MTD 756-0634

Flat Pulley

$86.99

$

Usually ships in 3-6 days

0

27

MTD 736-0105

Spring Washer, .401 ID x.870 OD

$4.49

$

In Stock, Qty 20+

0

28

MTD 712-0379

Flange Lock Nut, 3/8 -24

$4.99

$

Usually ships in 3-6 days

0

29

MTD 936-0452

Bell Washer, .396 ID x 1.140 OD
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 5

0

30

MTD 710-1039

Hex Cap Screw, 3/8 -24 x 1.0

$4.49

$

In Stock, Qty 20+

0

31

MTD 786-0080-0637

Idler Bracket

$20.99

$

Usually ships in 3-6 days

0

32

MTD 710-0723

Hex Cap Screw, 3/8 -16 x 1.25

$4.99

$

In Stock, only 3 left!

0

33

MTD 738-0876A

Shoulder Nut,7/16-20

$10.99

$

In Stock, Qty 15

0

34

MTD 936-3020

Flat Washer, .271 ID x.630 OD
(Superseded to 736-3020)

$

$

Not available

35

MTD 786-0100

Belt Cover

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 786-0100-0480

COVER BELT - BRILLIANT GREEN (0480)

$

$

Not available

MTD 786-0100-0637

COVER-BELT - POWDER BLACK (0637)

$

$

Not available

MTD 786-0100-0638

COVER-BELT - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 786-0100-0640

COVER-BELT - CO-OP GREEN (0640)

$

$

Not available

MTD 786-0100-0648

COVER-BELT - TECH GRAY (0648)

$

$

Not available

MTD 786-0100-0662

COVER-BELT - OYSTER GRAY (0662)

$

$

Not available

MTD 786-0100-0667

COVER-BELT - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

36

MTD 712-0392

Hex Lock Nut, 1/4

$6.99

$

In Stock, only 1 left!

0

37

MTD 786-0107

Cable Bracket

$

$

Not available

38

MTD 737-0298

Oil Drain Extension

$12.99

$

Usually ships in 3-6 days

0

39

MTD 737-0132

End Cap

$10.99

$

Usually ships in 3-6 days

0
