RT 2451 (80046) - Snapper Walk-Behind Trimmer RT2451 Fuel Tank And Rotor Parts Diagram

Walk-Behind Trimmer

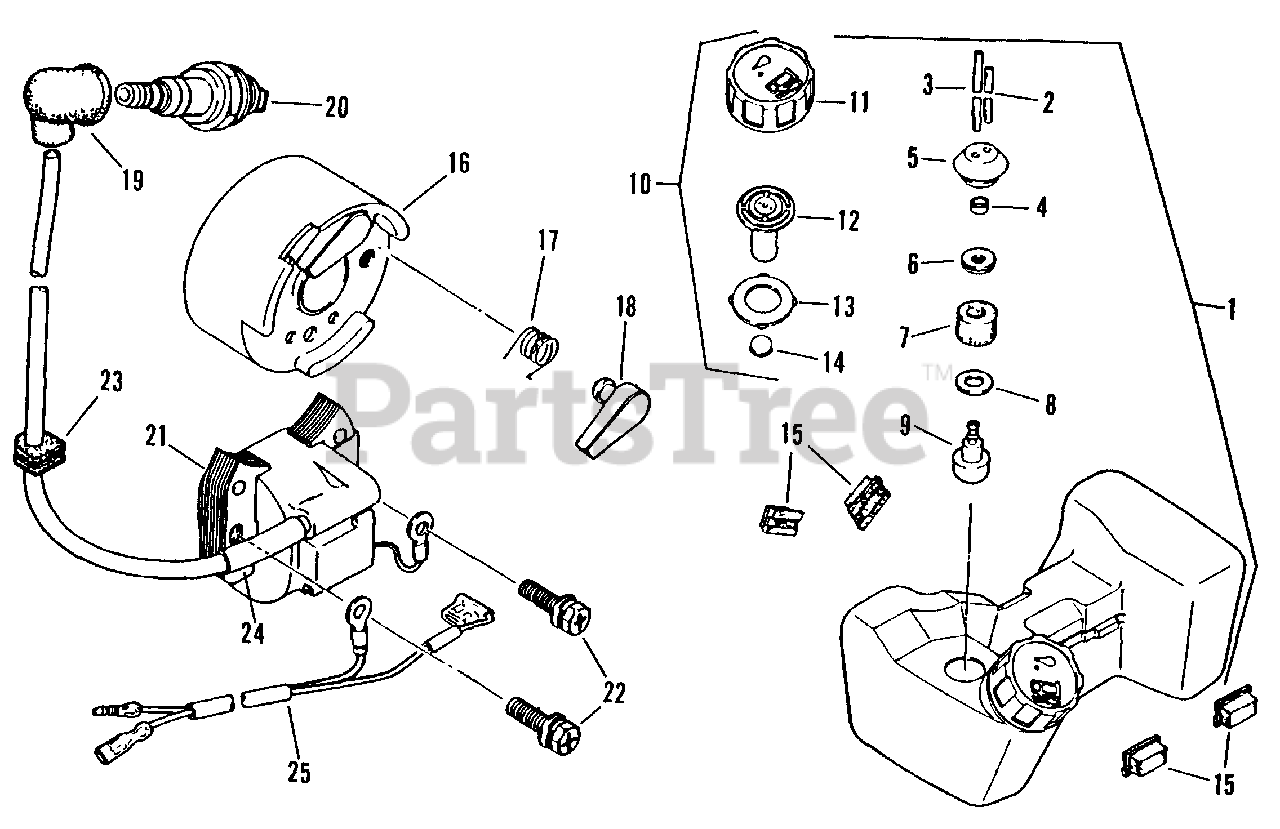

RT2451 Fuel Tank And Rotor Parts Diagram

  • Title

1

Snapper 7044495

ASSEMBLY, Fuel Tank

Note: (Includes items 2 thru 14)

$

$

Currently unavailable

2

Snapper 7044187

TUBE, Fuel
(Superseded to 7044187YP)

Note: Was 44482

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 7044483

HOSE, Fuel
(Superseded to 7044483YP)

$9.49

$

Usually ships in 2-12 days

0

4

Snapper 7044484

BUSHING

$

$

Currently unavailable

5

Snapper 7044490

PLUG

$

$

Not available

6

Snapper 7044491

WASHER, Seal

$

$

Currently unavailable

7

Snapper 7044492

FILTER, Fuel
(Superseded to 7044492YP)

$4.49

$

Usually ships in 2-12 days

0

8

Snapper 7044493

SEAL, Dust

$

$

Currently unavailable

9

Snapper 7044494

WEIGHT, Filter

$

$

Currently unavailable

10

Snapper 7044485

ASSEMBLY, Tank Cap

Note: (Includes items 11 thru 14)

$

$

Not available

11

Snapper 7044486

CAP, Fuel Tank

$

$

Not available

12

Snapper 7044487

VALVE, Breather

$

$

Currently unavailable

13

Snapper 7044488

PACKING

$

$

Currently unavailable

14

Snapper 7044489

CAP

$

$

Currently unavailable

15

Snapper 7044382

PAD

$

$

Not available

16

Snapper 7044386

ROTOR

Note: (Includes items 17 & 18)

$

$

Currently unavailable

17

Snapper 7044431

SPRING, Return

$

$

Not available

18

Snapper 7044432

RATCHET

$

$

Not available

19

Snapper 7044430

CAP, Plug

$

$

Currently unavailable

20

PLUG, Spark (Champion CJ8)

$

$

Not available

21

Snapper 7044433

COIL, Ignition

$

$

Not available

22

Snapper 7044034

BOLT/WASHER

Note: Was 44434

$

$

Currently unavailable

23

Snapper 7044435

GROMMET

$

$

Currently unavailable

24

Snapper 7044436

TUBE

$

$

Currently unavailable

25

Snapper 7044437

ASSEMBLY, Wire Lead

$

$

Currently unavailable
