RT 2451 (80046) - Snapper Walk-Behind Trimmer RT2451 Clutch Assm'y And Piston Assm'y Parts Diagram

Walk-Behind Trimmer

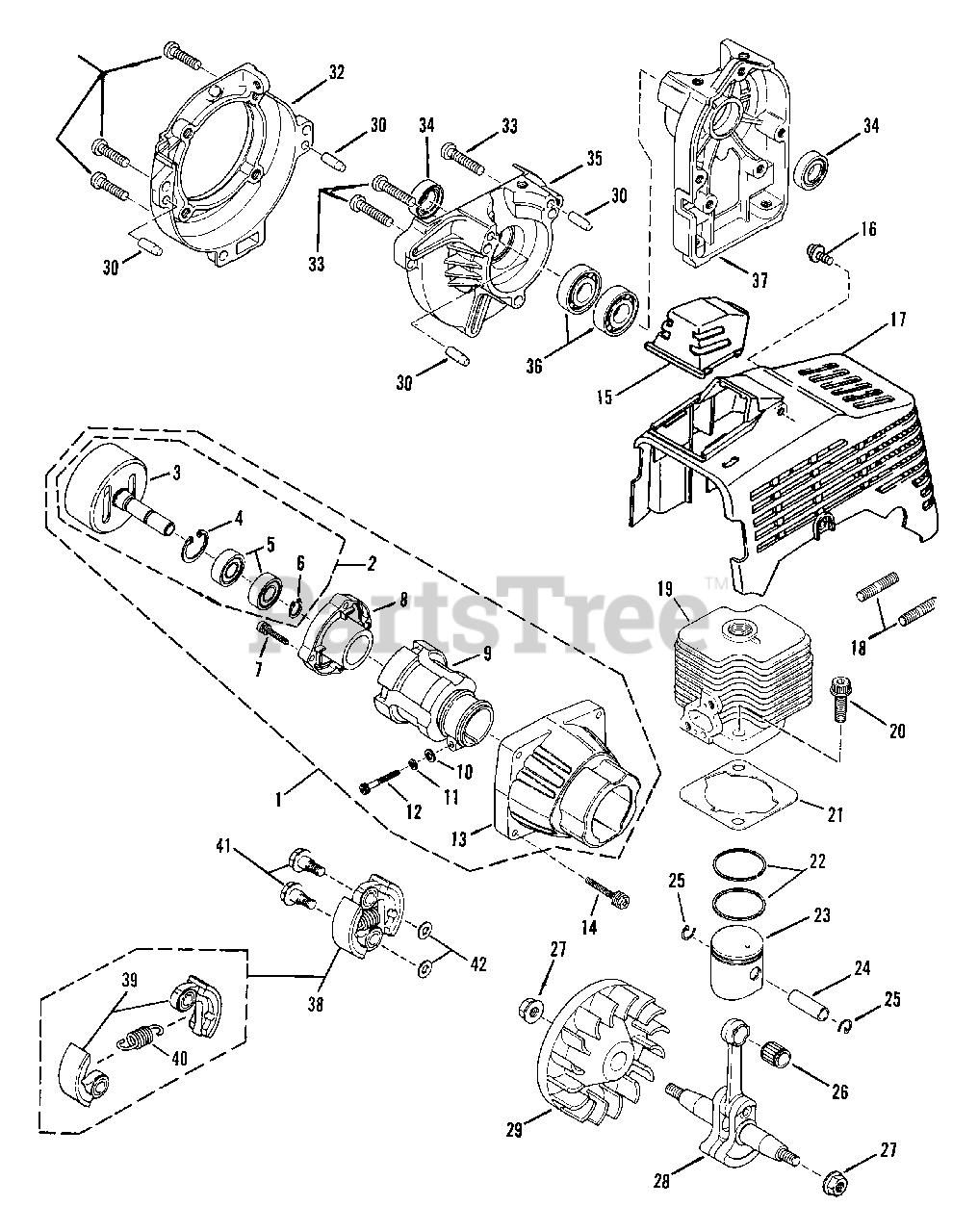

RT2451 Clutch Assm'y And Piston Assm'y Parts Diagram

  • Title
1

Snapper 43138

ASSEMBLY, Clutch Case

Note: (Includes items 2 thru 13,

$

$

Currently unavailable

2

Snapper 7043111

ASSEMBLY, Clutch Drum
(Superseded to 7043111YP)

Note: (Includes items 3 thru 6)

$33.99

$

Usually ships in 2-12 days

0

3

Snapper 43112

DRUM, Clutch

$

$

Currently unavailable

4

Snapper 7043026

RING, Snap 26mm

$

$

Currently unavailable

5

Snapper 7043914

BEARING

Note: Was 43126

$

$

Not available

6

Snapper 7043027

RING, Snap 10mm

$

$

Currently unavailable

7

Snapper 7043122

SCREW, M5 x 20mm

Note: (Includes washer)

$

$

Currently unavailable

8

Snapper 7043995

COVER, Clutch Bearing
(Superseded to 7043995YP)

$11.99

$

Usually ships in 2-12 days

0

9

Snapper 7043093

RING, Insert

$

$

Currently unavailable

10

Snapper 7043124

WASHER, Flat MS

$

$

Currently unavailable

11

Snapper 7043923

WASHER, Lock M5

$

$

Currently unavailable

12

Snapper 7043123

SCREW, M5 x 25mm Socket

$

$

Currently unavailable

13

Snapper 7043108

CASE, Clutch

$

$

Currently unavailable

14

Snapper 7043118

BOLT, M6 x 28mm Hex Head

$

$

Not available

15

Snapper 7044424

GUARD, Spark Plug

$

$

Currently unavailable

16

Snapper 7044428

SCREW, M5 x 12mm

$

$

Currently unavailable

17

Snapper 7044605

COVER, Cylinder

$

$

Currently unavailable

18

Snapper 7044426

BOLT, Stud

$

$

Currently unavailable

19

Snapper 7044614

CYLINDER

$

$

Currently unavailable

20

Snapper 7044316

BOLT, Flange

$

$

Currently unavailable

21

Snapper 7044317

GASKET, Cylinder
(Superseded to 7044317YP)

$3.49

$

Usually ships in 2-12 days

0

22

Snapper 7044318

RING, Piston
(Superseded to 7044318YP)

$9.49

$

Usually ships in 2-12 days

0

23

Snapper 7044320

PISTON
(Superseded to 7044320YP)

$49.99

$

Usually ships in 2-12 days

0

24

Snapper 7044321

PIN, Piston

$

$

Not available

25

Snapper 7044319

CLIP, Piston Pin

$

$

Not available

26

Snapper 7044322

BEARING, Needle

$

$

Currently unavailable

27

Snapper 7044359

NUT, Conical

$

$

Currently unavailable

28

Snapper 7044324

CRANKSHAFT ASSEMBLY

$

$

Currently unavailable

29

Snapper 7044429

FLYWHEEL

$

$

Not available

30

Snapper 7044307

PIN, Dowel

$

$

Currently unavailable

31

Snapper 7044034

BOLT/Washer

Note: Was 44434

$

$

Currently unavailable

32

Snapper 7044311

CASE, Fan

$

$

Currently unavailable

33

Snapper 7044308

SCREW, M5 x 25mm

$

$

Currently unavailable

34

Snapper 7044013

SEAL, Oil
(Superseded to 7044013YP)

$10.99

$

Usually ships in 2-12 days

0

35

Snapper 7044608

CASE, Drive

$

$

Currently unavailable

36

Snapper 7044309

BEARING, Ball

$

$

Currently unavailable

37

Snapper 7044310

CASE, Starter

$

$

Currently unavailable

38

Snapper 7044369

CLUTCH ASSM'Y.

Note: (Includes items 39 & 40)

$

$

Not available

39

Snapper 7044366

SHOE, Clutch

$

$

Not available

40

$

$

Currently unavailable

41

Snapper 7044368

BOLT, Clutch

$

$

Currently unavailable

42

$

$

Currently unavailable
