RT 1330E (2690250) - Snapper 30" Rear-Engine Riding Mower, 13hp Engine & Electric Clutch Group - 13HP Briggs & Stratton Models Parts Diagram

30" Rear-Engine Riding Mower, 13hp

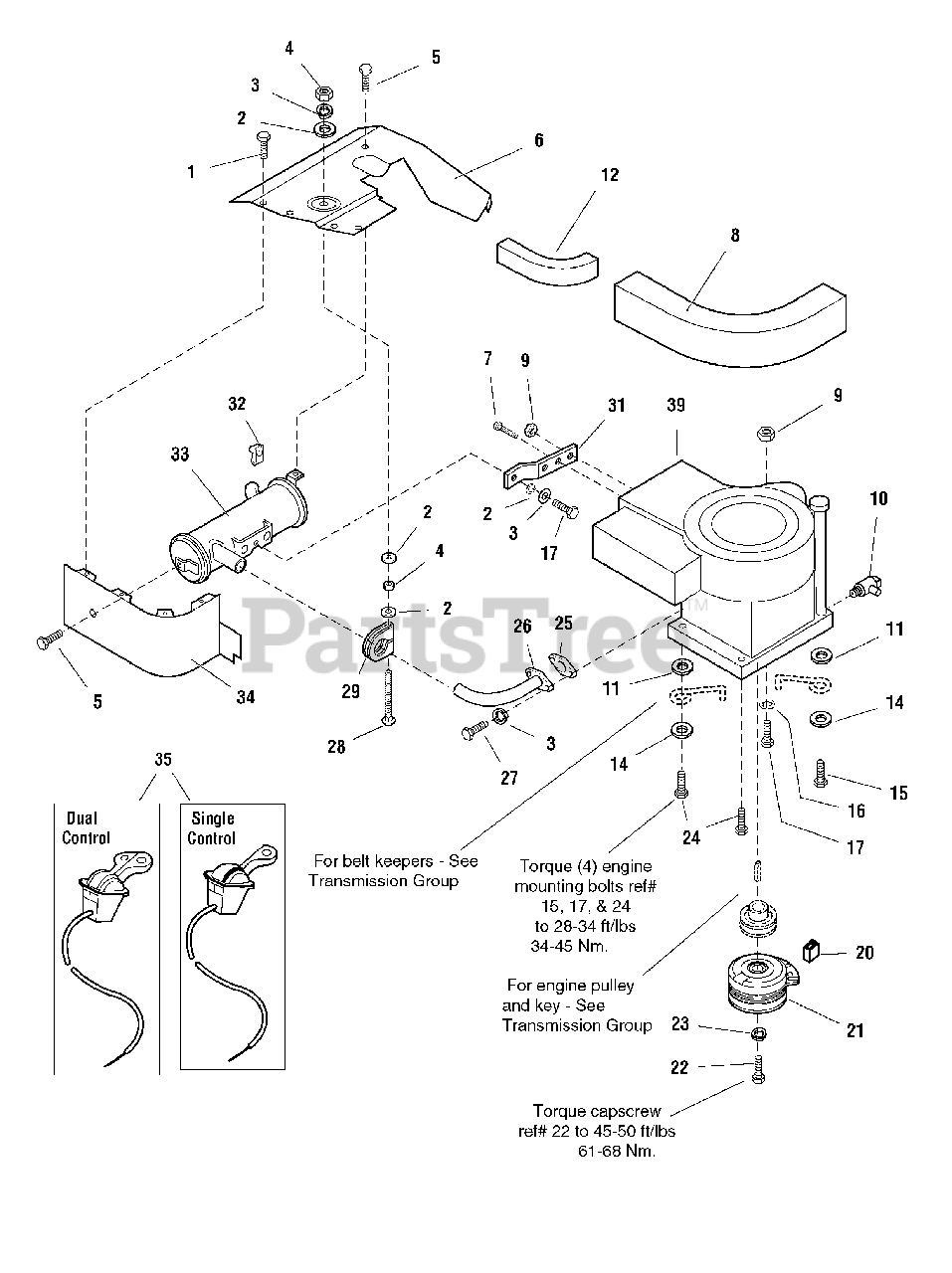

Engine & Electric Clutch Group - 13HP Briggs & Stratton Models Parts Diagram

  • Title

1

Snapper 1960720

SCREW, Thread Forming, #10-16 x 1/2
(Superseded to 1960720SM)

$4.99

$

Usually ships in 2-12 days

0

2

Snapper 1919326

WASHER, .34
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

3

Snapper 1917356

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

4

Snapper 1917372

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

5

Snapper 1924856

CAPSCREW, Hex Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

6

Snapper 1724428A

DUCT, R.H., Top
(Superseded to 1724428ASM)

$26.99

$

Usually ships in 2-12 days

0

7

Snapper 1960568

SCREW, Taptite, 1/4-20 x .88
(Superseded to 1960568SM)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 1709055

SEAL, Air Inlet
(Superseded to 1709055SM)

$

$

Not available

9

Snapper 1931277

NUT, Flange, Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

10

Snapper 1708405

VALVE, Shut-Off
(Superseded to 1708405SM)

$38.99

$

Usually ships in 2-12 days

0

11

Snapper 2833263

WASHER, Plain
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0

12

Snapper 1718648

EDGING, Seal
(Superseded to 1718648SM)

$15.99

$

Usually ships in 2-12 days

0

14

Snapper 1922755

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

15

Snapper 2860361

CAPSCREW, Taptite, 3/8-16 x 2
(Superseded to 2860361SM)

$6.49

$

In Stock, only 1 left!

0

16

Snapper 1933988

PUSH NUT, 5/16-18
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

17

Snapper 1933689

CAPSCREW, Hex, Whizlock, Flange, 5/16-18 x 1-1/2
(Superseded to 1933689SM)

$4.49

$

Usually ships in 2-12 days

0

20

Snapper 1708537

SLEEVE, Clutch Anchor
(Superseded to 1708537SM)

$4.49

$

In Stock, only 1 left!

0

21

Snapper 1686882

CLUTCH, Electric, Kit
(Superseded to 1686882SM)

$365.99

$

Usually ships in 2-12 days

0

22

Snapper 1960370

CAPSCREW, Hex Head, 7/16-20 x 2-1/2
(Superseded to 1960370SM)

$5.49

$

Usually ships in 2-12 days

0

23

Snapper 1918199

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

24

Snapper 1930598

CAPSCREW, Taptite, 3/8-16 x 1-1/2
(Superseded to 704010)

$4.99

$

Usually ships in 2-12 days

0

25

Snapper 1650670

GASKET, Muffler
(Superseded to 1650670SM)

$8.49

$

Usually ships in 2-12 days

0

26

Snapper 1724466

PIPE, Exhaust
(Superseded to 1724466SM)

$87.99

$

In Stock, only 1 left!

0

27

Snapper 1936228

CAPSCREW, Socket Head, 5/16-18 x 3/4
(Superseded to 1936228SM)

$4.49

$

In Stock, only 1 left!

0

28

Snapper 1960748

CARRIAGE BOLT, 5/16-18 x 3-1/4
(Superseded to 1960748SM)

$4.49

$

Usually ships in 2-12 days

0

29

Snapper 1676183

CLAMP, Muffler
(Superseded to 1676183SM)

$4.49

$

Usually ships in 2-12 days

0

31

Snapper 1724428A

SUPPORT, Muffler
(Superseded to 1724428ASM)

$26.99

$

Usually ships in 2-12 days

0

32

Snapper 1935255

NUT, Speed, Lug Type, 5/16-18
(Superseded to 1935255SM)

$3.49

$

In Stock, only 3 left!

0

33

Snapper 1708416

MUFFLER ASSEMBLY
(Superseded to 1708416SM)

$198.99

$

Usually ships in 2-12 days

0

34

Snapper 1724427A

DUCT, Bottom
(Superseded to 1724427ASM)

$42.99

$

Usually ships in 2-12 days

0

35

Snapper 1734506

THROTTLE CONTROL, Dual (Export Only)
(Superseded to 1734506SM)

$97.99

$

Usually ships in 2-12 days

0

35

Snapper 1722955

THROTTLE CONTROL, Single
(Superseded to 1722955SM)

$100.99

$

In Stock, only 2 left!

0

39

Snapper 21A907-0131-E1

* ENGINE, Briggs & Straton, 13HP, Mod. 21A907-0131-E1

$

$

Currently unavailable
