RT 1330 (2690172) - Snapper 30" Rear-Engine Riding Mower, 13hp Wheels & Tires Group Parts Diagram

30" Rear-Engine Riding Mower, 13hp

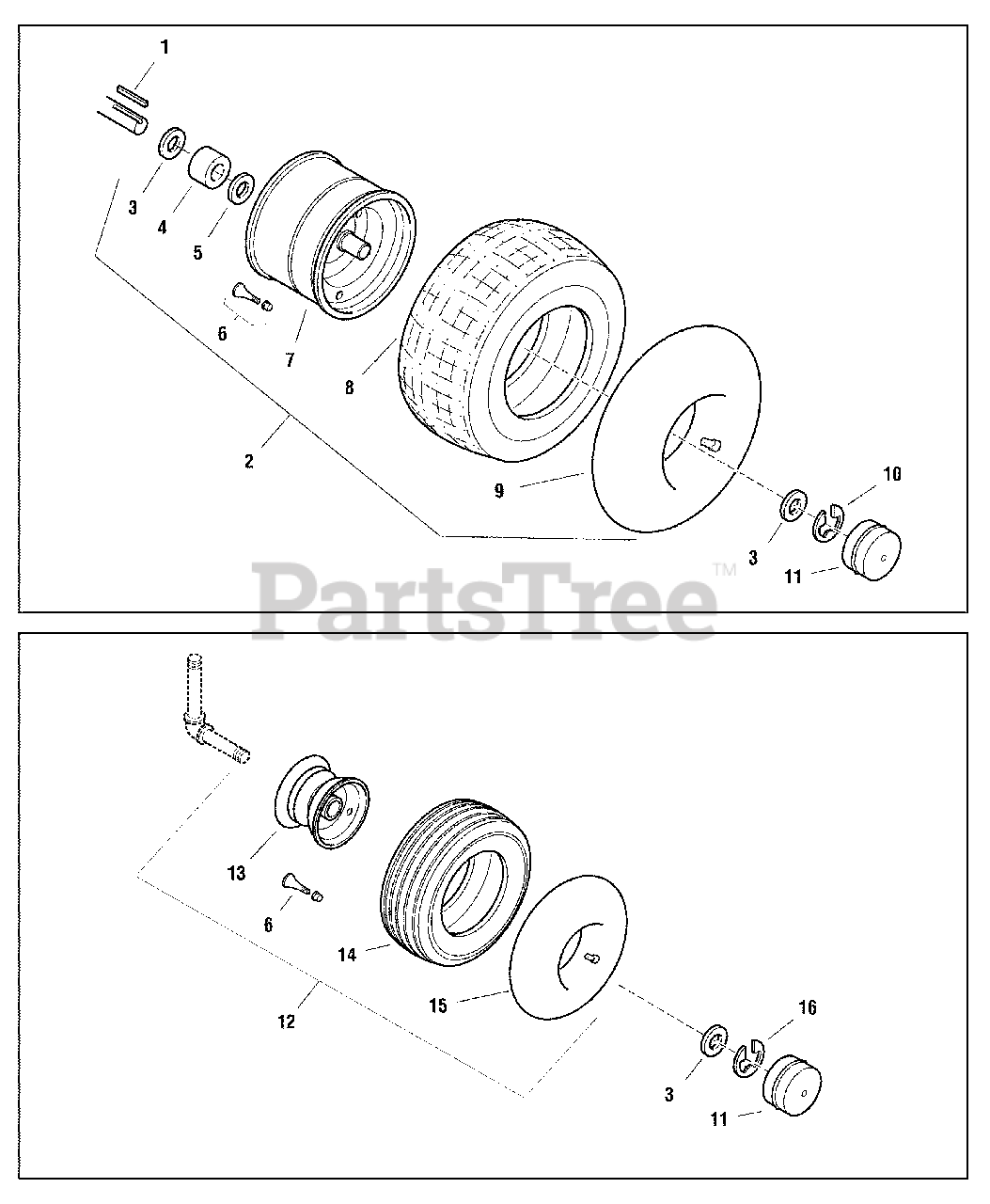

Wheels & Tires Group Parts Diagram

  • Title

1

Snapper 1729279

KEY, Square, 3/16 x 3/16 x 1-1/2 long
(Superseded to 703889)

$4.49

$

In Stock, only 3 left!

0

2

Snapper 1723171

REAR WHEEL & TIRE ASSEMBLY, Hoosier, (Includes Ref. Nos. 3,
(Superseded to 1723171SM)

$111.99

$

Usually ships in 2-12 days

0

3

Snapper 2860202

WASHER, 3/4
(Superseded to 2860202SM)

$4.49

$

In Stock, Qty 20+

0

4

Snapper 1717451

SPACER
(Superseded to 1717451SM)

$12.99

$

Usually ships in 2-12 days

0

5

Snapper 1960114

WASHER
(Superseded to 80003650)

$3.49

$

In Stock, Qty 20+

0

6

Snapper 2172353

VALVE STEM & CAP
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

7

Snapper 1723400

REAR WHEEL ASSEMBLY, Metallic Gray
(Superseded to 1723400SM)

$42.99

$

Usually ships in 2-12 days

0

8

Snapper 1723399

TIRE, Rear Wheel, 16 X 6.50-8
(Superseded to 7073584YP)

$170.99

$

Usually ships in 2-12 days

0

9

Snapper 2164247

TUBE, Rear Tire, 16 X 6.50 - 8.00
(Superseded to 2164247SM)

$40.99

$

Usually ships in 2-12 days

0

10

Snapper 3031418

E RING
(Superseded to 2827794SM)

Note: Was 927794

$3.49

$

In Stock, Qty 16

0

11

Snapper 1722675

HUB CAP, Silver
(Superseded to 1722675SM)

$4.49

$

In Stock, Qty 20+

0

12

Snapper 1723170

FRONT WHEEL & TIRE ASSEMBLY, Hoosier, 13 x 5.00-6, Metallic
(Superseded to 1723170SM)

$117.99

$

In Stock, only 1 left!

0

13

Snapper 1723402

FRONT WHEEL ASSEMBLY 13 x 5.00-6, Metallic Gray (Includes Re
(Superseded to 1723402SM)

$39.99

$

In Stock, only 1 left!

0

14

Snapper 1723401

TIRE, Front Wheel, 13 x 5.00-6
(Superseded to 1723401SM)

$

$

Not available

15

Snapper 1664090

TUBE, Front Wheel, 4.10/3.50 x 6
(Superseded to 1664090SM)

$26.99

$

In Stock, only 3 left!

0

16

Snapper 1611710

KLIP RING
(Superseded to 1611710SM)

$4.49

$

In Stock, Qty 20+

0

17

Snapper 1752171

BUSHING, Flanged, 3/4" ID x 1.380" OD, Front Wheels (Not Shown)
(Superseded to 1752171YP)

$11.99

$

In Stock, Qty 20+

0
