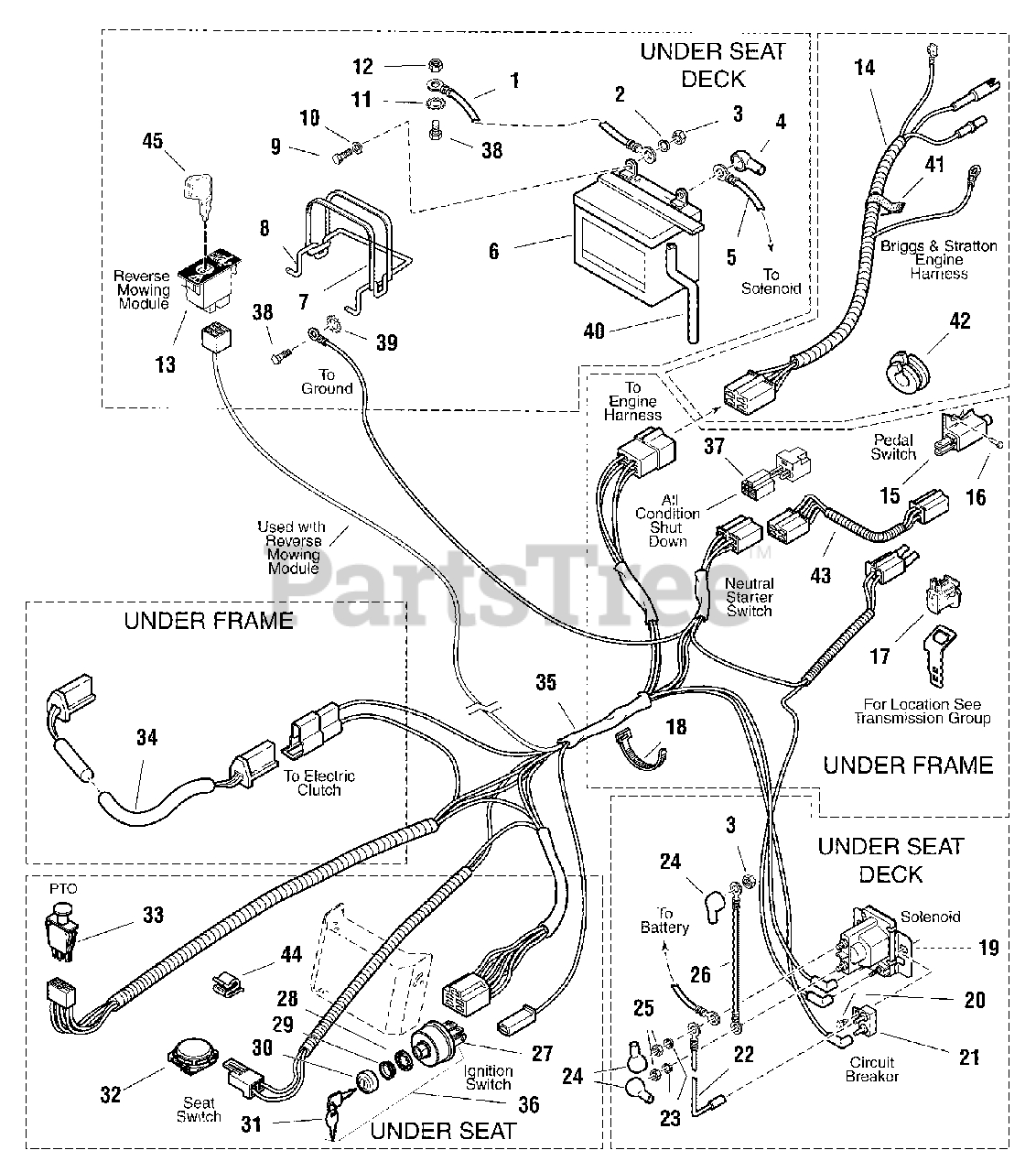

RT 1330 (2690172) - Snapper 30" Rear-Engine Riding Mower, 13hp Electrical Group Parts Diagram

30" Rear-Engine Riding Mower, 13hp

Electrical Group Parts Diagram

  • Title

1

Snapper 1713163SM

CABLE, Battery to Ground

$24.99

$

In Stock, only 2 left!

0

2

Snapper 2816964SM

WASHER, Lock, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

3

Snapper 2816622SM

NUT, Hex 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

4

Snapper 1677296SM

BOOT, Insulator

$6.49

$

In Stock, Qty 10

0

5

Snapper 1713163SM

CABLE, Battery to Solenoid (Briggs & Stratton Models)

$24.99

$

In Stock, only 2 left!

0

5

Snapper 1727668SM

CABLE, Battery to Solenoid (Kohler Models)

$11.99

$

Usually ships in 2-12 days

0

6

Snapper 1685215SM

BATTERY

$

$

Not available

7

Snapper 1665872SM

STRAP, Battery

$11.99

$

In Stock, Qty 7

0

8

Snapper 1667805SM

BRACE, Battery

$

$

Not available

9

Snapper 2823341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

10

Snapper 2821319SM

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 2820427SM

WASHER, Lock, External Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

13

Snapper 1726556SM

MODULE, Reverse Mowing
(Superseded to 1761897YP)

$30.99

$

Usually ships in 2-12 days

0

14

Snapper 1718948SM

WIRE ASSEMBLY, Harness to Engine (Briggs & Stratton Only)

$7.99

$

Usually ships in 2-12 days

0

15

Snapper 1717050SM

SWITCH, Neutral Start

$17.99

$

In Stock, Qty 20+

0

16

Snapper 1722035SM

POP-RIVET

$3.99

$

Usually ships in 2-12 days

0

17

Snapper 1732004SM

SWITCH, Push Button (N.O.)

$8.99

$

In Stock, Qty 20+

0

18

Snapper 2825094SM

TIE, Self-Locking
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

19

Snapper 1686981SM

SOLENOID
(Superseded to 1686981YP)

$28.99

$

In Stock, Qty 20+

0

20

Snapper 1925003SM

CAPSCREW, Hex Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, only 1 left!

0

21

Snapper 1665238SM

CIRCUIT BREAKER

$14.99

$

In Stock, Qty 20+

0

22

Snapper 1665237SM

WIRE ASSEMBLY

$11.99

$

In Stock, Qty 7

0

23

Snapper 2820426SM

LOCKWASHER, 5/16 Yellow

$4.49

$

In Stock, only 1 left!

0

24

Snapper 2122023SM

COVER, Terminal

$5.99

$

In Stock, Qty 12

0

25

Snapper 2820263SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

26

Snapper 1709088SM

CABLE, Solenoid to Starter

$11.99

$

Usually ships in 2-12 days

0

27

SWITCH, Ignition (6 pole)

$

$

Not available

28

Snapper 1960547SM

WASHER, Internal Tooth, 5/8

$4.49

$

In Stock, only 3 left!

0

29

Snapper 1717549SM

NUT
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

30

Snapper 1717550SM

COVER, Keyswitch
(Superseded to 847150)

$8.49

$

In Stock, Qty 15

0

31

Snapper 1717163SM

KEYS (Set of 2 Keys)

$8.99

$

In Stock, Qty 20+

0

32

Snapper 1714771SM

SWITCH, Seat, Gray Switch, Gray Retainer

Note: (RT1330 13HP Export - BEFORE SERIAL NO. 00119)

$20.99

$

Usually ships in 2-12 days

0

32

Snapper 1718981SM

SWITCH, Seat, Gray Switch, Black Retainer

Note: (RT1330 13HP Export - AFTER SERIAL NO. 00118)

$21.99

$

In Stock, only 1 left!

0

33

Snapper 1722887SM

SWITCH, PTO, Push/Pull

$33.99

$

In Stock, Qty 20+

0

34

Snapper 1726667SM

WIRE HARNESS, Clutch

$37.99

$

Usually ships in 2-12 days

0

35

Snapper 1718946SM

HARNESS, Wiring (No Reverse Mowing Option)

$

$

Not available

35

Snapper 1726654SM

HARNESS, Wiring (With Reverse Mowing Option)

$117.99

$

Usually ships in 2-12 days

0

36

Snapper 1686734SM

IGNITION KEY SWITCH ASSEMBLY

$32.99

$

In Stock, Qty 20+

0

37

Snapper 1734025SM

WIRING ASSEMBLY, All Conditions Shutdown

Note: (CE/Export)

$14.99

$

In Stock, only 1 left!

0

38

Snapper 2823341SM

CAPSCREW, Hex head 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

39

Snapper 2820426SM

WASHER, Lock, External Tooth, 5/16

$4.49

$

In Stock, only 1 left!

0

40

Snapper 1612103SM

TUBE, Vent (Early Models Only)

$5.49

$

Usually ships in 2-12 days

0

41

Snapper 1704873SM

CLAMP, Wire, 5/16 Diameter

$4.49

$

In Stock, Qty 20+

0

42

Snapper 1676648SM

GROMMET (11 HP 5-Speed Models Only)

$3.99

$

Usually ships in 2-12 days

0

43

Snapper 1718949SM

WIRE ASSEMBLY, Neutral Switch (11 HP Coronet Only)

$10.99

$

Usually ships in 2-12 days

0

44

Snapper 1715956SM

CLIP (14 HP Hydro Qty=1)

$4.99

$

Usually ships in 2-12 days

0

45

Snapper 1726557SM

KEY, RMO Module, Plastic

$5.49

$

In Stock, Qty 20+

0
