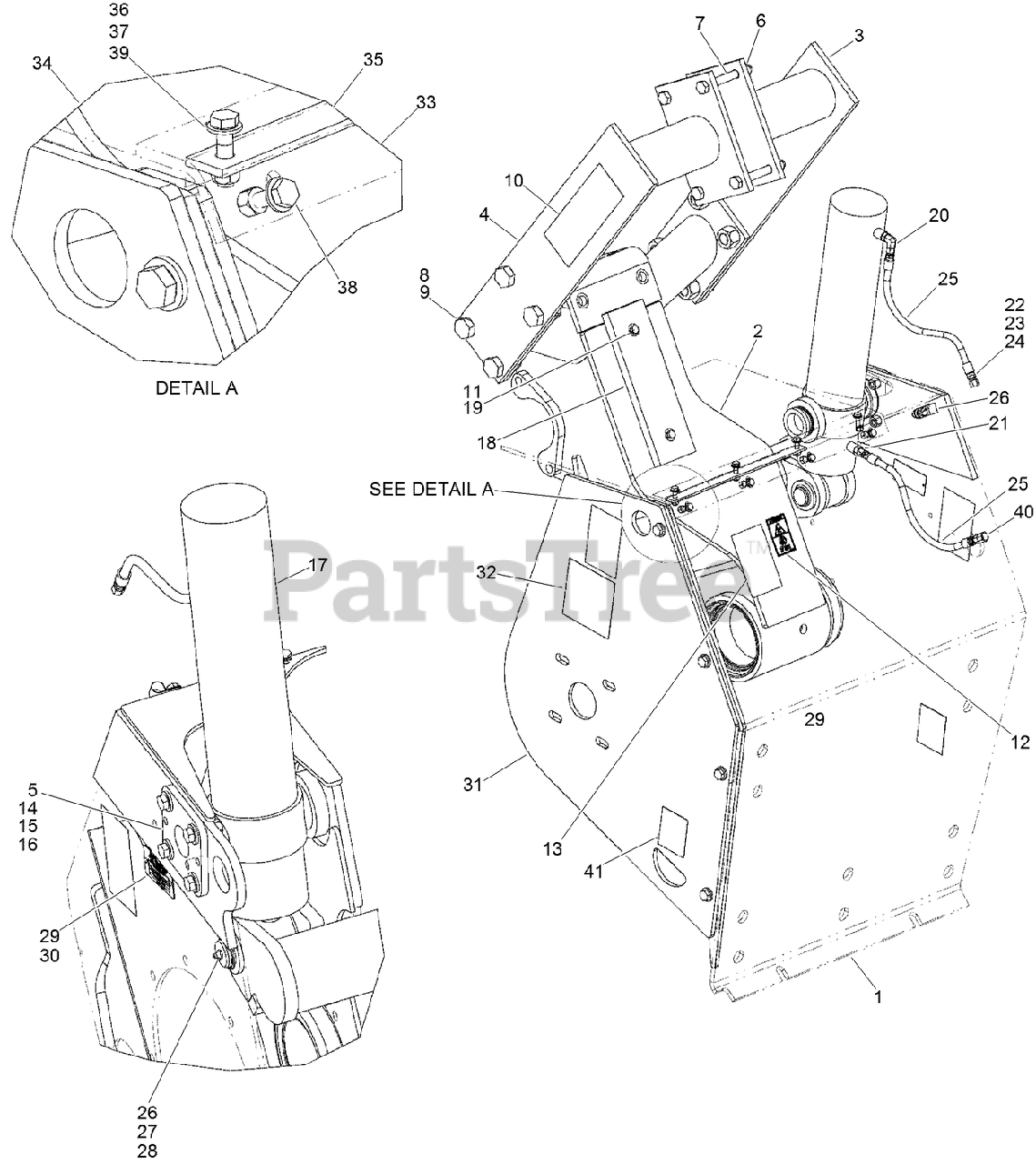

RT 1200 - Toro Riding Trencher Traction Unit (2010) TRENCHER FRAME ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

TRENCHER FRAME ASSEMBLY Parts Diagram

  • Title

Toro AU119096

ASSEMBLY - Trencher Frame

Note: Not illustrated

$

$

Not available

1

Toro AU116465A1

WELDMENT - Trencher Frame

$

$

Not available

2

Toro AU111542

WELDMENT - Boom Attach
(Superseded to AU111542-03)

$7116.99

$

Usually ships in 3-6 days

0

3

Toro AUH672872

WELDMENT - Crumber Mounting
(Superseded to 127-1805)

$

$

Not available

4

Toro AUH672871

WELDMENT - Crumber Mounting
(Superseded to 127-1806)

$

$

Not available

5

Toro AU123494A1

PIVOT BLOCK ASM

$

$

Not available

6

Toro AU232-41110

NUT-LOCK, HEX

$1.49

$

Usually ships in 3-6 days

0

7

Toro AU426-1080

BOLT

$6.99

$

Usually ships in 3-6 days

0

8

Toro AU426-1632

BOLT

$16.99

$

Usually ships in 3-6 days

0

9

Toro AU232-41116

NUT-HEX

$5.99

$

Usually ships in 3-6 days

0

10

Toro AU419475A1

DECAL-Danger, Trencher Entanglement Hazard

$

$

Not available

11

Toro AU224-2246

NUT-SQUARE

$0.99

$

Usually ships in 3-6 days

0

12

Toro AU110578

DECAL-Warning, Call Before Digging

$16.99

$

Usually ships in 3-6 days

0

13

Toro AU419471A1

DECAL-Danger, Trencher Entanglement Hazard

$37.99

$

Usually ships in 3-6 days

0

14

Toro AUH274894

WASHER

$2.49

$

Usually ships in 3-6 days

0

15

Toro AU426-824

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

16

Toro AU232-4118

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

17

Toro AU118288

CYLINDER - Boom Lift (4 inch)

$3825.99

$

Usually ships in 3-6 days

0

18

Toro AUH434547

STRIP - Wear, Long
(Superseded to AUH434547-03)

$241.99

$

Usually ships in 3-6 days

0

19

Toro AU426-612

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

20

Toro AU218-5105

ELBOW-90 DEG (ADJUSTABLE 37 DEG)

$3.99

$

Usually ships in 3-6 days

0

21

Toro AU218-5057

CONNECTOR-Str Thd 3/8, 37FL-ORB 3/8

$4.49

$

Usually ships in 3-6 days

0

22

Toro AU515-23159

CLAMP

$1.49

$

Usually ships in 3-6 days

0

23

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

24

Toro AU231-5146

NUT-Serr Flg 3/8-16 UNC GR5 ZND
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

25

Toro AU119666A1

HOSE-Trencher Lift

$137.99

$

Usually ships in 3-6 days

0

26

Toro AU221253A1

PIN-PIVOT

$236.99

$

Usually ships in 3-6 days

0

27

Toro AUD25279

RING

$20.99

$

Usually ships in 3-6 days

0

28

Toro AU219-1

FITTING-Lube 1/8-27 Dryseal PTF
(Superseded to 302-2)

$2.49

$

In Stock, only 2 left!

0

29

Toro AU100572

PLATE - Serial Number

$

$

Currently unavailable

30

Toro AU104193

TACK-FASTENER, STEEL

$2.49

$

Usually ships in 3-6 days

0

31

Toro AUH674660

WELDMENT - Bearing Support Plate
(Superseded to 127-1804)

$

$

Not available

32

Toro AU115196

DECAL-Planetary Oil / Lube Lever

$

$

Not available

33

Toro AUH439324

ANGLE - Dirt Deflector Mounting

$68.99

$

Usually ships in 3-6 days

0

34

Toro AUH439325

DEFLECTOR-DIRT

$340.99

$

Usually ships in 3-6 days

0

35

Toro AUH439331

STRIP-DIRT DEFLECTOR

$

$

Not available

36

Toro AU496-11034

WASHER-FLAT
(Superseded to 94-6936)

$0.99

$

Usually ships in 3-6 days

0

37

Toro AU232-4115

NUT-HEX

$

$

Not available

38

Toro AU426-516

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

39

Toro AU426-520

BOLT-Hex, 5/16 NC x 1-1/4 inch
(Superseded to 322-47)

$2.49

$

In Stock, Qty 20+

0

40

Toro AU109671

ORIFICE - 0.047 Inline

$34.99

$

Usually ships in 3-6 days

0

41

Toro AU139728A1

DECAL-Tie Down

$1.49

$

Usually ships in 3-6 days

0
