RT 1200 - Toro Riding Trencher Traction Unit (2010) TRENCHER BOOM BRACKET MOUNTING ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

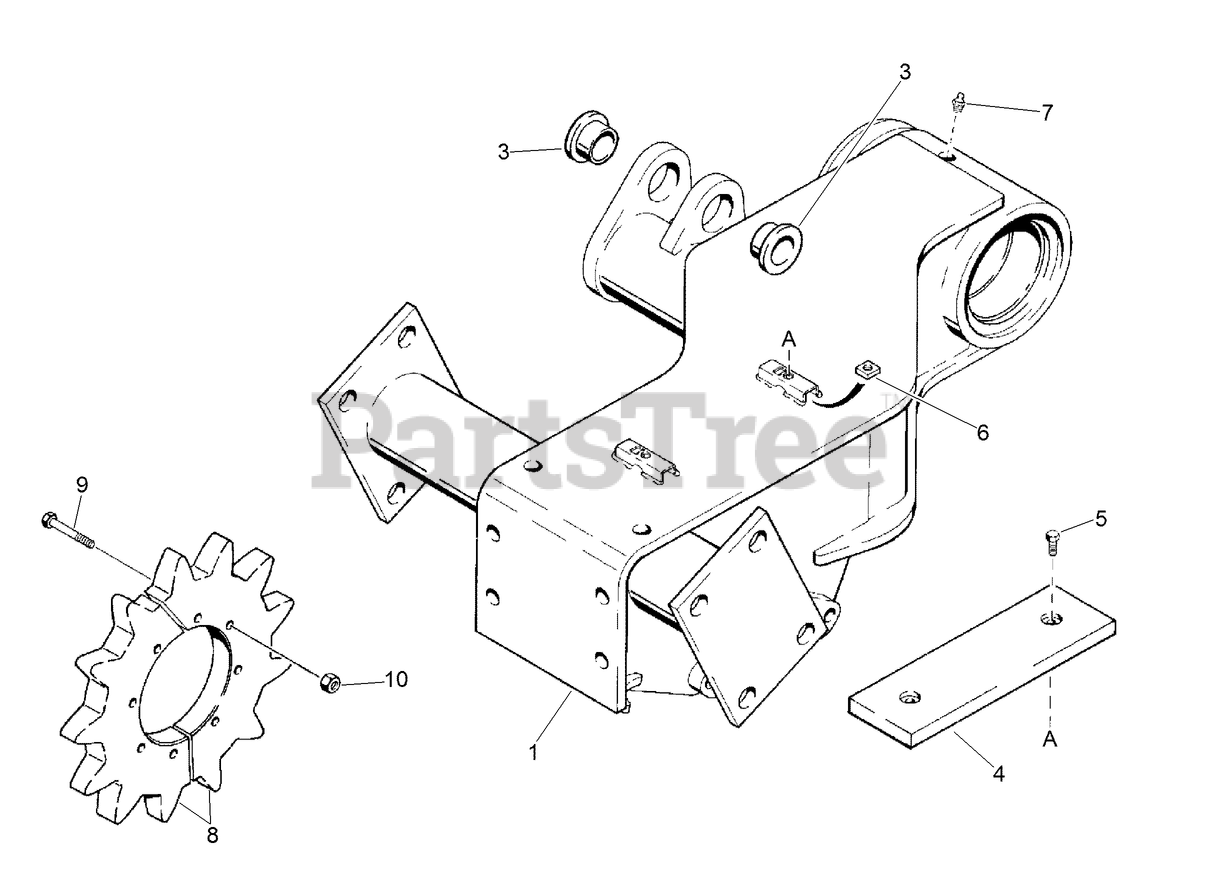

TRENCHER BOOM BRACKET MOUNTING ASSEMBLY Parts Diagram

  • Title

1

Toro AU111542

WELDMENT - Boom Attach
(Superseded to AU111542-03)

$7543.99

$

Usually ships in 3-6 days

0

3

Toro AUH433624

BUSHING-PIVOT, BUCKET

$70.99

$

Usually ships in 3-6 days

0

4

Toro AUH434547

STRIP - Wear, Long
(Superseded to AUH434547-03)

$256.99

$

Usually ships in 3-6 days

0

5

Toro AU426-612

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

6

Toro AU224-2246

NUT-SQUARE

$0.99

$

Usually ships in 3-6 days

0

7

Toro AU219-8

FITTING-Lube 1/4-28 Tpr SAE-LT .54 Long
(Superseded to 302-57)

$1.99

$

Usually ships in 3-6 days

0

8

Toro AU186255A1

SPROCKET - Split, 311 Chain
(Superseded to AU186255A1-03)

$

$

Not available

8

Toro AU186276A1

SPROCKET - Split, 408 Chain

$

$

Not available

9

Toro AU428-944

SCREW-HH

$

$

Not available

9

Toro AU428-948

BOLT - 9/16 x 3

$

$

Currently unavailable

10

Toro AU232-4619

NUT-HEX

$

$

Currently unavailable
