RT 1200 - Toro Riding Trencher Traction Unit (2010) TRANSMISSION OIL COOLER ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

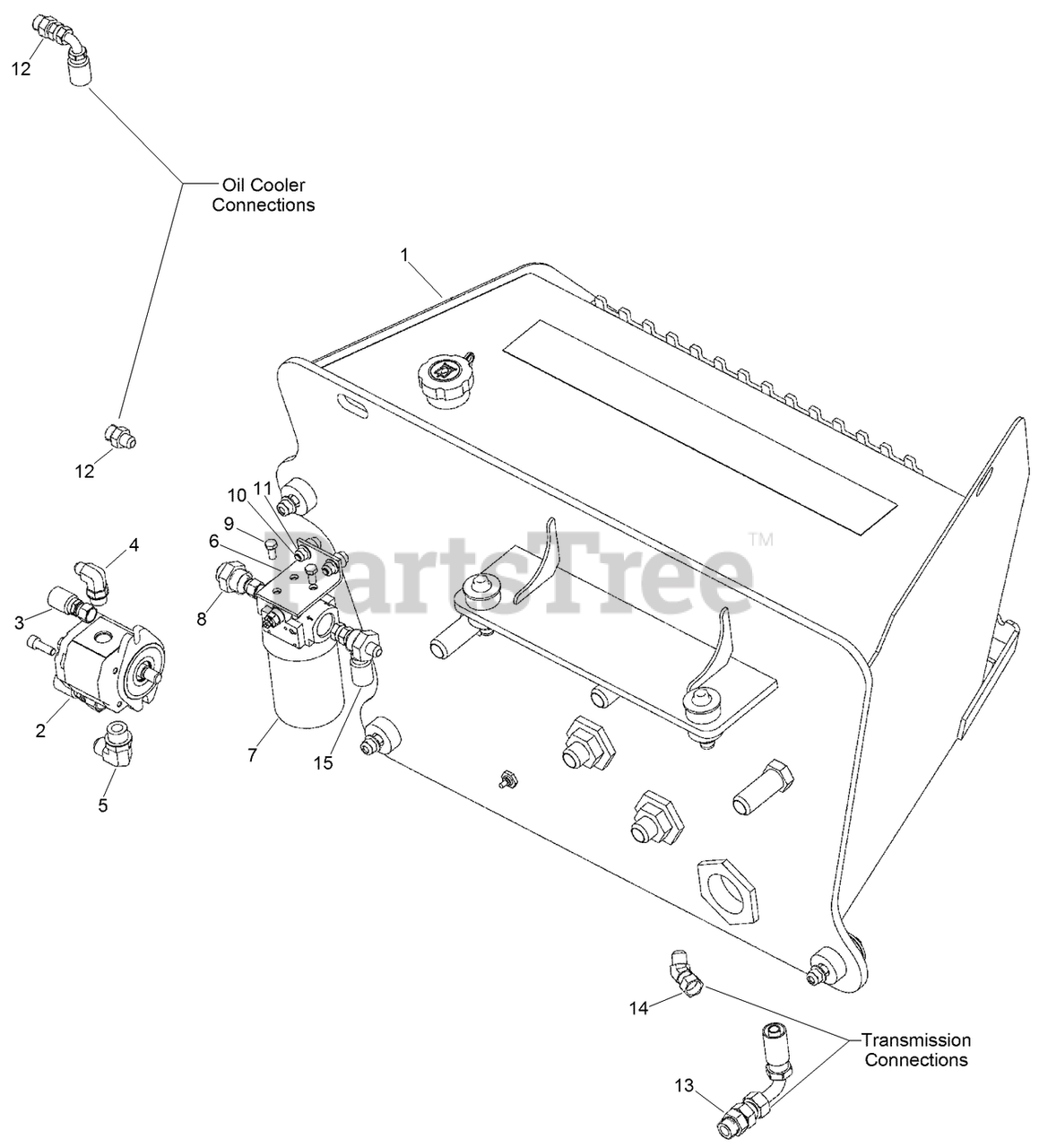

TRANSMISSION OIL COOLER ASSEMBLY Parts Diagram

  • Title

Toro AU118201

HYDRAULICS GROUP

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU118190

HYD TANK ASM

$

$

Currently unavailable

2

Toro AU121451

GEAR PUMP ASM

$

$

Currently unavailable

3

Toro AU862-10030

SCREW-HSH

$1.49

$

Usually ships in 3-6 days

0

4

Toro AU218-5121

ELBOW-90 Deg, 1/2 to 5/8

$21.99

$

Usually ships in 3-6 days

0

5

Toro AU218-5108

ELBOW-90 Adj 37FL 3/4 Tube

$35.99

$

Usually ships in 3-6 days

0

6

Toro AU111774A1

BRACKET-MOUNTING, FILTER

$64.99

$

Usually ships in 3-6 days

0

7

Toro AUD121629

OIL FILTER ASM

$244.99

$

Usually ships in 3-6 days

0

8

Toro AU218-5071

CONNECTOR ASM

$

$

Currently unavailable

9

Toro AU426-612

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

10

Toro AU100877

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

11

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

12

Toro AU218-5060

CONNECTOR - Str Thd 1/2, 37FL-ORB 5/8

$

$

Not available

13

Toro AU218-5064

FITTING-STRAIGHT

$11.99

$

Usually ships in 3-6 days

0

14

Toro AU218-5174

ELBOW - 45 Swivel, 37FL 5/8 Tube

$

$

Not available

15

Toro AU120448

KIT, Hydraulic Hoses

$

$

Currently unavailable
