RT 1200 - Toro Riding Trencher Traction Unit (2010) SPLIT SPROCKET AUGER DRIVE ASSEMBLY (311 CHAIN) Parts Diagram

Riding Trencher Traction Unit

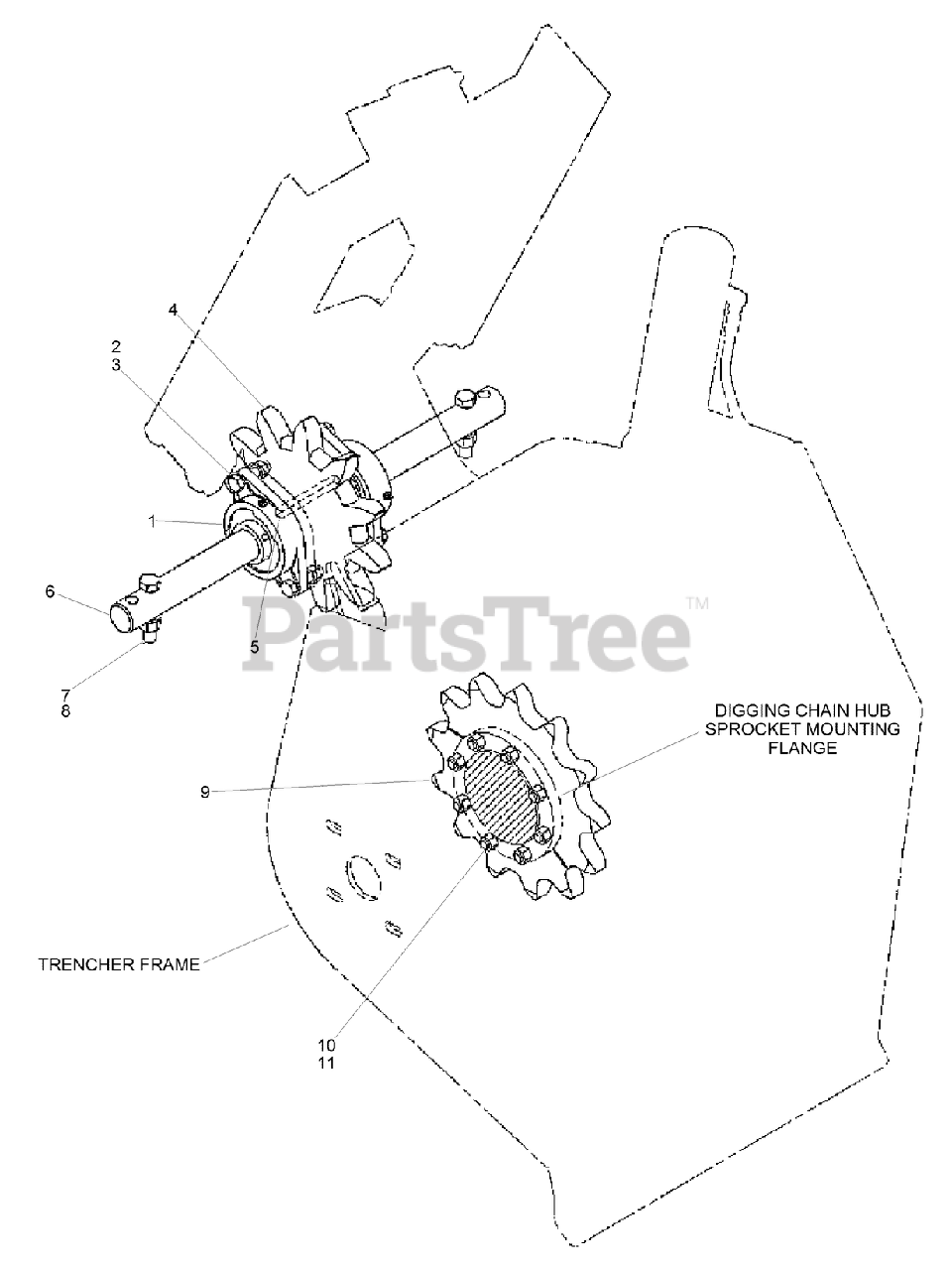

SPLIT SPROCKET AUGER DRIVE ASSEMBLY (311 CHAIN) Parts Diagram

  • Title

Toro AU194095A1

DRIVE - Auger, Split Sprocket, 311 Chain

Note: Not illustrated

$

$

Currently unavailable

1

Toro AUH759120

BEARING-BALL, 2-BOLT FLANGE (2 IN)

$

$

Currently unavailable

2

Toro AU426-1040

BOLT - 5/8 x 2-1/2
(Superseded to AU8HH81511)

$3.49

$

Usually ships in 3-6 days

0

3

Toro AU232-41110

NUT-LOCK, HEX

$1.49

$

Usually ships in 3-6 days

0

4

Toro AU186252A1

SPROCKET - Auger Drive, 311 Chain

$

$

Not available

5

Toro AUH433528

KEY-SQUARE

$

$

Currently unavailable

6

Toro AUH434597

SHAFT-AUGER

$

$

Not available

7

Toro AU426-1264

BOLT

$6.99

$

Usually ships in 3-6 days

0

8

Toro AU232-41112

NUT-Prev Trq 3/4 GRC CAD Direct

$2.49

$

Usually ships in 3-6 days

0

9

Toro AU186255A1

SPROCKET - Split, 311 Chain
(Superseded to AU186255A1-03)

$

$

Not available

10

Toro AU428-944

SCREW-HH

$

$

Not available

11

Toro AU232-4619

NUT-HEX

$

$

Currently unavailable
