RT 1200 - Toro Riding Trencher Traction Unit (2010) SEAT ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

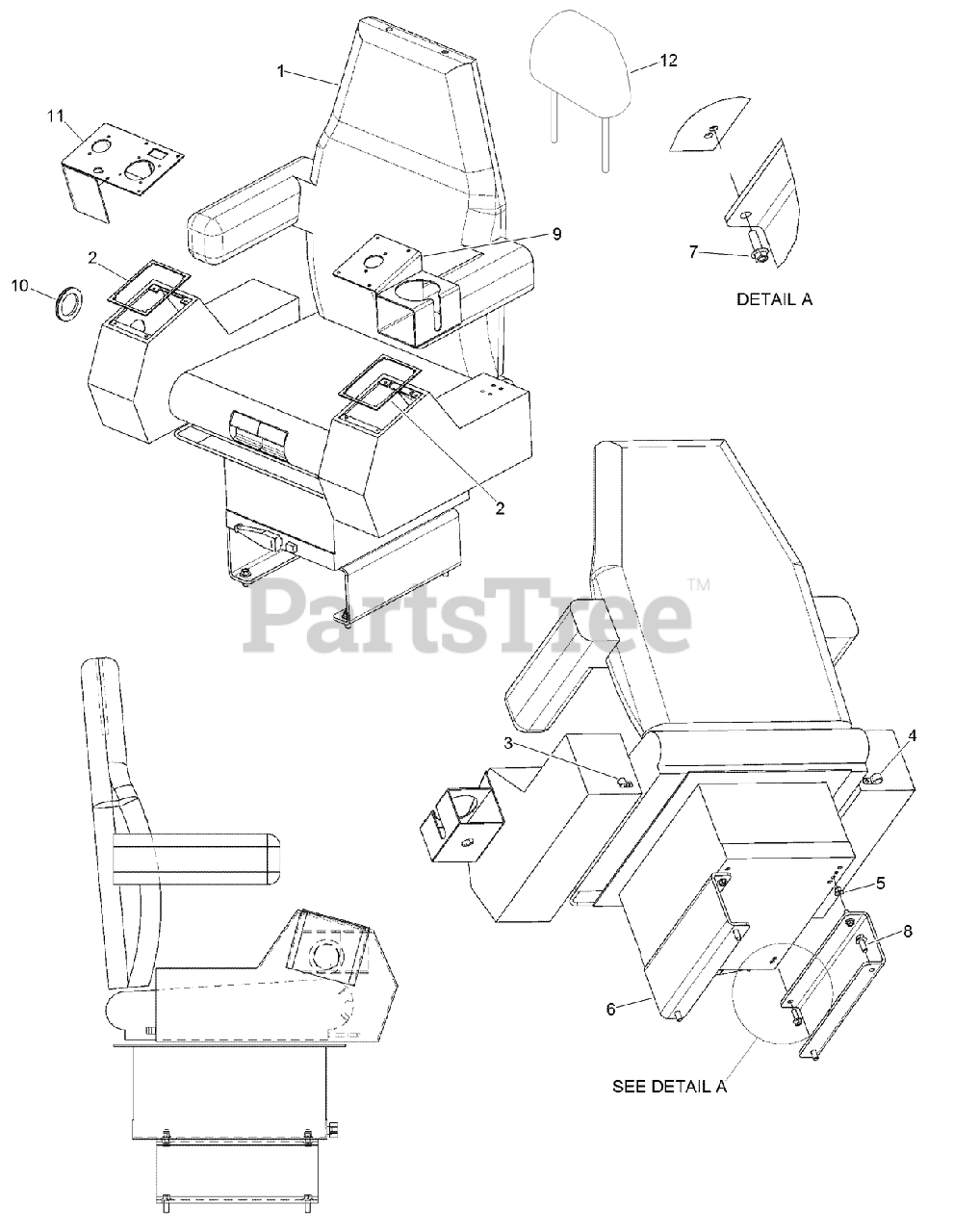

SEAT ASSEMBLY Parts Diagram

  • Title

Toro AU118589

SEAT ASM

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU107706

ARMCHAIR-OPERATOR

$

$

Currently unavailable

2

Toro AU108507

SPACER - Plate
(Superseded to AU108507-03)

$

$

Not available

3

Toro AU515-21127

CLAMP - Insul 12.7mm M6 Bolt, ZND

$

$

Currently unavailable

4

Toro AU515-21175

CLAMP - Insul 17.5mm M6 Bolt, ZND

$

$

Currently unavailable

5

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

6

Toro AU107510

RISER - Operator Seat
(Superseded to AU107510-03)

$

$

Not available

7

Toro AU100873

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

8

Toro AU100876

SCREW-FLANGE
(Superseded to 108-1531)

$1.99

$

Usually ships in 3-6 days

0

9

Toro AU112736

CUP HOLDER - Weldment

$

$

Not available

10

Toro AU112748

TRIM - Edge

$

$

Currently unavailable

11

Toro AU118588

WELDMENT - Joystick Mount

$

$

Currently unavailable

12

Toro AU108153

OPTION - Head Rest

$

$

Currently unavailable
