RT 1200 - Toro Riding Trencher Traction Unit (2010) ROCK SAW DIPPER CYLINDER ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

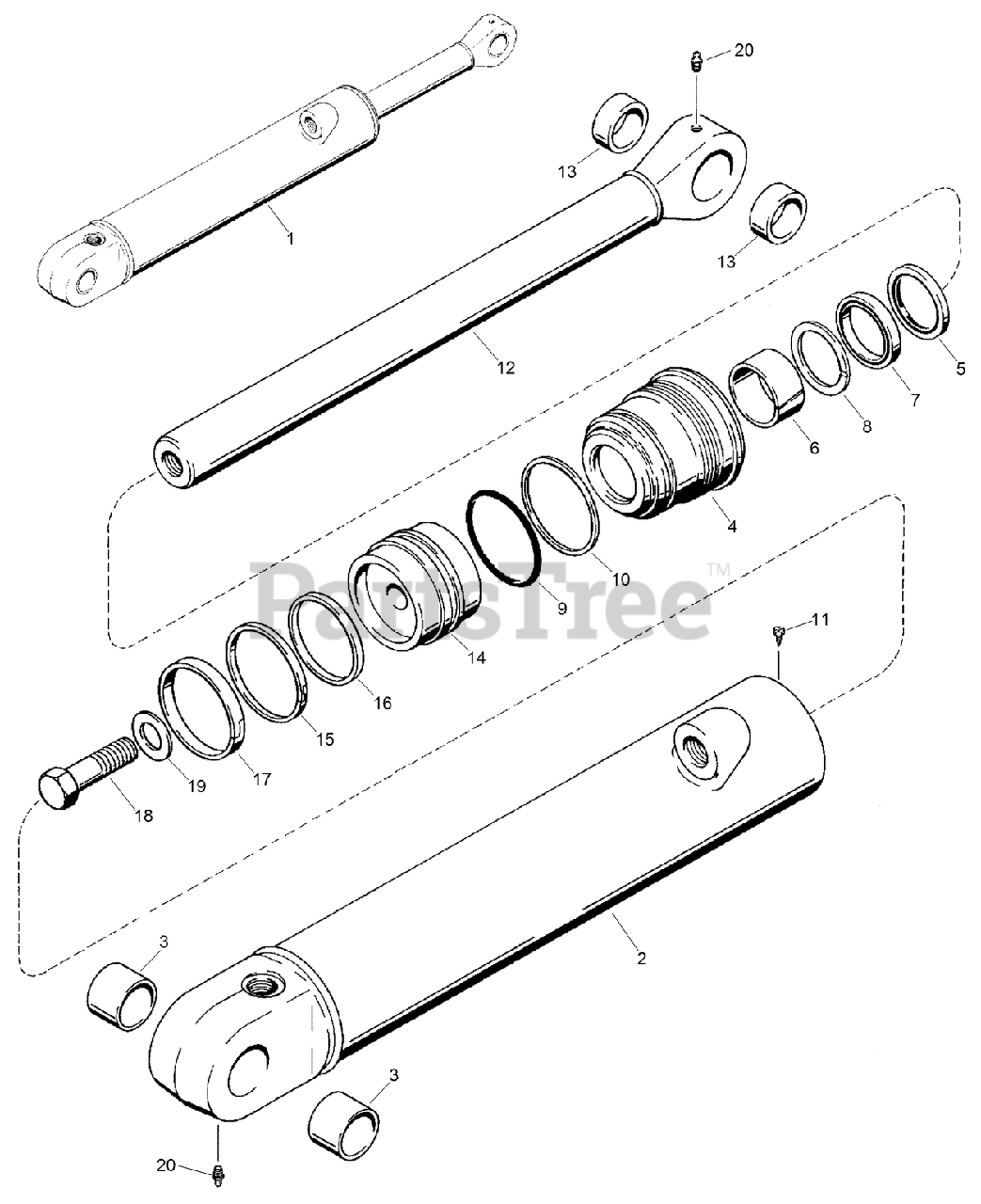

ROCK SAW DIPPER CYLINDER ASSEMBLY Parts Diagram

  • Title

1

Toro AU1346411C3

CYLINDER-76 (3) ID x 498 mm (19-5/8 inch) Stroke, Dipper
(Superseded to AU123706)

$

$

Not available

2

Toro AU1346412C1

TUBE ASM-Cylinder

$

$

Currently unavailable

3

Toro AUR10754

BUSHING-Cylinder Tube

$

$

Currently unavailable

Toro AU1542954C1

ASSEMBLY - Gland, Cylinder

Note: Not illustrated

$

$

Currently unavailable

4

GLAND - Cylinder

Note: Not serviced separately

$

$

Not available

5

Toro AUD95142

WIPER-ROD

$21.99

$

Usually ships in 3-6 days

0

6

Toro AUG102424

BEARING-ROD

$

$

Not available

7

Toro AUG107921

SEAL-U-Cup, Piston Rod, Wide, with O-Ring

$

$

Not available

7

Toro AUG100776

SEAL-U-Cup, Piston Rod, service option-severe heat or cold

$47.99

$

Usually ships in 3-6 days

0

8

Toro AUG109093

SEAL-Piston Rod, Narrow, Grooved

$20.99

$

Usually ships in 3-6 days

0

9

Toro AU238-5231

O-RING

$

$

Not available

10

Toro AUG109298

RING-BACKUP

$

$

Currently unavailable

11

Toro AUG109395

SCREW-SELF TAPPING

$

$

Currently unavailable

12

Toro AU1346414C3

ROD ASM-Piston, 38 mm (1-1/2 inch) diameter

$

$

Not available

13

Toro AU30634

BUSHING

$

$

Currently unavailable

14

Toro AU1543369C1

PISTON-Cylinder

$

$

Currently unavailable

15

Toro AUG102288

SEAL-Piston

$

$

Not available

16

Toro AUG100444

RING-LOADER

$

$

Currently unavailable

17

Toro AUG100449

RING-WEAR

$

$

Not available

18

Toro AU28-1640

BOLT - Hex Hd, 1 NF x 2-1/2 in, GR8
(Superseded to AU25974R1)

$

$

Not available

19

Toro AUG32303

WASHER-Flat, Special, Hardened

$

$

Currently unavailable

20

Toro AU219-1

FITTING-Lube 1/8-27 Dryseal PTF
(Superseded to 302-2)

$2.49

$

In Stock, only 2 left!

0

Toro AUG110050

KIT-seal, cylinder repair, includes all items with an asterisk
(Superseded to AU1543256C1)

Note: Not illustrated

$

$

Not available
