RT 1200 - Toro Riding Trencher Traction Unit (2010) RADIATOR ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

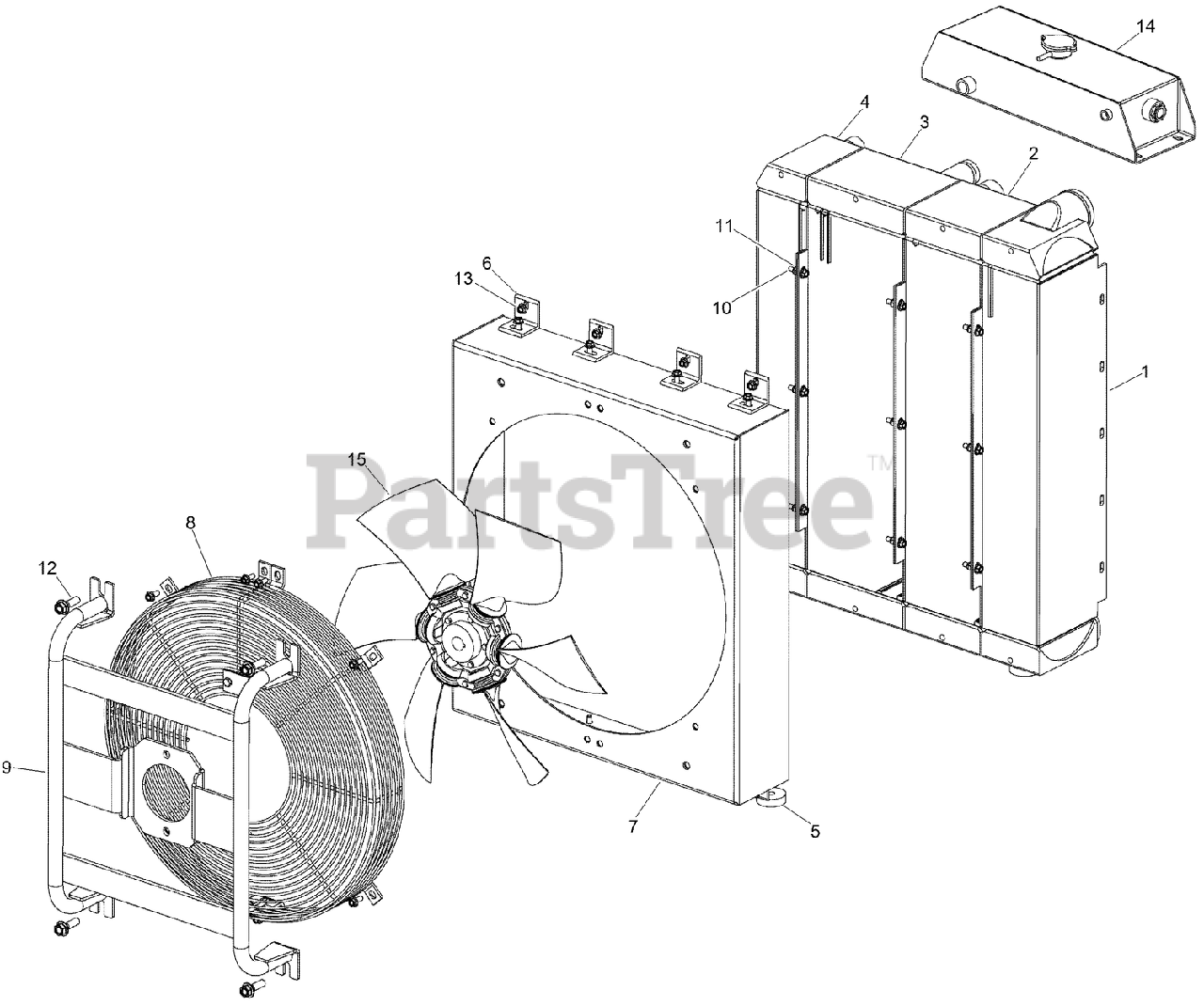

RADIATOR ASSEMBLY Parts Diagram

  • Title

Toro AU118976

ASSEMBLY - Engine Cooling Package

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU119102

COOLER - Charge Air

$

$

Currently unavailable

2

Toro AU119103

COOLER - Oil

$

$

Currently unavailable

3

Toro AU119098

COOLER - Radiator

$

$

Currently unavailable

4

Toro AU119101

COOLER - Transmission Oil

$

$

Currently unavailable

5

Toro AU119100

PLATE - Mounting

$

$

Currently unavailable

6

Toro AU119099

ANGLE - Bracket

$

$

Currently unavailable

7

Toro AU118977

WELDMENT - Fan Shroud

$

$

Currently unavailable

8

Toro AU118001

GUARD-FAN, 22 INCH

$

$

Currently unavailable

9

Toro AU118893

MOUNT - Motor, Cooling Package

$

$

Currently unavailable

10

Toro AU100398

SCREW, METRIC FLANGE FULL - M8 x 25

$2.49

$

Usually ships in 3-6 days

0

11

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

12

Toro AU100830

SCREW

$3.49

$

In Stock, Qty 7

0

13

Toro AU100872

SCREW, METRIC FLANGE w/BODY - M8 x 20

$1.49

$

Usually ships in 3-6 days

0

14

Toro AU118080

TANK-FILL/SURGE

$

$

Currently unavailable

15

Toro AU118000

OBS FAN-COOLING, 22IN
(Superseded to 130-7415)

$

$

Not available
