RT 1200 - Toro Riding Trencher Traction Unit (2010) P95 PLOW ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

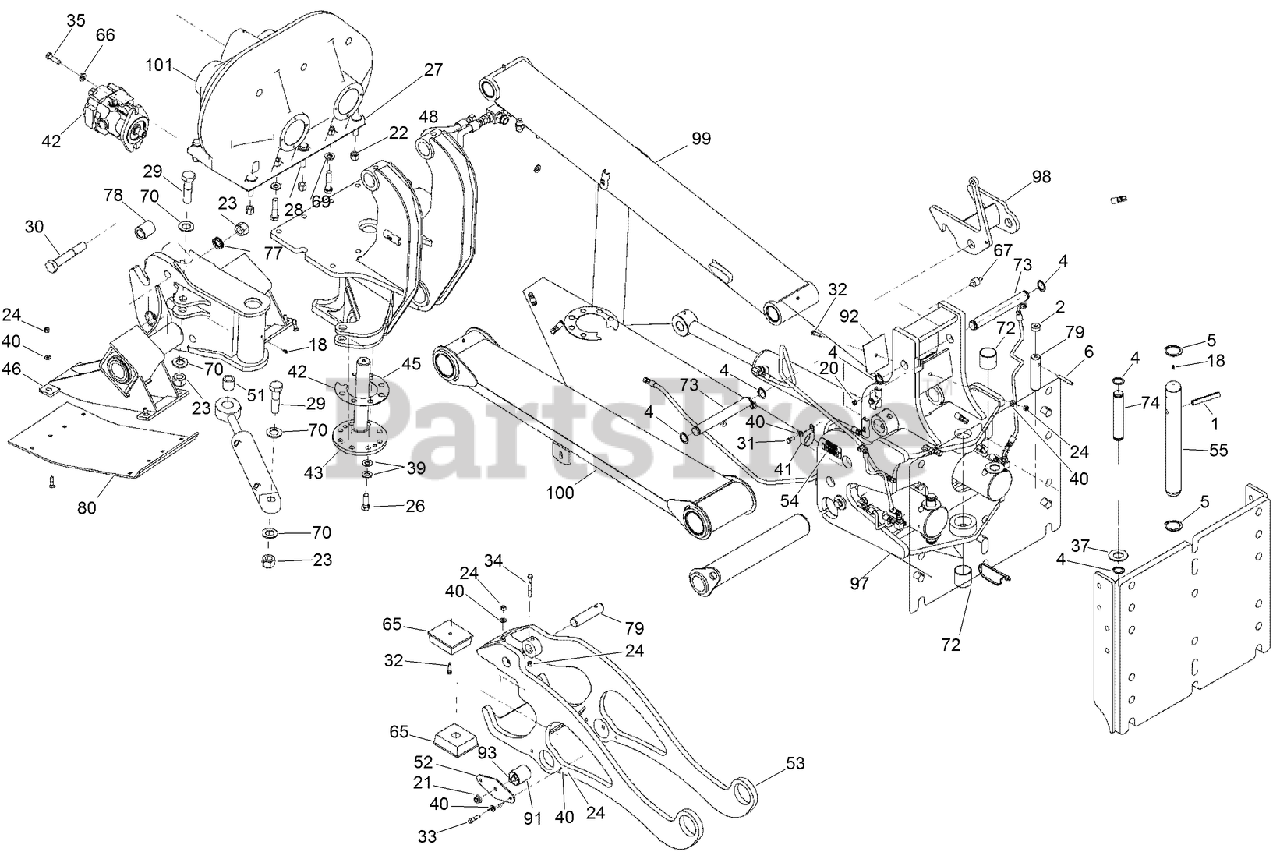

P95 PLOW ASSEMBLY Parts Diagram

  • Title

Toro AUH833229

PLOW - Basic, P95

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU38-34064

PIN-SPIRAL

$

$

Currently unavailable

2

Toro AU41-1020

PLUG-FREEZE

$5.49

$

Usually ships in 3-6 days

0

3

Toro AU91-203003-12-16S

ADAPTER-Tee, ORB / JIC

Note: Not illustrated

$

$

Not available

4

Toro AU103-16125

RING-RETAINING
(Superseded to 32151-77)

$4.99

$

Usually ships in 3-6 days

0

5

Toro AU103-16200

RING-RETAINING, EXTERNAL

$4.99

$

Usually ships in 3-6 days

0

6

Toro AU138-2068

PIN-ROLL

$

$

Currently unavailable

10

Toro AU218-5121

ELBOW-90 Deg, 1/2 to 5/8

Note: Not illustrated

$21.99

$

Usually ships in 3-6 days

0

11

Toro AU218-5128

ELBOW-90 Adj 37FL, 3/8 x 1/2 Tube
(Superseded to 353-537)

Note: Not illustrated

$12.99

$

Usually ships in 3-6 days

0

12

Toro AU218-5172

FITTING-ELBOW, 45 DEG

Note: Not illustrated

$14.99

$

Usually ships in 3-6 days

0

13

Toro AU218-5174

ELBOW - 45 Swivel, 37FL 5/8 Tube

Note: Not illustrated

$

$

Not available

14

Toro AU218-5175

ELBOW-45 Deg 12MJ x 12FJ

Note: Not illustrated

$

$

Not available

15

Toro AU218-5281

FITTING-ELBOW, 90 DEG

Note: Not illustrated

$32.99

$

Usually ships in 3-6 days

0

16

Toro AU218-5382

ELBOW-SWIVEL, 90 DEG

Note: Not illustrated

$61.99

$

Usually ships in 3-6 days

0

17

Toro AU218-5412

TEE-SWIVEL

Note: Not illustrated

$

$

Currently unavailable

7

Toro AU218-5062

CONNECTOR-Str Thd 5/8, 37FL-ORB 5/8

Note: Not illustrated

$7.99

$

Usually ships in 3-6 days

0

8

Toro AU218-5105

ELBOW-90 DEG (ADJUSTABLE 37 DEG)

Note: Not illustrated

$3.99

$

Usually ships in 3-6 days

0

9

Toro AU218-5108

ELBOW-90 Adj 37FL 3/4 Tube

Note: Not illustrated

$35.99

$

Usually ships in 3-6 days

0

18

Toro AU219-8

FITTING-Lube 1/4-28 Tpr SAE-LT .54 Long
(Superseded to 302-57)

$1.99

$

Usually ships in 3-6 days

0

19

Toro AU224-2246

NUT-SQUARE

Note: Not illustrated

$0.99

$

Usually ships in 3-6 days

0

20

Toro AU231-5145

NUT-Hex Serrated Flange, 5/16 inch NC
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

21

Toro AU231-5148

NUT-hex serrated flange, 1/2 inch NC
(Superseded to 32128-49)

$1.99

$

In Stock, Qty 20+

0

22

Toro AU232-41110

NUT-LOCK, HEX

$1.49

$

Usually ships in 3-6 days

0

23

Toro AU232-41116

NUT-HEX

$5.99

$

Usually ships in 3-6 days

0

24

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

25

Toro AU419-2624

SCREW-PLOW

Note: Not illustrated

$

$

Not available

26

Toro AU426-1028

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

27

Toro AU426-1044

BOLT-hex, 5/8 NC x 2-3/4 inch, grade 8
(Superseded to 110-4614)

$5.99

$

Usually ships in 3-6 days

0

28

Toro AU426-1048

BOLT - Hex Hd 0.625 x 3.00 GR8 ZND
(Superseded to 104-5895)

$12.99

$

Usually ships in 3-6 days

0

29

Toro AU426-1660

BOLT-HH

$

$

Not available

30

Toro AU426-1696

BOLT-HH

$

$

Not available

31

Toro AU426-612

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

32

Toro AU426-620

BOLT
(Superseded to 323-44)

$5.49

$

In Stock, Qty 11

0

33

Toro AU426-624

BOLT-hex, 3/8 NC x 1-1/2 inch
(Superseded to 323-43)

$0.99

$

Usually ships in 3-6 days

0

34

Toro AU426-648

BOLT-hex, 3/8 NC x 3 inch

$1.49

$

Usually ships in 3-6 days

0

35

Toro AU426-828

BOLT-Hex Hd 1/2 x 1-3/4 GR5 ZND
(Superseded to 121-1524)

$3.49

$

Usually ships in 3-6 days

0

36

Toro AU492-11062

WASHER - Spring Lock Reg 0.625 in ZND

Note: Not illustrated

$0.99

$

Usually ships in 3-6 days

0

37

Toro AU495-81209

WASHER-FLAT

$

$

Not available

38

Toro AU495-81259

WASHER-FLAT

Note: Not illustrated

$

$

Not available

39

Toro AU496-11066

WASHER - 0.656 x 1.312 x 0.095 in CST ZND

$

$

Currently unavailable

40

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

41

Toro AU515-23444

CLAMP

$3.49

$

Usually ships in 3-6 days

0

42

Toro AU87430032

HYD MOTOR ASM

$

$

Not available

43

Toro AU104797A2

AXLE-PIVOT, BLADE MOUNTING

$

$

Not available

44

Toro AU104799A2

SHIM-PLOW PIVOT

Note: Not illustrated

$

$

Not available

45

Toro AU105866A2

SHIM-PLOW PIVOT (THICK)

$

$

Not available

46

Toro AU105966A1

BRACKET-plow blade mounting
(Superseded to AU105966A1-03)

$

$

Not available

47

Toro AU107330A1

TUBE ASM

Note: Not illustrated

$74.99

$

Usually ships in 3-6 days

0

48

Toro AU108915A3

WELDMENT - Frame, Shaker

$

$

Not available

49

Toro AU123872

CYLINDER-BLADE

Note: Not illustrated

$

$

Not available

50

Toro AU123872

CYLINDER-BLADE

Note: Not illustrated

$

$

Not available

51

Toro AU114879A1

TUBE-ROD END SPACER

$

$

Currently unavailable

52

Toro AU116158A1

PLATE-bumper mounting
(Superseded to AU116158A1-03)

$

$

Not available

53

Toro AU116328A1

CRADLE-plow lift
(Superseded to AU116328A1-03)

$

$

Not available

54

Toro AU100572

PLATE - Serial Number

$

$

Currently unavailable

55

Toro AU101824

PIN - Plow Swing

$

$

Currently unavailable

56

Toro AU104193

TACK-FASTENER, STEEL

Note: Not illustrated

$2.49

$

Usually ships in 3-6 days

0

57

Toro AU106510

BRACKET - P95 Motor Mount

Note: Not illustrated

$

$

Currently unavailable

58

Toro AU113437

SPACER-PIN FLAG

Note: Not illustrated

$

$

Currently unavailable

59

Toro AU117872

WELDMENT - Mounting, Plow

Note: Not illustrated

$

$

Not available

60

Toro AU121737

CYLINDER-PLOW LIFT

Note: Not illustrated

$

$

Not available

61

Toro AU121737

CYLINDER-PLOW LIFT

Note: Not illustrated

$

$

Not available

62

Toro AU123308

PIN-FLAGGED

Note: Not illustrated

$

$

Currently unavailable

63

Toro AUD120679

CLAMP-TUBE

Note: Not illustrated

$8.49

$

Usually ships in 3-6 days

0

64

Toro AUD131789

SLEEVE - Hose Retaining, Protective, Hose

Note: Not illustrated

$7.99

$

Usually ships in 3-6 days

0

65

Toro AUD90990

BUMPER
(Superseded to 136-3998)

$136.99

$

Usually ships in 3-6 days

0

66

Toro AUH274894

WASHER

$2.49

$

Usually ships in 3-6 days

0

67

Toro AUH359216

MOUNT-RADIATOR

$33.99

$

Usually ships in 3-6 days

0

68

Toro AUH362418

ASSEMBLY - Hose

Note: Not illustrated

$120.99

$

Usually ships in 3-6 days

0

69

Toro AUH426809

WASHER-FLAT

$24.99

$

Usually ships in 3-6 days

0

70

Toro AUH426833

WASHER

$9.99

$

Usually ships in 3-6 days

0

71

Toro AUH428623

TEE-SPECIAL

Note: Not illustrated

$

$

Currently unavailable

72

Toro AUH433644

BEARING-PIVOT

$

$

Not available

73

Toro AUH434493

PIN-PLOW

$

$

Currently unavailable

74

Toro AU434801

PIN - Plow Reel Carrier

$

$

Currently unavailable

75

Toro AUH435080

ASSEMBLY - Hose

Note: Not illustrated

$

$

Currently unavailable

76

Toro AUH435080

ASSEMBLY - Hose

Note: Not illustrated

$

$

Currently unavailable

77

Toro AUH435357

WASHER-LOCK

$

$

Currently unavailable

78

Toro AUH435475

TUBE-SPACER, SOD CUTTER

$

$

Not available

79

Toro AUH436865

PIN-ROD

$

$

Currently unavailable

80

Toro AUH437946

PLATE-skid shoe, 12 inch wide
(Superseded to AUH437946-03)

$

$

Not available

81

Toro AUH437953

HOSE-Trencher Motor Flush

Note: Not illustrated

$124.99

$

Usually ships in 3-6 days

0

82

Toro AUH438000

HOSE ASSEMBLY - Hydraulic

Note: Not illustrated

$

$

Not available

83

Toro AUH438084

ASSEMBLY - Hose

Note: Not illustrated

$

$

Currently unavailable

84

Toro AUH438196

ASSEMBLY - Hose

Note: Not illustrated

$

$

Currently unavailable

85

Toro AUH438196

ASSEMBLY - Hose

Note: Not illustrated

$

$

Currently unavailable

86

Toro AUH438198

ASSEMBLY - Hose

Note: Not illustrated

$

$

Currently unavailable

87

Toro AUH438199

FITTING

Note: Not illustrated

$

$

Currently unavailable

88

Toro AUH438201

ASSEMBLY - Hydraulic Hose

Note: Not illustrated

$

$

Currently unavailable

89

Toro AUH438203

SLEEVE - Hose Protector

Note: Not illustrated

$

$

Currently unavailable

90

Toro AUH438500

HOSE PROTECTOR

Note: Not illustrated

$

$

Currently unavailable

91

Toro AUH438533

MOUNT-ISOLATOR

$

$

Currently unavailable

92

Toro AUH438536

SHIM-BUMPER

$

$

Currently unavailable

93

Toro AUH438537

STUD

$

$

Currently unavailable

94

Toro AUH439323

FITTING-Restrictor

Note: Not illustrated

$

$

Currently unavailable

95

Toro AUH673704

CYLINDER ASM-102 (4) ID x 152mm (6) stroke, plow swing
(Superseded to AU126558)

Note: Not illustrated

$

$

Not available

96

Toro AUH673704

CYLINDER ASM-102 (4) ID x 152mm (6) stroke, plow swing
(Superseded to AU126558)

Note: Not illustrated

$

$

Not available

97

Toro AUH673803

TOWER-plow swing

$

$

Currently unavailable

98

Toro AUH673804

LATCH-transport, plow lift arm

$

$

Currently unavailable

99

Toro AUH673808

ARM ASM-plow lift, upper

$

$

Currently unavailable

100

Toro AUH673809

ARM ASM-plow lift, lower
(Superseded to AUH673809-03)

$

$

Not available

101

Toro AUH674911

Gearbox

$

$

Not available

102

Toro AUL126503

VALVE-CHECK

Note: Not illustrated

$

$

Currently unavailable

103

Toro AUL18331

STRAP-TIE

Note: Not illustrated

$2.49

$

Usually ships in 3-6 days

0
