RT 1200 - Toro Riding Trencher Traction Unit (2010) OPERATOR STATION 2 ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

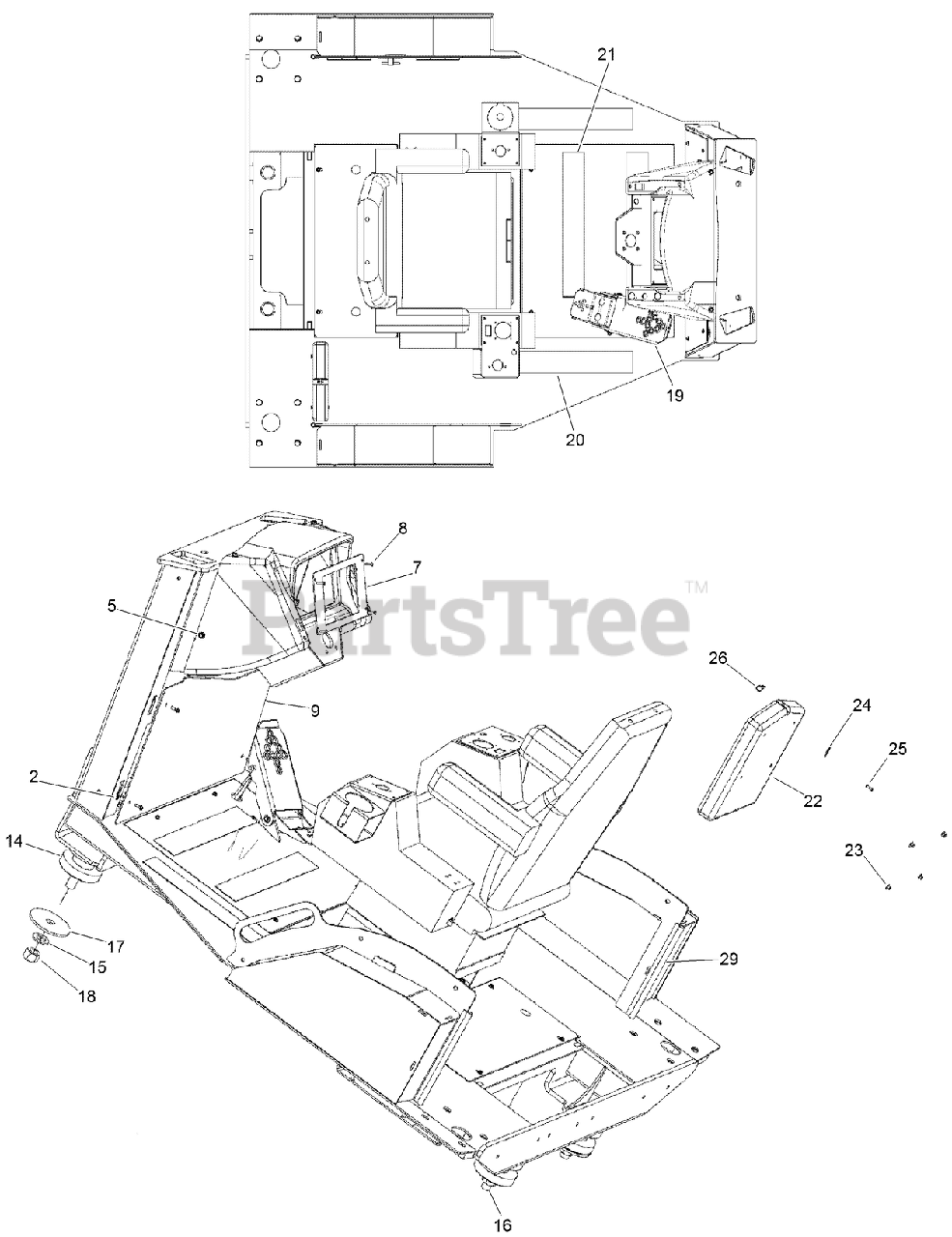

OPERATOR STATION 2 ASSEMBLY Parts Diagram

  • Title

Toro AU116867

ASSEMBLY - Operator Station

Note: Not illustrated

$

$

Currently unavailable

2

Toro AU100861

NUT-U

$6.49

$

Usually ships in 3-6 days

0

5

Toro AU100873

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

7

Toro AU103959

PLATE - Display Mount
(Superseded to AU103959-03)

$

$

Not available

8

Toro AU463-11012

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

9

Toro AU120822

PLATE - Kick Panel

$

$

Currently unavailable

14

Toro AU30-760-5018

MOUNT-RUBBER

$

$

Currently unavailable

15

Toro AUH426833

WASHER

$10.99

$

Usually ships in 3-6 days

0

16

Toro AU426-1696

BOLT-HH

$

$

Not available

17

Toro AU101521

WASHER-SNUBBER

$

$

Currently unavailable

18

Toro AU232-41116

NUT-HEX

$6.49

$

Usually ships in 3-6 days

0

19

Toro AU106377

PEDAL ASM

$

$

Currently unavailable

20

Toro AU105911

TAPE-ANTI SKID, UPPER STEP

$

$

Currently unavailable

21

Toro AU105912

TAPE-ANTI SKID, LOWER STEP

$

$

Currently unavailable

22

Toro AU103216

HOLDER-MANUAL, OPERATOR

$75.99

$

Usually ships in 3-6 days

0

23

Toro AU151-522

RIVET

$0.99

$

Usually ships in 3-6 days

0

24

Toro AUR46465

LANYARD

$24.99

$

Usually ships in 3-6 days

0

25

Toro AUR46463

POST-MANUAL

$1.99

$

Usually ships in 3-6 days

0

26

Toro AUR40745

STRAP-TIE, NYLON

$0.99

$

Usually ships in 3-6 days

0

29

Toro AU118602

SEAL-Hood

$

$

Currently unavailable
