RT 1200 - Toro Riding Trencher Traction Unit (2010) MAIN VAVLE ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

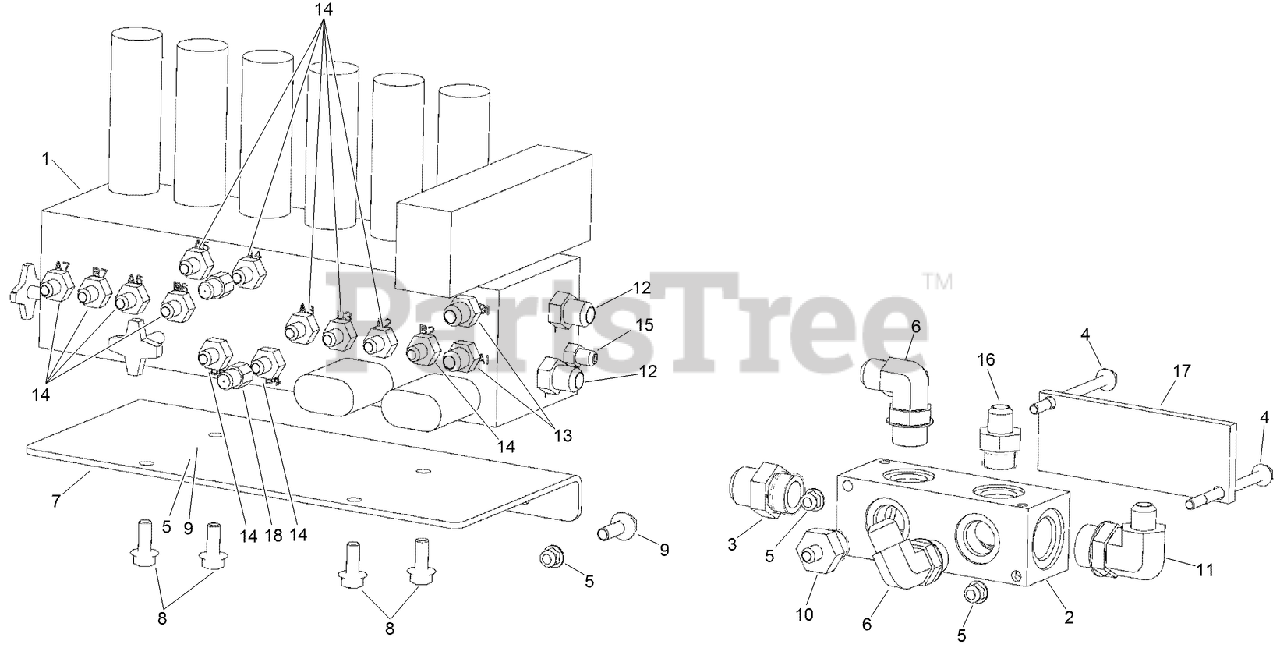

MAIN VAVLE ASSEMBLY Parts Diagram

  • Title

Toro AU118201

HYDRAULICS GROUP

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU115766

MANIFOLD - Main HIC Valve
(Superseded to 131-0421)

$

$

Not available

2

Toro AU106457

MANIFOLD ASM (HYD RETURN)

$

$

Currently unavailable

3

Toro AU218-5069

FITTING-STRAIGHT

$10.99

$

Usually ships in 3-6 days

0

4

Toro AU100329

SCREW, METRIC FLANGE w/BODY - M8 x 110

$17.99

$

Usually ships in 3-6 days

0

5

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

6

Toro AU218-5108

ELBOW-90 Adj 37FL 3/4 Tube

$35.99

$

Usually ships in 3-6 days

0

7

Toro AU121481

PLATE - Filter Mount

$

$

Currently unavailable

8

Toro AU100876

SCREW-FLANGE
(Superseded to 108-1531)

$1.99

$

Usually ships in 3-6 days

0

9

Toro AU100877

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

10

Toro AU218-5044

ADAPTER-STRAIGHT

$7.99

$

Usually ships in 3-6 days

0

11

Toro AU218-5130

ELBOW-90, ADJ

$120.99

$

Usually ships in 3-6 days

0

12

Toro AU218-5062

CONNECTOR-Str Thd 5/8, 37FL-ORB 5/8

$7.99

$

Usually ships in 3-6 days

0

13

Toro AU218-5059

CONNECTOR-Str Thd 1/2, 37FL-ORB 1/2

$4.99

$

Usually ships in 3-6 days

0

14

Toro AU218-5058

CONNECTOR

$6.49

$

Usually ships in 3-6 days

0

15

Toro AU218-5352

ADAPTER-STRAIGHT

$6.49

$

Usually ships in 3-6 days

0

16

Toro AU218-5063

FITTING-STRAIGHT

$14.99

$

Usually ships in 3-6 days

0

17

Toro AU120043

SPACER
(Superseded to AU120043-03)

$

$

Not available

18

Toro AU109671

ORIFICE - 0.047 Inline

$34.99

$

Usually ships in 3-6 days

0
