RT 1200 - Toro Riding Trencher Traction Unit (2010) FUEL TANK ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

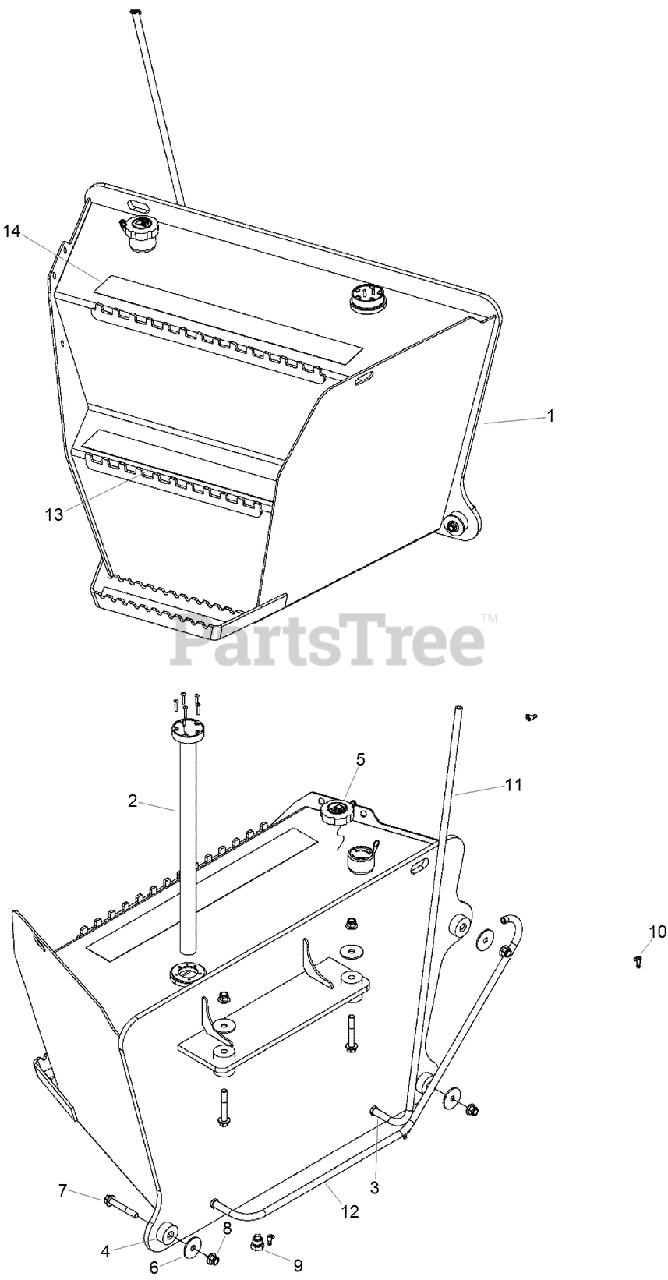

FUEL TANK ASSEMBLY Parts Diagram

  • Title

Toro AU118024

Tank Assy - Fuel

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU118025

Weldment - Fuel Tank

$

$

Currently unavailable

2

Toro AU21000893

SENDER-FUEL

$213.99

$

Usually ships in 3-6 days

0

3

Toro AU8TA60006

FITTING-STRAIGHT
(Superseded to 353-979)

$16.99

$

Usually ships in 3-6 days

0

4

Toro AU8NG28121

ISOLATOR-MOUNTING, UNIVERSAL

$

$

Currently unavailable

5

Toro AU102188

CAP-DIESEL FUEL W/ LOCK

$

$

Currently unavailable

6

Toro AU496-81018

WASHER-FLAT

$3.99

$

Usually ships in 3-6 days

0

7

Toro AU100353

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

8

Toro AU100528

NUT-HHF, LOCK

$3.49

$

In Stock, Qty 15

0

9

Toro AU119908

PLUG-HEX, MAGNETIC

$

$

Currently unavailable

10

Toro AU214-1704

CLAMP-Hose Type M #04

$2.99

$

Usually ships in 3-6 days

0

11

Toro AU109674A1

HOSE-Fuel Tank

$54.99

$

Usually ships in 3-6 days

0

12

Toro AU109674A1

HOSE-Fuel Tank

$54.99

$

Usually ships in 3-6 days

0

13

Toro AU105912

TAPE-ANTI SKID, LOWER STEP

$

$

Currently unavailable

14

Toro AUH433994

STRIP-ANTI SKID
(Superseded to AU651187)

$

$

Not available
