RT 1200 - Toro Riding Trencher Traction Unit (2010) ENGINE MOUNTING Parts Diagram

Riding Trencher Traction Unit

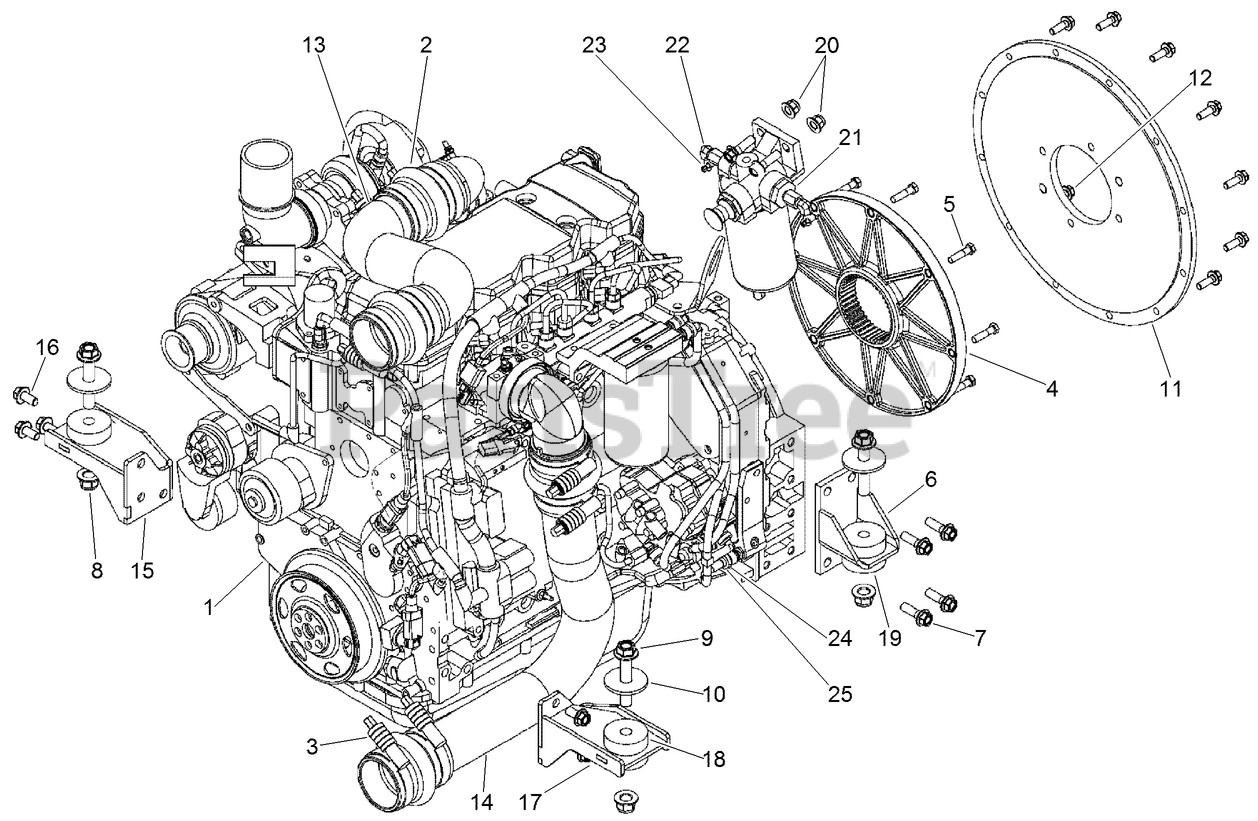

ENGINE MOUNTING Parts Diagram

  • Title

Toro AU116570

ENGINE ASSEMBLY

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU116124

ENGINE - 121 HP Cummins

$

$

Currently unavailable

2

Toro AU21000205

ADAPTER-HUMP

$

$

Currently unavailable

3

Toro AU21001153

CLAMP-TORQUE, CONSTANT

$

$

Currently unavailable

4

Toro AU8PD92006

COUPLING-DRIVE, NYLON

$

$

Currently unavailable

5

Toro AU426-624

BOLT-hex, 3/8 NC x 1-1/2 inch
(Superseded to 323-43)

$0.99

$

Usually ships in 3-6 days

0

6

Toro AU116622

MOUNT - Motor, Rear

$

$

Currently unavailable

7

Toro AU100830

SCREW

$3.49

$

In Stock, Qty 7

0

8

Toro AU100529

NUT-HHF

$7.49

$

Usually ships in 3-6 days

0

9

Toro AU100366

SCREW-FLANGE

$

$

Currently unavailable

10

Toro AU496-81025

WASHER

$28.99

$

Usually ships in 3-6 days

0

11

Toro AU360643A1

PLATE-MOUNTING, PUMP

$

$

Currently unavailable

12

Toro AU100877

SCREW-HH

$19.99

$

Usually ships in 3-6 days

0

13

Toro AU119091

PIPE - Charge Air

$

$

Currently unavailable

14

Toro AU119092

PIPE - Charge Air

$

$

Currently unavailable

15

Toro AU116623

WELDMENT - Engine Mount, LH Front

$

$

Currently unavailable

16

Toro AU100414

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

17

Toro AU116649

WELDMENT - Engine Mount, RH Front

$

$

Currently unavailable

18

Toro AU116661

MOUNT - Engine, Yellow Dot

$

$

Currently unavailable

19

Toro AU116662

ISOLATOR-WEAR PLATE, GREEN

$

$

Currently unavailable

20

Toro AU100528

NUT-HHF, LOCK

$3.49

$

In Stock, Qty 15

0

21

Toro AU120770

FITTING-REDUCER

$

$

Currently unavailable

22

Toro AU217-293

ELBOW - 90 Hose Stem, 3/8 ID x 174 NPTF

$17.99

$

Usually ships in 3-6 days

0

23

Toro AU214-1704

CLAMP-Hose Type M #04

$3.49

$

Usually ships in 3-6 days

0

24

Toro AU121717

SEAL-FITTING, FUEL

$

$

Currently unavailable

25

Toro AU121716

FITTING, FUEL HOSE BARB - M12 x 3/4 Hose ID

$

$

Currently unavailable
