RT 1200 - Toro Riding Trencher Traction Unit (2010) CRUMBER CYLINDER ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

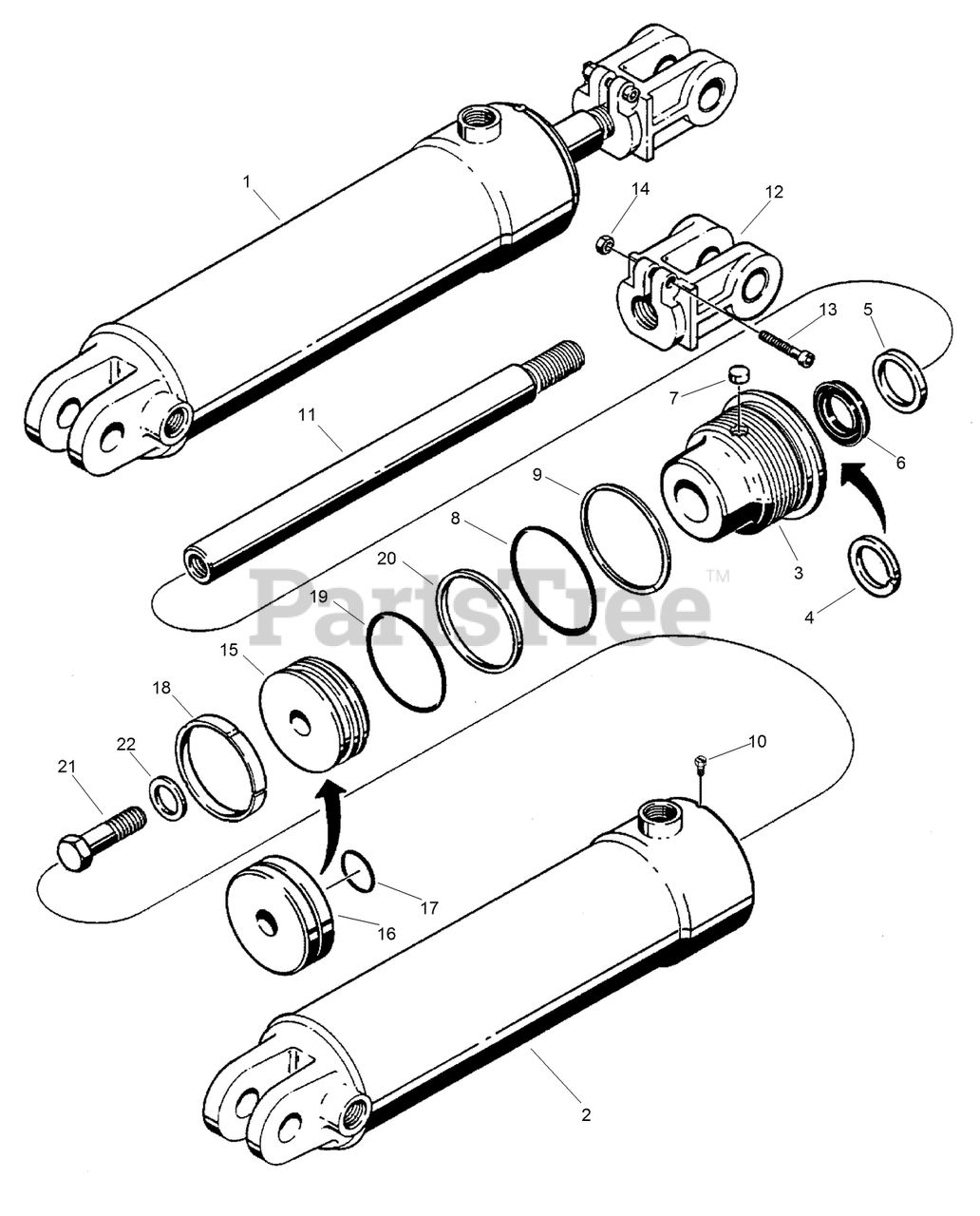

CRUMBER CYLINDER ASSEMBLY Parts Diagram

  • Title

1

Toro AUG34197

ASSEMBLY - Cylinder

$

$

Currently unavailable

2

Toro AUG34199

TUBE - Cylinder

$

$

Currently unavailable

Toro AU1543161C1

ASSEMBLY - Gland, Cylinder (Includes items 3 - 9)

Note: Not illustrated

$

$

Currently unavailable

3

GLAND - Cylinder

Note: Not serviced separately

$

$

Not available

Toro AU1543318C2

KIT - Seal (Includes items 4 - 6, 8, 9, 17 - 20)

Note: Not illustrated

$

$

Not available

4

Toro AUG109092

SEAL - Buffer (If used)

$

$

Currently unavailable

5

Toro AUD95141

SEAL - Wiper, Piston Rod

$

$

Not available

6

Toro AUG32034

RING - Piston Rod

$

$

Currently unavailable

7

Toro AU353-779

PLUG - Nylon (If used)

$

$

Currently unavailable

8

Toro AU238-5234

O-RING-3 ID x 1/8 inch wide, gland

$

$

Not available

9

Toro AUG32122

RING-backup, gland O-ring

$5.49

$

Usually ships in 3-6 days

0

10

Toro AUG109395

SCREW-SELF TAPPING

$

$

Currently unavailable

11

Toro AU113978A1

ROD

$

$

Not available

12

Toro AUG34450

CLEVIS - Adjustable, Piston Rod (Includes items 13 & 14)

$

$

Not available

13

Toro AU61-33828

BOLT - 3/8 x 1-3/4

$8.49

$

Usually ships in 3-6 days

0

14

Toro AU25-106

NUT - 3/8
(Superseded to AU425-106)

$0.99

$

Usually ships in 3-6 days

0

15

Toro AUG34202

PISTON - Double Groove (If used)
(Superseded to AUG104106)

$

$

Not available

16

Toro AUG104106

PISTON - Single Groove (If used)

$

$

Not available

17

Toro AU238-5026

O-RING - 1-1/4 x 1/16 (Used with item 16)

$

$

Not available

18

Toro AUG100449

RING-WEAR

$

$

Not available

19

Toro AU238-5230

O-RING - 2-1/2 ID x 1/8

$

$

Not available

20

Toro AUG32034

RING - Piston Rod

$

$

Currently unavailable

21

Toro AU28-1232

BOLT - 3/4 NF x 2; 8

$

$

Not available

22

Toro AUG32317

WASHER

$

$

Currently unavailable
