RT 1200 - Toro Riding Trencher Traction Unit (2010) CHASSIS, HOODS AND COVERS ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

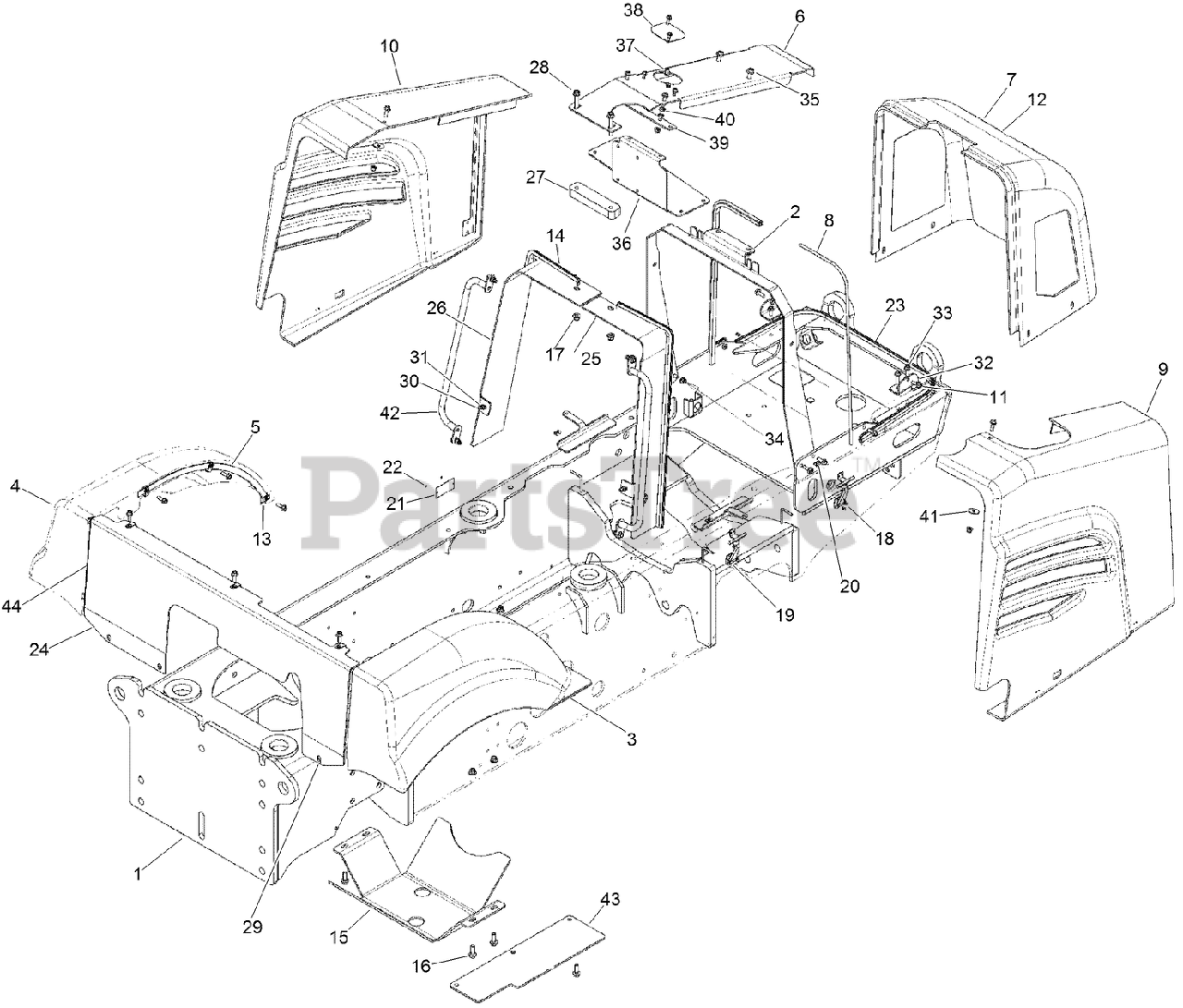

CHASSIS, HOODS AND COVERS ASSEMBLY Parts Diagram

  • Title

Toro AU116094

ASSEMBLY - Chassis, Hoods & Covers

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU116083

FRAME - Weldment, Chassis

$

$

Currently unavailable

2

Toro AU118820

PLATE - Upright

$

$

Currently unavailable

3

Toro AU118197

FENDER-RH

$

$

Currently unavailable

4

Toro AU118198

FENDER-LH

$

$

Currently unavailable

5

Toro AU118199

SHEET - Fender Support
(Superseded to AU118199-03)

$

$

Not available

6

Toro AU118991

PLATE - Hood Support

$

$

Currently unavailable

7

Toro AU117417

CLIP - Nose

$

$

Currently unavailable

8

Toro AU107223

SEAL - Hood, Front

$

$

Currently unavailable

9

Toro AU118804

COVER - Engine, RH, RT1200

$

$

Currently unavailable

10

Toro AU118805

COVER - Engine, LH, RT1200

$

$

Currently unavailable

11

Toro AU100877

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

12

Toro AU107880

MEDALLION - Astec Logo

$

$

Currently unavailable

13

Toro AU100863

NUT-U

$

$

Currently unavailable

14

Toro AU107224

SEAL - Hood

$

$

Currently unavailable

15

Toro AU107716

PLATE - Skid

$

$

Currently unavailable

16

Toro AU100416

SCREW-HFH

$3.99

$

Usually ships in 0 days

0

17

Toro AU100528

NUT-HHF, LOCK

$3.49

$

In Stock, Qty 15

0

18

Toro AUH672204

LATCH-DRAW, FLEXIBLE

$56.99

$

Usually ships in 3-6 days

0

19

Toro AU151-558

RIVET - Blind Brk Mdrl .187 x .450 in ZND
(Superseded to 3269-7)

$1.49

$

Usually ships in 3-6 days

0

20

Toro AU151-559

RIVET - Blind Brk Mdrl .187 x .700 in ZND

$

$

Currently unavailable

21

Toro AU100572

PLATE - Serial Number

$

$

Currently unavailable

22

Toro AU104193

TACK-FASTENER, STEEL

$2.49

$

Usually ships in 3-6 days

0

23

Toro AU112099

SEAL-BOTTOM, NOSE

$

$

Currently unavailable

24

Toro AU124404

PLATE - Rear Cover

$

$

Currently unavailable

25

Toro AU118644

PLATE - Console

$

$

Currently unavailable

26

Toro AU118648

PLATE - Console

$

$

Currently unavailable

27

Toro AU118662

PLATE - Spacer

$

$

Currently unavailable

28

Toro AU100353

SCREW-HHF

$6.99

$

Usually ships in 3-6 days

0

29

Toro AU101477

SCREW, METRIC FLANGE w/BODY-M12 x 30

$5.99

$

Usually ships in 3-6 days

0

30

Toro AU100398

SCREW, METRIC FLANGE FULL - M8 x 25

$2.49

$

Usually ships in 3-6 days

0

31

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

32

Toro AU119006

WELDMENT - Support

$

$

Currently unavailable

33

Toro AU100331

SCREW-HHF

$

$

Currently unavailable

34

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

35

Toro AU100830

SCREW

$3.49

$

In Stock, Qty 7

0

36

Toro AU119041

PLATE - Radiator Support

$

$

Currently unavailable

37

Toro AU100862

NUT-U

$4.99

$

Usually ships in 3-6 days

0

38

Toro AU119133

COVER - Radiator

$

$

Currently unavailable

39

Toro AU119134

PLATE - Hood Support

$

$

Currently unavailable

40

Toro AU349192A1

SPACER

$13.99

$

Usually ships in 3-6 days

0

41

Toro AU495-81143

WASHER - .406 x 1.50 x .119 in CST ZND

$

$

Currently unavailable

42

Toro AU120155

WELDMENT - Handle

$

$

Currently unavailable

43

Toro AU109540

ASSEMBLY - Skid Plate

$

$

Currently unavailable

44

Toro AU122083

PLATE - Fender Reinforcement
(Superseded to AU122083-03)

$

$

Not available
