RT 1200 - Toro Riding Trencher Traction Unit (2010) CATWALK ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

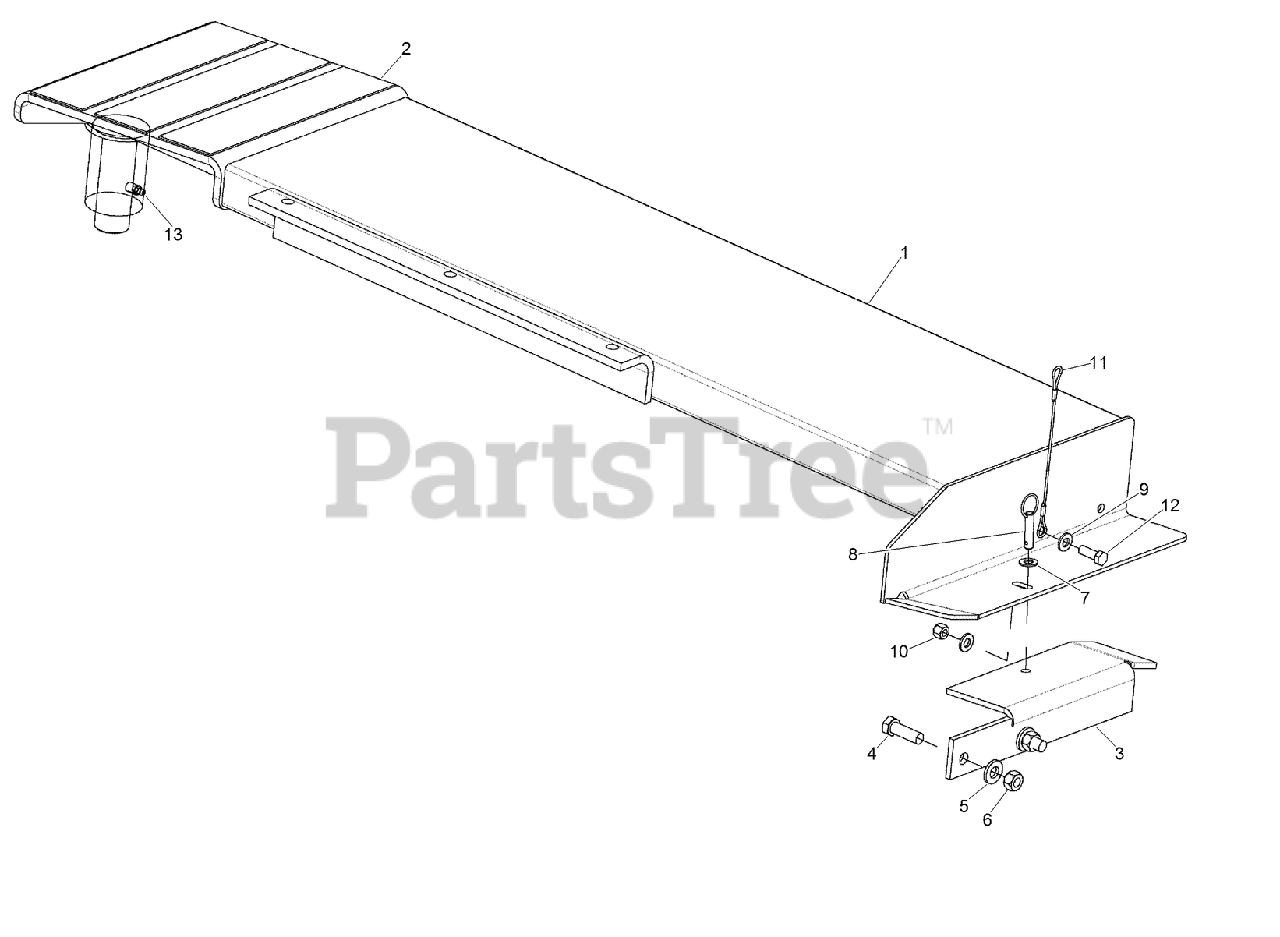

CATWALK ASSEMBLY Parts Diagram

  • Title

Toro AU106979

CATWALK ASM

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU114762

CATWALK - Backhoe Attachment

$

$

Currently unavailable

2

Toro AU105411

TAPE-ANTI SKID, CATWALK

$

$

Currently unavailable

3

Toro AUH434330

ANGLE - Walkway Support

$

$

Not available

4

Toro AU426-824

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

5

Toro AU496-21053

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

6

Toro AU230-4218

NUT-LOCK, HEX

$3.49

$

Usually ships in 3-6 days

0

7

Toro AU495-11041

WASHER-0.406 x 0.812 x 0.065 in CST ZND

$0.99

$

Usually ships in 3-6 days

0

8

Toro AUD94535

PIN-Cotterless

$14.99

$

Usually ships in 3-6 days

0

9

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

10

Toro AU230-4216

NUT
(Superseded to 603773)

$2.99

$

In Stock, only 1 left!

0

11

Toro AUL78786

RETAINER-ROPE, WIRE

$45.99

$

Usually ships in 3-6 days

0

12

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

13

Toro AU219-8

FITTING-Lube 1/4-28 Tpr SAE-LT .54 Long
(Superseded to 302-57)

$1.99

$

Usually ships in 3-6 days

0
