RT 1200 - Toro Riding Trencher Traction Unit (2010) BOOM CYLINDER ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

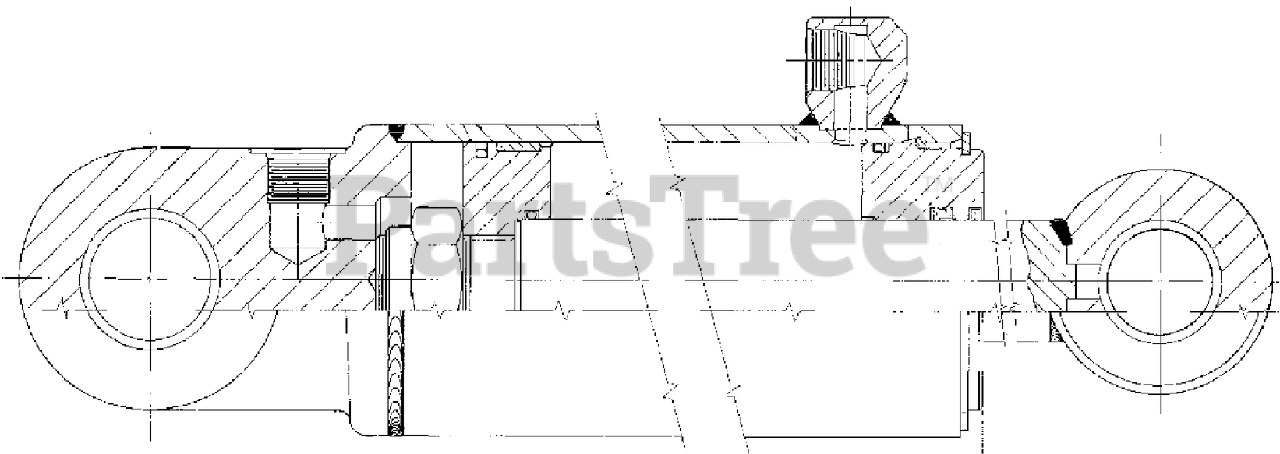

BOOM CYLINDER ASSEMBLY Parts Diagram

  • Title

Toro AUH672568

CYLINDER - Boom

Note: Not illustrated

$

$

Not available

10

Toro AUA41171

FITTING

Note: Not illustrated

$

$

Currently unavailable

11

Toro AUH221440

SEAL

Note: Not illustrated

$

$

Currently unavailable

1

Toro AUN13915

PISTON

Note: Not illustrated

$

$

Currently unavailable

2

Toro AUN13916

BEARING

Note: Not illustrated

$

$

Currently unavailable

3

Toro AUN13917

ASSEMBLY - Barrel Tube

Note: Not illustrated

$

$

Currently unavailable

4

Toro AUN13918

ASSEMBLY - Piston Rod

Note: Not illustrated

$

$

Currently unavailable

5

Toro AU131-190

NUT-hex, self-locking, 1-1/4 inch NF

Note: Not illustrated

$

$

Currently unavailable

6

Toro AUN13919

KIT - Seal (contains items 7 - 11)

Note: Not illustrated

$

$

Currently unavailable

7

Toro AUT53351

RING - Snap

Note: Not illustrated

$

$

Not available

8

Toro AUA27348

O-RING

Note: Not illustrated

$

$

Not available

9

Toro AUA41165

RING - Back-Up

Note: Not illustrated

$

$

Currently unavailable
