RT 1200 - Toro Riding Trencher Traction Unit (2010) BACKHOE SWING CYLINDER ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

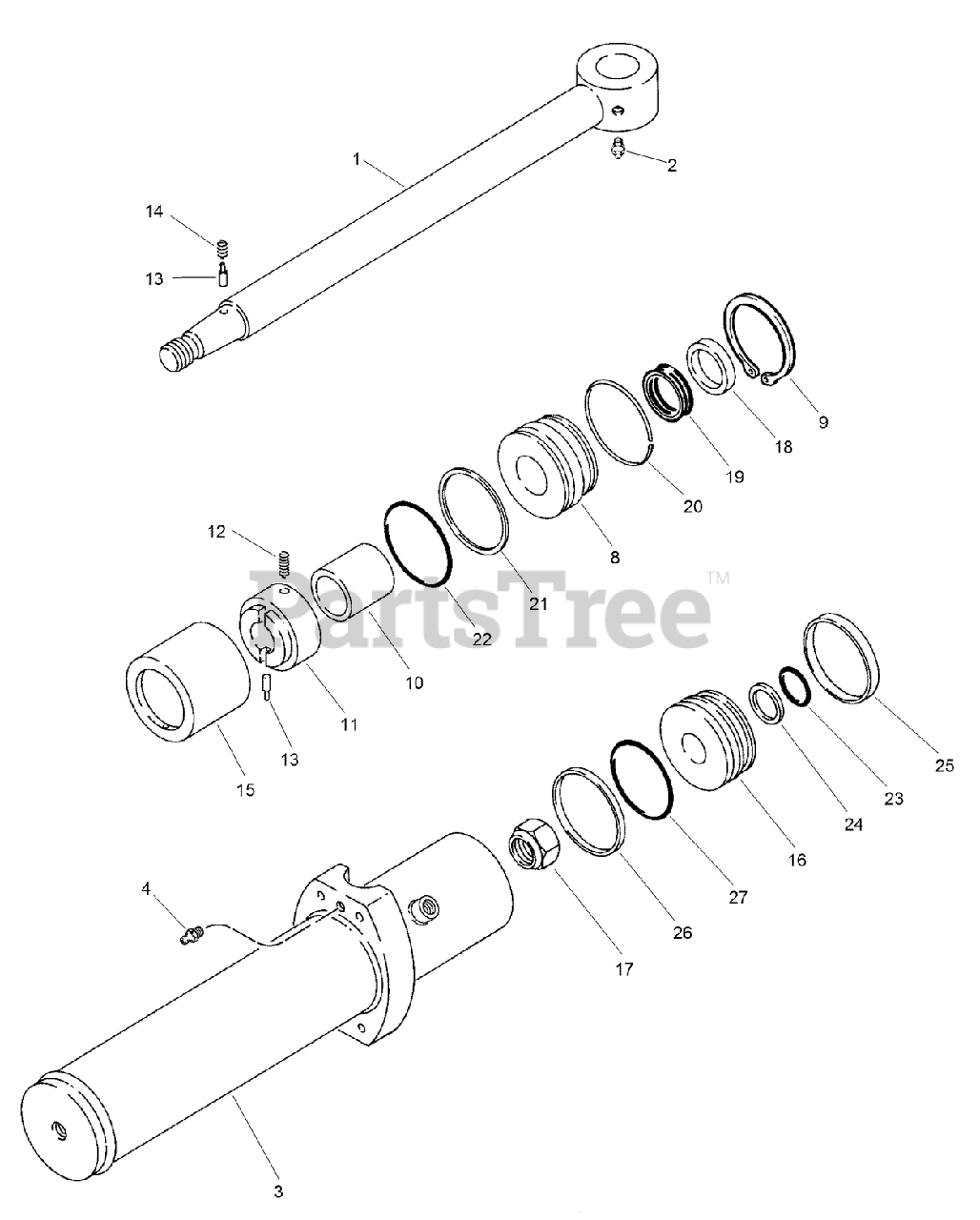

BACKHOE SWING CYLINDER ASSEMBLY Parts Diagram

  • Title

Toro AUH672571

CYLINDER - Swing

Note: Not illustrated

$

$

Currently unavailable

Toro AUN13909

ASSEMBLY - Rod (Consists of items 1 & 2)

Note: Not illustrated

$

$

Currently unavailable

1

ROD - Piston

Note: Not serviced separately

$

$

Not available

2

Toro AU219-17

FITTING - STR Grease 3/16
(Superseded to 302-63)

$2.99

$

In Stock, Qty 19

0

Toro AUN13908

ASSEMBLY - Tube, Cylinder (Consists of items 3 & 4)

Note: Not illustrated

$

$

Currently unavailable

3

TUBE - Cylinder

Note: Not serviced separately

$

$

Not available

4

Toro AU219-1

FITTING-Lube 1/8-27 Dryseal PTF
(Superseded to 302-2)

$2.49

$

In Stock, only 2 left!

0

8

Toro AUN13907

GLAND - Cylinder

$

$

Currently unavailable

9

Toro AUH746685

RING - Retaining

$

$

Not available

10

Toro AUN13913

SPACER

$

$

Currently unavailable

11

Toro AUN13911

RETAINER

$

$

Currently unavailable

12

Toro AUA47976

SPRING

$

$

Currently unavailable

13

Toro AUN13912

PIN - Lock

$

$

Currently unavailable

14

Toro AUN13905

SPRING

$

$

Currently unavailable

15

Toro AUN13910

SLEEVE - Cylinder

$

$

Currently unavailable

16

Toro AUN13906

PISTON - Cylinder

$

$

Currently unavailable

17

Toro AU232-24018

NUT - 1-1/8

$

$

Not available

Toro AUN13914

KIT - Seal Repair (Consists of items 18 - 27)

Note: Not illustrated

$

$

Currently unavailable

18

Toro AUA27564

WIPER - Piston Rod

$

$

Currently unavailable

19

Toro AUH220558

SEAL - Rod

$

$

Not available

20

Toro AUA44708

RING - Lock

$

$

Currently unavailable

21

Toro AUG32122

RING-backup, gland O-ring

$5.49

$

Usually ships in 3-6 days

0

22

Toro AU238-5234

O-RING-3 ID x 1/8 inch wide, gland

$

$

Not available

23

Toro AU238-5217

O-RING - Piston - 1-3/16 ID x 1/8

$

$

Not available

24

RING - Backup

Note: Not serviced separately

$

$

Not available

25

RING - Wear, Piston

Note: Not serviced separately

$

$

Not available

26

WASHER - Backup

Note: Not serviced separately

$

$

Not available

27

O-RING - Piston

Note: Not serviced separately

$

$

Not available
