RT 1200 - Toro Riding Trencher Traction Unit (2010) BACKHOE PLUMBING KIT Parts Diagram

Riding Trencher Traction Unit

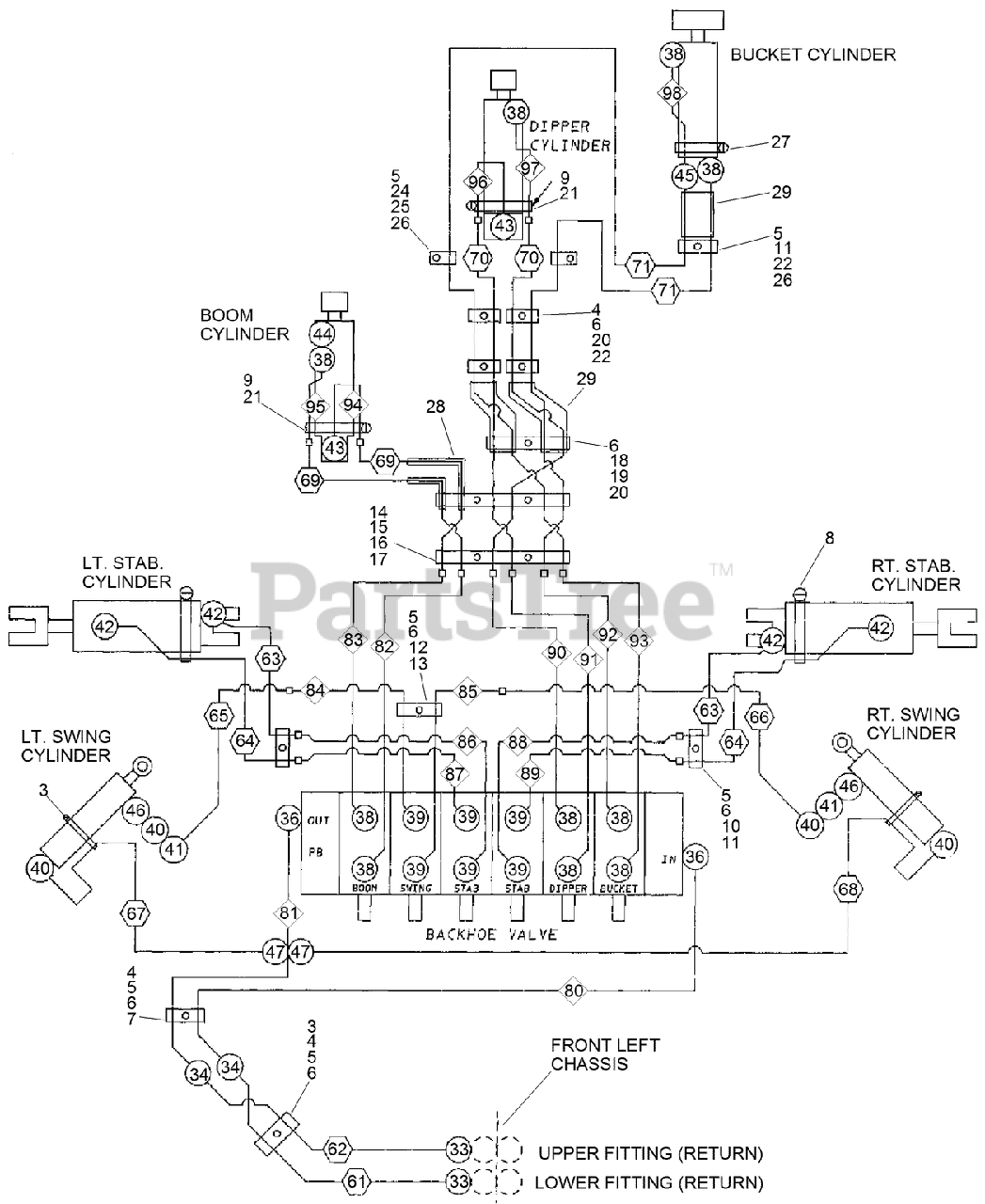

BACKHOE PLUMBING KIT Parts Diagram

  • Title

Toro AU108817A1

KIT - Backhoe Plumbing

Note: Not illustrated

$

$

Currently unavailable

3

Toro AUH231878

RETAINER - Hose

$

$

Currently unavailable

4

Toro AU426-628

BOLT-Hex Hd .375 x 1.75 GR5 ZND
(Superseded to 323-52)

$4.49

$

In Stock, only 2 left!

0

5

Toro AU224-2246

NUT-SQUARE

$0.99

$

Usually ships in 3-6 days

0

6

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

7

Toro AUD124301

RETAINER - 3/4 Tube

$

$

Currently unavailable

8

Toro AU214-1472

CLAMP-Hose Type F #72

$5.99

$

Usually ships in 3-6 days

0

9

Toro AUD38648

SADDLE-SUPPORT, TUBE

$

$

Currently unavailable

10

Toro AUD120679

CLAMP-TUBE

$7.99

$

Usually ships in 3-6 days

0

11

Toro AU426-624

BOLT-hex, 3/8 NC x 1-1/2 inch
(Superseded to 323-43)

$0.99

$

Usually ships in 3-6 days

0

12

Toro AUH45468

RETAINER - Tube

$

$

Currently unavailable

13

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

14

Toro AUH233304

STRAP-ANGLE

$

$

Currently unavailable

15

Toro AU426-552

BOLT - 5/16 x 3-1/4

$

$

Currently unavailable

16

Toro AU230-4215

NUT-Prev Trq 5/16 GRA CAD NONDIR

$1.99

$

Usually ships in 3-6 days

0

17

Toro AUH426775

WASHER-Flat 5/16 HT

$

$

Not available

18

Toro AUH433518

CLAMP-HOSE, RETAINER

$

$

Currently unavailable

19

Toro AU426-640

SCREW-HH
(Superseded to 323-47)

$5.49

$

In Stock, only 2 left!

0

20

Toro AU230-4216

NUT
(Superseded to 603773)

$2.99

$

In Stock, only 4 left!

0

21

Toro AU214-1488

CLAMP-HOSE

$

$

Not available

22

Toro AUH231894

RETAINER-HOSE

$

$

Currently unavailable

24

Toro AUH436769

RETAINER - Hose

$

$

Currently unavailable

25

Toro AU426-612

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

26

Toro AU492-11038

WASHER-Spring Lock, Reg 3/8 ZND
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

27

Toro AU214-1456

CLAMP-Hose #56

$6.99

$

Usually ships in 3-6 days

0

28

Toro AUD131789

SLEEVE - Hose Retaining, Protective, Hose

$7.49

$

Usually ships in 3-6 days

0

29

Toro AUD131814

SLEEVE - Hose Protector (Dia 1-3/4)

$26.99

$

Usually ships in 3-6 days

0

30

Toro AUL18331

STRAP-TIE

Note: Not illustrated

$2.49

$

Usually ships in 3-6 days

0

33

Toro AU218-5231

FITTING-ELBOW, 90

$19.99

$

Usually ships in 3-6 days

0

34

Toro AU218-737

UNION

$

$

Not available

36

Toro AU218-5108

ELBOW-90 Adj 37FL 3/4 Tube

$34.99

$

Usually ships in 3-6 days

0

38

Toro AU218-5062

CONNECTOR-Str Thd 5/8, 37FL-ORB 5/8

$7.99

$

Usually ships in 3-6 days

0

39

Toro AU218-5354

CONNECTOR
(Superseded to 100-4749)

$18.99

$

Usually ships in 3-6 days

0

40

Toro AU218-5105

ELBOW-90 DEG (ADJUSTABLE 37 DEG)

$3.99

$

Usually ships in 3-6 days

0

41

Toro AUH759110

ORIFICE - Plate, One-Way (0.0935 in Dia)

$

$

Currently unavailable

42

Toro AU218-5128

ELBOW-90 Adj 37FL, 3/8 x 1/2 Tube
(Superseded to 353-537)

$12.99

$

Usually ships in 3-6 days

0

43

Toro AU218-5107

ELBOW-90 Adj 37FL 5/8 Tube

$8.99

$

Usually ships in 3-6 days

0

44

Toro AUH434281

ORIFICE-FLOATING

$

$

Currently unavailable

45

Toro AU218-736

FITTING-UNION

$8.49

$

Usually ships in 3-6 days

0

46

Toro AU495-31022

WASHER-0.219 x 0.500 x 0.049 in CST ZND

$0.99

$

Usually ships in 3-6 days

0

47

Toro AU218-734

CONNECTOR - 9/16 MJ x 9/16 MJ Str

$9.99

$

Usually ships in 3-6 days

0

61

Toro AUH433854

HOSE - 5/8 x 775mm, 100R2, 1-1/16 FJ Ends

$

$

Currently unavailable

62

Toro AU120837A1

ASM-Hose

$

$

Currently unavailable

63

Toro AUH165282

HOSE - 533 mm (21 inch) Long, Upper Right-hand Port of Selector Valve to Rod End of Plow Lift Cylinder

$65.99

$

Usually ships in 3-6 days

0

64

Toro AUH434207

HOSE - 1/4 x 215mm, 100R1, 9/16 MJ x 9/16 FJ

$

$

Currently unavailable

65

Toro AUH165340

HOSE - 1/4 x 12mm, 100R1, 9/16 MJ x 9/16 FJ

$61.99

$

Usually ships in 3-6 days

0

66

Toro AUH168625

HOSE - 1/4 x 15mm, 100R1, 9/16 MJ x 9/16 FJ

$

$

Currently unavailable

67

Toro AU108145A1

HOSE - 3/8 x 508mm, 100R1, 9/16 FJ x 9/16 90 Deg

$

$

Currently unavailable

68

Toro AU108144A1

HOSE - 3/8 x 876mm, 100R1, 9/16 FJ x 9/16 90 Deg

$

$

Currently unavailable

69

Toro AUH433855

HOSE - 1/2 x 910mm, MEGA-FLEX 78 MJ Ends

$

$

Currently unavailable

70

Toro AUH433856

HOSE - 1/2 x 180mm, MEGA-FLEX 7/8 MJ Ends

$

$

Currently unavailable

71

Toro AUH433857

HOSE - 1/2 x 2830mm, MEGA-FLEX 7/8 MJ x 1/8 FJ

$

$

Currently unavailable

80

Toro AUH672533

TUBE - Valve Inlet (3/4 OD)

$

$

Currently unavailable

81

Toro AU108087A1

TUBE - Valve Return (3/4 OD)

$

$

Currently unavailable

82

Toro AUH672385

TUBE - Valve, Boom Head (5/8 OD)

$

$

Currently unavailable

83

Toro AUH672386

TUBE - Valve, Boom Rod (5/8 OD)

$

$

Currently unavailable

84

Toro AUH672391

TUBE - Valve, LH Swing (3/8 OD)

$

$

Currently unavailable

85

Toro AUH672392

TUBE - Valve, RH Swing (3/8 OD)

$

$

Currently unavailable

86

Toro AUH672405

TUBE - Valve, LH Stab Head (3/8 OD)

$

$

Currently unavailable

87

Toro AUH672406

TUBE - Valve, LH Stab Rod (3/8 OD)

$

$

Currently unavailable

88

Toro AUH672407

TUBE - Valve, RH Stab Head (3/8 OD)

$

$

Currently unavailable

89

Toro AUH672408

TUBE - Valve, RH Stab Rod (3/8 OD)

$

$

Currently unavailable

90

Toro AUH672387

TUBE - Valve, Dipper Head (5/8 OD)

$

$

Currently unavailable

91

Toro AUH672388

TUBE - Valve, Dipper Rod (5/8 OD)

$

$

Currently unavailable

92

Toro AUH672389

TUBE - Valve, Bucket Head (5/8 OD)

$

$

Currently unavailable

93

Toro AUH672390

TUBE - Valve, Bucket Rod (5/8 OD)

$

$

Currently unavailable

94

Toro AUH672348

TUBE - Boom Cylinder Head (5/8 OD)

$

$

Currently unavailable

95

Toro AUH672349

TUBE - Boom Cylinder Rod (5/8 OD)

$

$

Currently unavailable

96

Toro AUH672350

TUBE - Dipper Cylinder Head (5/8 OD)

$

$

Currently unavailable

97

Toro AUH672351

TUBE - Dipper Cylinder Rod (5/8 OD)

$

$

Currently unavailable

98

Toro AUH672353

TUBE - Bucket Cylinder Rod (5/8 OD)

$

$

Currently unavailable
