RT 1200 - Toro Riding Trencher Traction Unit (2010) BACKHOE DIPPER CYLINDER ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

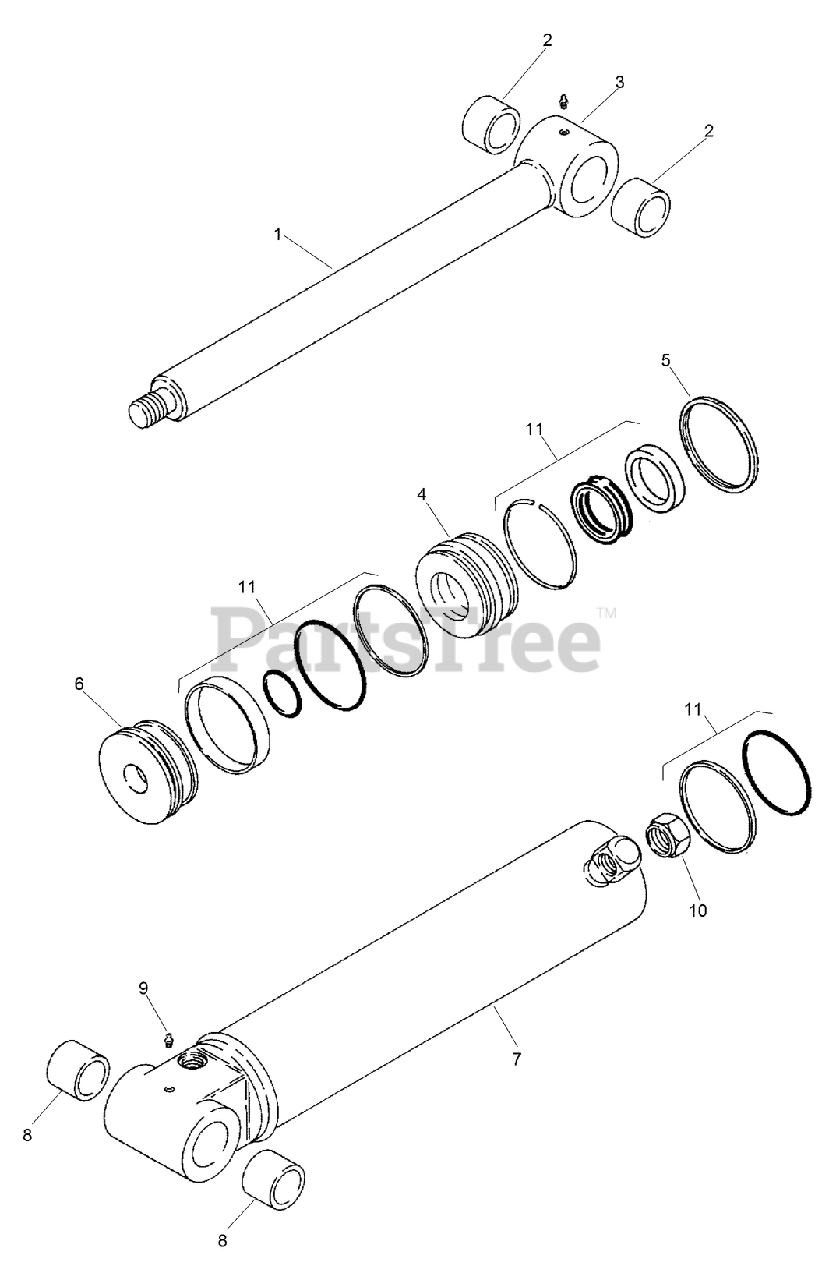

BACKHOE DIPPER CYLINDER ASSEMBLY Parts Diagram

  • Title

Toro AU138234A1

CYLINDER - Dipper

Note: Not illustrated

$

$

Not available

Toro AU142757A1

ASSEMBLY - Rod, Piston (Consists of items 1 - 3)

Note: Not illustrated

$

$

Currently unavailable

1

ROD - Piston

Note: Not serviced separately

$

$

Not available

2

Toro AU178307A1

BUSHING - Piston, Rod

$

$

Currently unavailable

3

Toro AU219-8

FITTING-Lube 1/4-28 Tpr SAE-LT .54 Long
(Superseded to 302-57)

$1.99

$

Usually ships in 3-6 days

0

4

Toro AU142754A1

GLAND - Cylinder

$

$

Currently unavailable

5

Toro AUT52488

NUT - Special

$

$

Currently unavailable

6

Toro AUN13922

PISTON - Cylinder

$

$

Currently unavailable

Toro AU142755A1

ASSEMBLY - Tube, Cylinder (Consists of items 7 - 9)

Note: Not illustrated

$

$

Currently unavailable

7

Tube

Note: Not serviced separately

$

$

Not available

8

Toro AUN13921

BUSHING - Piston Rod

$

$

Currently unavailable

9

Toro AU219-8

FITTING-Lube 1/4-28 Tpr SAE-LT .54 Long
(Superseded to 302-57)

$1.99

$

Usually ships in 3-6 days

0

10

Toro AU232-24020

NUT - Lock - 1-1/4 NF

$

$

Currently unavailable

11

Toro AU292230A1

KIT - Repair, Seal

$

$

Not available
