RT 1200 - Toro Riding Trencher Traction Unit (2010) BACKFILL BLADE LIFT CYLINDER ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

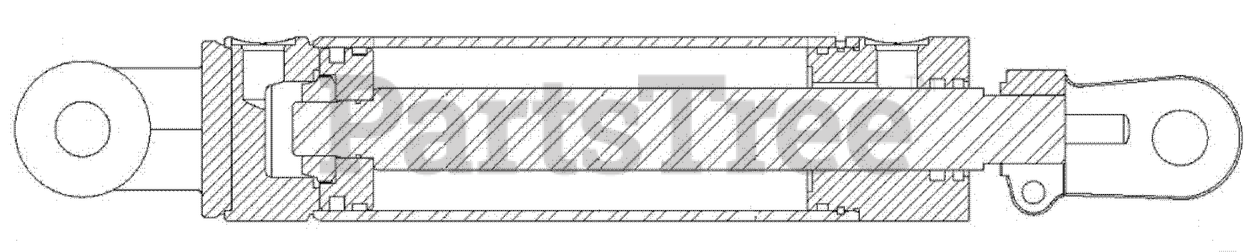

BACKFILL BLADE LIFT CYLINDER ASSEMBLY Parts Diagram

  • Title

Toro AUH670935

CYLINDER - Barrel

Note: Not illustrated

$

$

Not available

1

Toro AU119043

PIN - Cylinder

Note: Not illustrated

$

$

Currently unavailable

2

Toro AU1978738C1

PIN-COTTER, QUICK ATTACH

Note: Not illustrated

$

$

Not available

3

Toro AU123147

SEAL-Piston

Note: Not illustrated

$

$

Currently unavailable

4

Toro AU123148

SEAL-WIPER

Note: Not illustrated

$

$

Currently unavailable

5

Toro AU123149

SEAL-ROD

Note: Not illustrated

$

$

Currently unavailable
