RT 1200 - Toro Riding Trencher Traction Unit (2010) AUGER MOUNTING ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

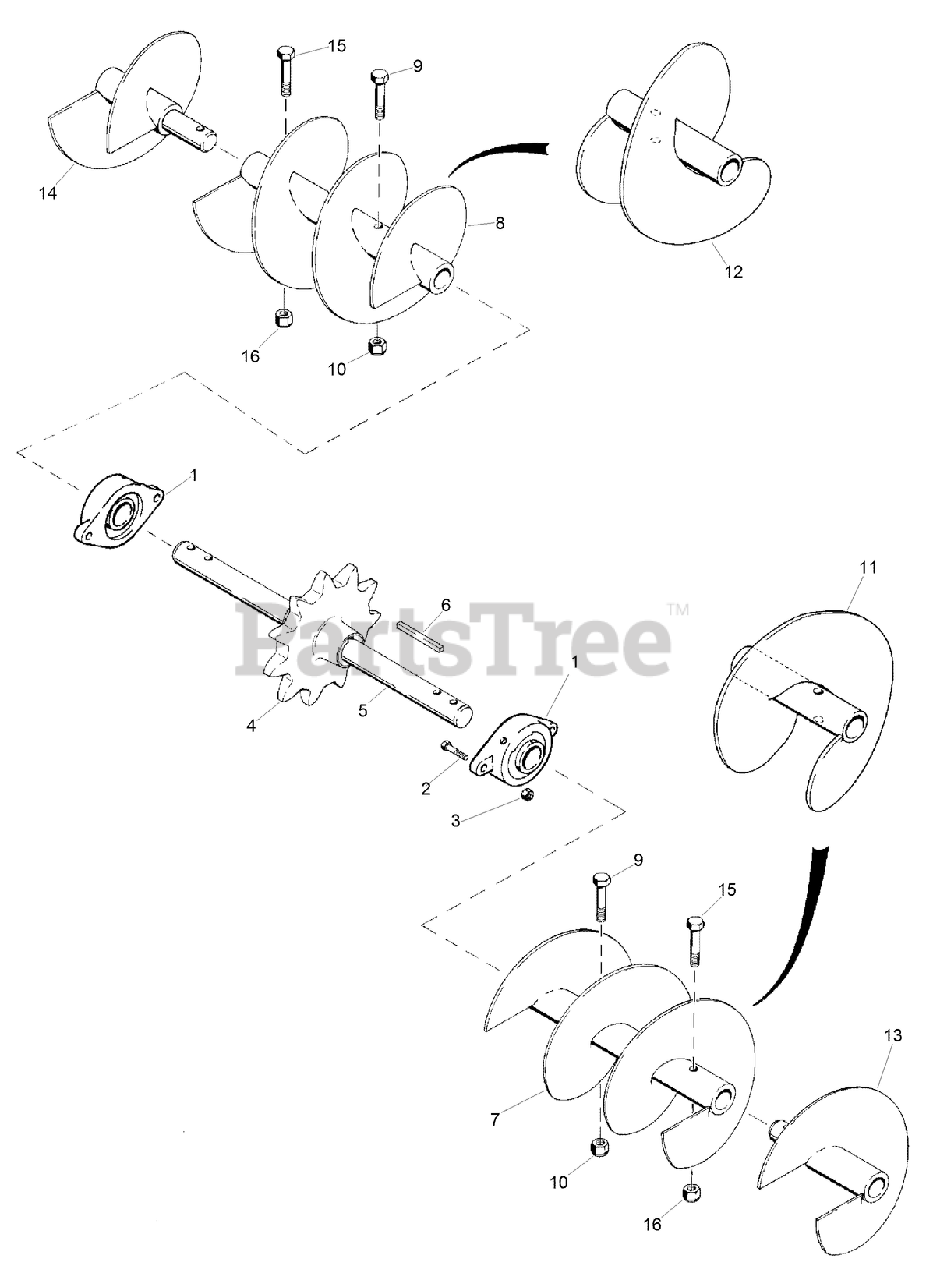

AUGER MOUNTING ASSEMBLY Parts Diagram

  • Title

1

Toro AUH759120

BEARING-BALL, 2-BOLT FLANGE (2 IN)

$

$

Currently unavailable

1A

Toro AU219-1

FITTING-Lube 1/8-27 Dryseal PTF
(Superseded to 302-2)

Note: Not illustrated

$2.49

$

In Stock, only 2 left!

0

2

Toro AU426-1040

BOLT - 5/8 x 2-1/2
(Superseded to AU8HH81511)

$3.49

$

Usually ships in 3-6 days

0

3

Toro AU232-41110

NUT-LOCK, HEX

$1.49

$

Usually ships in 3-6 days

0

4

Toro AU186252A1

SPROCKET - Auger Drive, 311 Chain

$

$

Not available

4

Toro AU186277A1

SPROCKET - Auger Drive, 408 Chain

$

$

Currently unavailable

5

Toro AUH434597

SHAFT-AUGER

$

$

Not available

6

Toro AUH433528

KEY-SQUARE

$

$

Currently unavailable

7

Toro AUH672056

AUGER - RH
(Superseded to AUH672056-03)

$2786.99

$

Usually ships in 3-6 days

0

8

Toro AUH672057

AUGER - LH
(Superseded to AUH672057-03)

$2786.99

$

Usually ships in 3-6 days

0

9

Toro AU426-1264

BOLT

$6.99

$

Usually ships in 3-6 days

0

10

Toro AU232-41112

NUT-Prev Trq 3/4 GRC CAD Direct

$2.49

$

Usually ships in 3-6 days

0

11

Toro AUH673128

WELDMENT - Auger, RH

$

$

Currently unavailable

12

Toro AUH673129

WELDMENT - Auger, LH

$

$

Currently unavailable

13

Toro AUH672396

AUGER - RH, Extension

$

$

Currently unavailable

14

Toro AUH672395

AUGER - LH, Extension

$1022.99

$

Usually ships in 3-6 days

0

15

Toro AU428-948

BOLT - 9/16 x 3

$

$

Currently unavailable

16

Toro AU232-4619

NUT-HEX

$

$

Currently unavailable
