RT 1200 - Toro Riding Trencher Traction Unit (2010) 8IN WHEEL TRACK AXLE ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

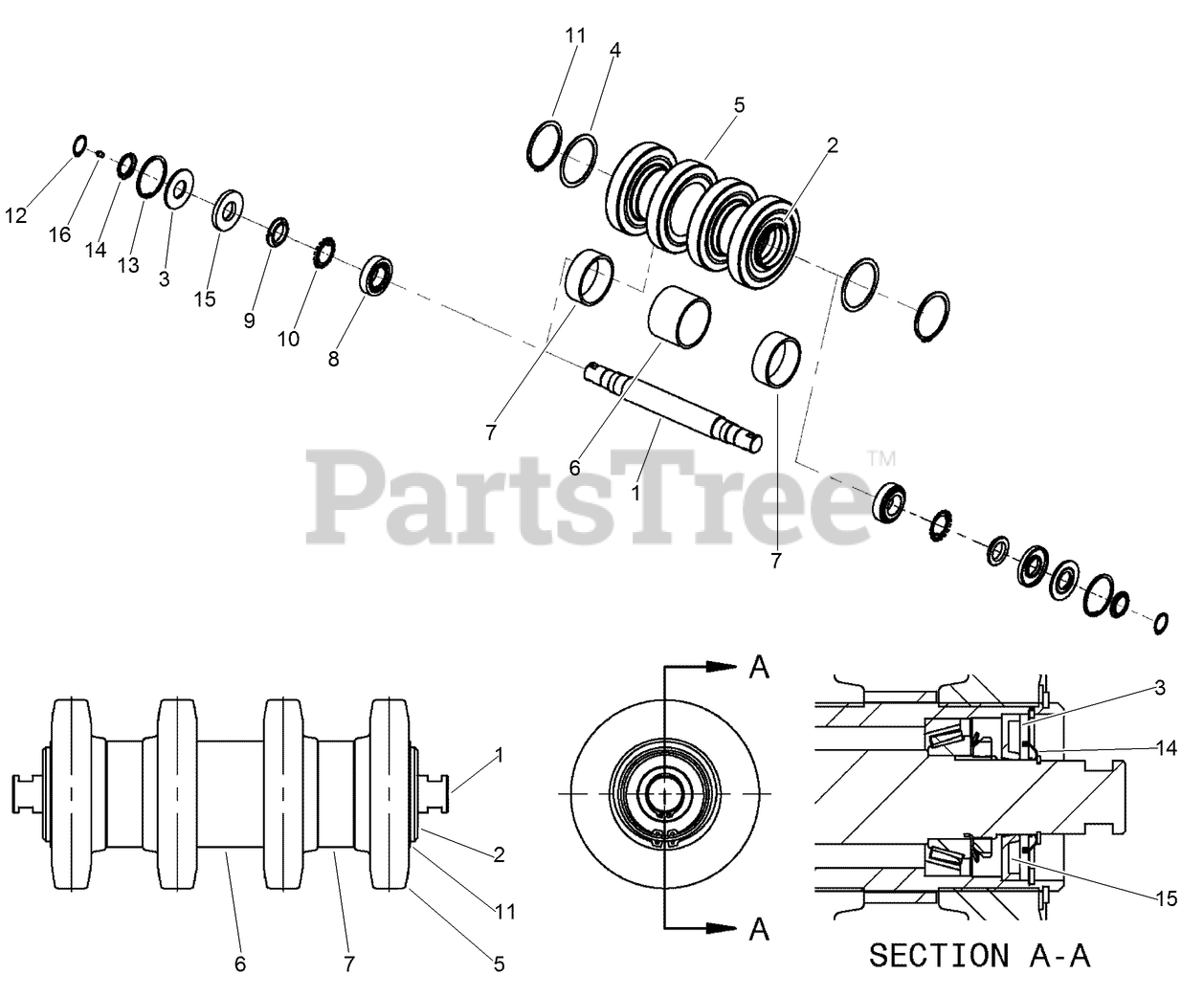

8IN WHEEL TRACK AXLE ASSEMBLY Parts Diagram

  • Title

Toro AU119206

ASSEMBLY - Axle for 19.50 Track, 3 Wheels 8.00 Dia

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU119231

AXLE - Track Roller

$

$

Currently unavailable

2

TUBING - Axle

Note: Not serviced separately

$

$

Not available

3

Toro AU119232

SEAL - Double Lip

$

$

Currently unavailable

4

Toro AU119233

RING-RETAING, TRACK WHEEL

$

$

Currently unavailable

5

Toro AU120850

WHEEL-MOLDED, TRACKS, 8IN

$

$

Currently unavailable

6

Spacer

Note: Not serviced separately

$

$

Not available

7

Spacer

Note: Not serviced separately

$

$

Not available

8

Toro AU119234

BEARING - Track Axle

$

$

Currently unavailable

9

Toro AU119235

NUT-GROOVED, M45

$

$

Currently unavailable

10

Toro AU119236

WASHER-LOCK, TABBED, M45

$

$

Currently unavailable

11

Toro AU119237

RING-RETAINING,EXTERNAL 4IN

$

$

Currently unavailable

12

Toro AU800-1140

RING-EX, RT

$

$

Not available

13

Toro AU119238

RING - Retaining, Internal

$

$

Currently unavailable

14

Toro AU119239

SEAL-OIL, DOUBLE LIP, 58MM OD

$

$

Currently unavailable

15

Toro AU119240

SEAL - Oil, 40 mm ID x 90 mm OD x 10 mm

$

$

Currently unavailable

16

Toro AU219-1

FITTING-Lube 1/8-27 Dryseal PTF
(Superseded to 302-2)

$2.49

$

In Stock, only 2 left!

0
