RT 1200 - Toro Riding Trencher Traction Unit (2010) 46IN ROCK SAW CRUMBER ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

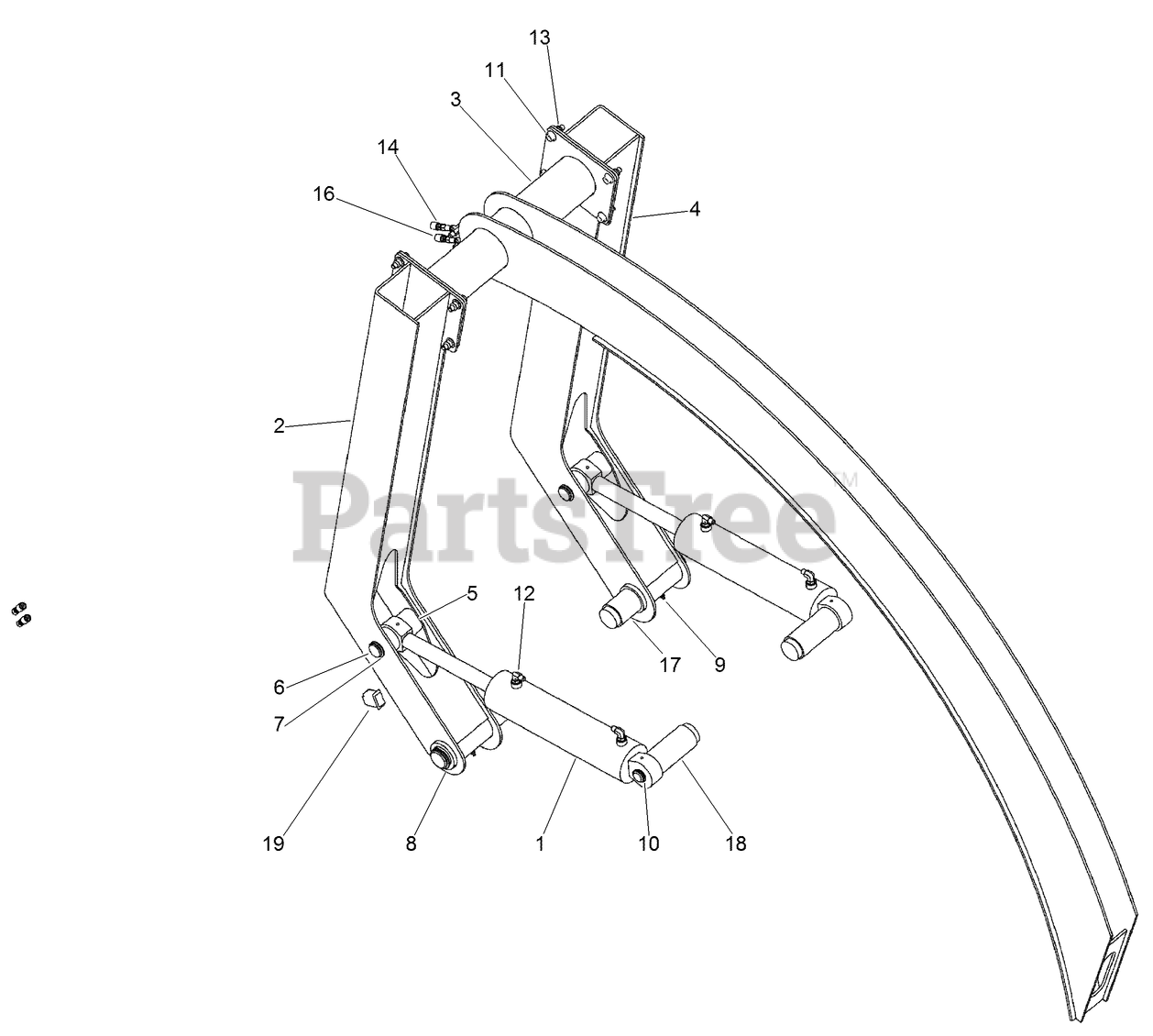

46IN ROCK SAW CRUMBER ASSEMBLY Parts Diagram

  • Title

Toro AU118931

ASSEMBLY - Crumber, 46 Rock Saw

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU118918

CYLINDER ASSEMBLY - 89 (3-1/2) ID x 290 mm (11-13/32 inch) Stroke, Plow Lift

$1757.99

$

Usually ships in 3-6 days

0

2

Toro AU116472

ARM - Crumber

$

$

Currently unavailable

3

Toro AU116475

GUARD - Crumber

$

$

Currently unavailable

4

Toro AU116471

ARM - Crumber

$

$

Currently unavailable

5

Toro AU115655

BUSHING - Pivot

$

$

Currently unavailable

6

Toro AUH437348

PIN

$

$

Currently unavailable

7

Toro AUD25279

RING

$20.99

$

Usually ships in 3-6 days

0

8

Toro AU103-16200

RING-RETAINING, EXTERNAL

$4.99

$

Usually ships in 3-6 days

0

9

Toro AU219-1

FITTING-Lube 1/8-27 Dryseal PTF
(Superseded to 302-2)

$2.49

$

In Stock, Qty 19

0

10

Toro AU103-16125

RING-RETAINING
(Superseded to 32151-77)

$4.99

$

Usually ships in 3-6 days

0

11

Toro AU100830

SCREW

$3.49

$

In Stock, Qty 7

0

12

Toro AU218-5105

ELBOW-90 DEG (ADJUSTABLE 37 DEG)

$3.99

$

Usually ships in 3-6 days

0

13

Toro AU100528

NUT-HHF, LOCK

$3.49

$

In Stock, Qty 15

0

14

Toro AU218-804

TEE - Bulkhead BR 37FL 3/8 x 3/8 x 3/8

$

$

Currently unavailable

15

Toro AU139517C1

HOSE

Note: Not illustrated

$

$

Currently unavailable

16

Toro AUH438199

FITTING

$

$

Currently unavailable

17

Toro AU115871

PIN

$

$

Currently unavailable

18

Toro AU115824

PIN

$

$

Currently unavailable

19

Toro AU113664

SWITCH-ROCKER, 2 POLE

$38.99

$

In Stock, only 2 left!

0

Toro AU123114

COIL - 12V

Note: Not illustrated

$

$

Currently unavailable

Toro AU117307

Kit - Shoe, 10 Crumber

Note: Not illustrated

$

$

Currently unavailable

20

Toro AU119090

CARTRIDGE-HYDRAULICS, AUXILIARY

Note: Not illustrated

$528.99

$

Usually ships in 3-6 days

0
