RT 1200 - Toro Riding Trencher Traction Unit (2010) 40IN ROCK WHEEL MOTOR/DISC ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

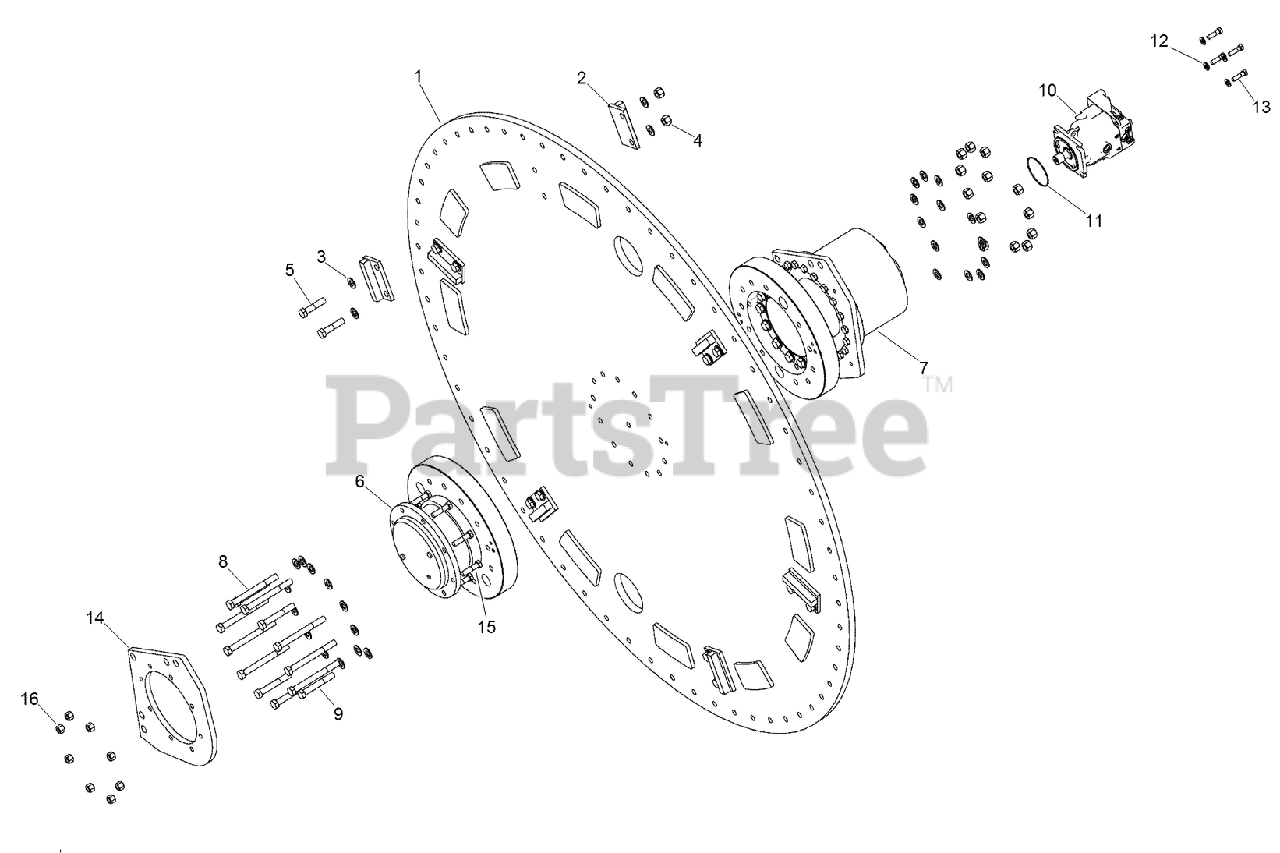

40IN ROCK WHEEL MOTOR/DISC ASSEMBLY Parts Diagram

  • Title

Toro AU110716

WHEEL ASSEMBLY - Motor/Disc/Hardware

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU110678

WELDMENT - Wheel, 40 Cut

$

$

Not available

2

Toro AU101067

WELDMENT - Side Cutter

$

$

Not available

3

Toro AU496-11081

WASHER

$0.99

$

Usually ships in 3-6 days

0

4

Toro AU232-41112

NUT-Prev Trq 3/4 GRC CAD Direct

$2.49

$

Usually ships in 3-6 days

0

5

Toro AU426-1252

BOLT - Hex Hd .75 x 3.25 GR8 ZND

$

$

Currently unavailable

6

Toro AU115745

ASSEMBLY - Model 9 Hub w/Adaptor Plate

$

$

Currently unavailable

7

Toro AU115743

ASSEMBLY - Model 10 Gearbox w/Adaptor Plate

$

$

Currently unavailable

8

Toro AU426-12120

BOLT - Hex Hd 0.75 x 7.50 GR8 ZND

$

$

Not available

9

Toro AU426-1280

BOLT - 3/4 x 5

$

$

Not available

10

Toro AU102460

PUMP - Sauer-Danfoss, 90 Series, 55cc

$

$

Currently unavailable

11

Toro AU238-5243

O-RING-Motor Seal

$

$

Currently unavailable

12

Toro AU496-21053

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

13

Toro AU426-828

BOLT-Hex Hd 1/2 x 1-3/4 GR5 ZND
(Superseded to 121-1524)

$3.49

$

Usually ships in 3-6 days

0

14

Toro AU101090

PLATE - Hub Mount

$

$

Currently unavailable

15

Toro AU426-1040

BOLT - 5/8 x 2-1/2
(Superseded to AU8HH81511)

$3.49

$

Usually ships in 3-6 days

0

16

Toro AU232-41110

NUT-LOCK, HEX

$1.49

$

Usually ships in 3-6 days

0
