RT 1200 - Toro Riding Trencher Traction Unit (2010) 40? DEPTH ROCKSAW ASSEMBLY Parts Diagram

Riding Trencher Traction Unit

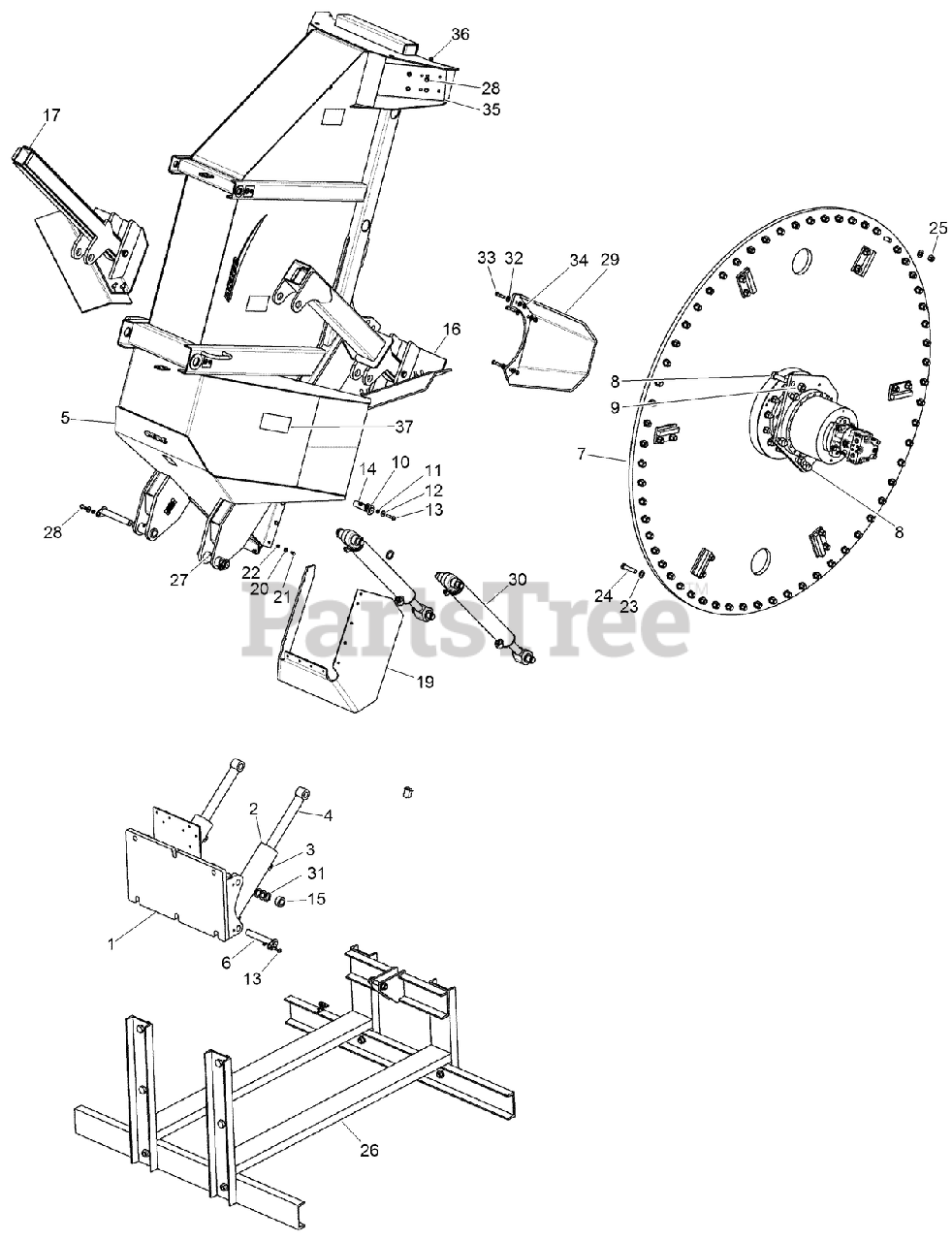

40? DEPTH ROCKSAW ASSEMBLY Parts Diagram

  • Title

Toro AU118933

ROCKSAW - 40 Depth

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU115723

WELDMENT - Rock Wheel Mount

$

$

Currently unavailable

2

Toro AU8HC40027

CYLINDER - Hydraulic, Base

$

$

Currently unavailable

3

Toro AU218-5057

CONNECTOR-Str Thd 3/8, 37FL-ORB 3/8

$4.49

$

Usually ships in 3-6 days

0

4

Toro AU8HC40027

CYLINDER - Hydraulic, Base

$

$

Currently unavailable

5

Toro AU110679

FRAME WELDMENT - Rock Wheel

$

$

Currently unavailable

6

Toro AU111339

PIN-PIVOT W/ FLAG

$

$

Not available

7

Toro AU110716

WHEEL ASSEMBLY - Motor/Disc/Hardware

$

$

Currently unavailable

8

Toro AU426-1648

BOLT

$10.99

$

Usually ships in 3-6 days

0

9

Toro AU232-41116

NUT-HEX

$5.99

$

Usually ships in 3-6 days

0

10

Toro AU115795

PIN - Pivot with Flag

$

$

Currently unavailable

11

Toro AU349192A1

SPACER

$13.99

$

Usually ships in 3-6 days

0

12

Toro AU496-41041

WASHER

$9.49

$

Usually ships in 3-6 days

0

13

Toro AU100333

SCREW-FLANGE

$

$

Not available

14

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

15

Toro AU117187

SPACER - Pin

$

$

Currently unavailable

16

Toro AU110764

ASSEMBLY - Stabilizer, LH

$

$

Currently unavailable

17

Toro AU110769

ASSEMBLY - Stabilizer, RH

$

$

Currently unavailable

19

Toro AU115648

SKIRT - Rock Wheel

$

$

Currently unavailable

20

Toro AU495-11041

WASHER-0.406 x 0.812 x 0.065 in CST ZND

$0.99

$

Usually ships in 3-6 days

0

21

Toro AU426-624

BOLT-hex, 3/8 NC x 1-1/2 inch
(Superseded to 323-43)

$0.99

$

Usually ships in 3-6 days

0

22

Toro AU230-4216

NUT
(Superseded to 603773)

$2.99

$

In Stock, Qty 8

0

23

Toro AU496-11081

WASHER

$0.99

$

Usually ships in 3-6 days

0

24

Toro AU426-1252

BOLT - Hex Hd .75 x 3.25 GR8 ZND

$

$

Currently unavailable

25

Toro AU232-41112

NUT-Prev Trq 3/4 GRC CAD Direct

$2.49

$

Usually ships in 3-6 days

0

26

Toro AU109145

STAND - Rock Saw

$

$

Currently unavailable

27

Toro AU219-1

FITTING-Lube 1/8-27 Dryseal PTF
(Superseded to 302-2)

$2.49

$

In Stock, only 2 left!

0

28

Toro AU100877

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

29

Toro AU102474

WELDMENT - Motor Guard

$

$

Currently unavailable

30

Toro AU119087

STABILIZER GROUP - Rock Saw

$

$

Currently unavailable

31

Toro AU495-81203

WASHER

$22.99

$

Usually ships in 3-6 days

0

32

Toro AU496-21053

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

33

Toro AU426-832

BOLT

$1.49

$

Usually ships in 3-6 days

0

34

Toro AU230-4218

NUT-LOCK, HEX

$3.49

$

Usually ships in 3-6 days

0

35

Toro AU117311

PLATE - Adjustable Ejection

$

$

Currently unavailable

36

Toro AU100444

NUT, METRIC HEX FLANGE - M10, Zinc

$

$

Currently unavailable

37

Toro AU116357

DECAL GROUP - 46 Rock Saw

$

$

Currently unavailable
