RT 1200 - Toro Riding Trencher Traction Unit (2010) 4 AND 5 FOOT CRUMBER HYDRAULIC KIT Parts Diagram

Riding Trencher Traction Unit

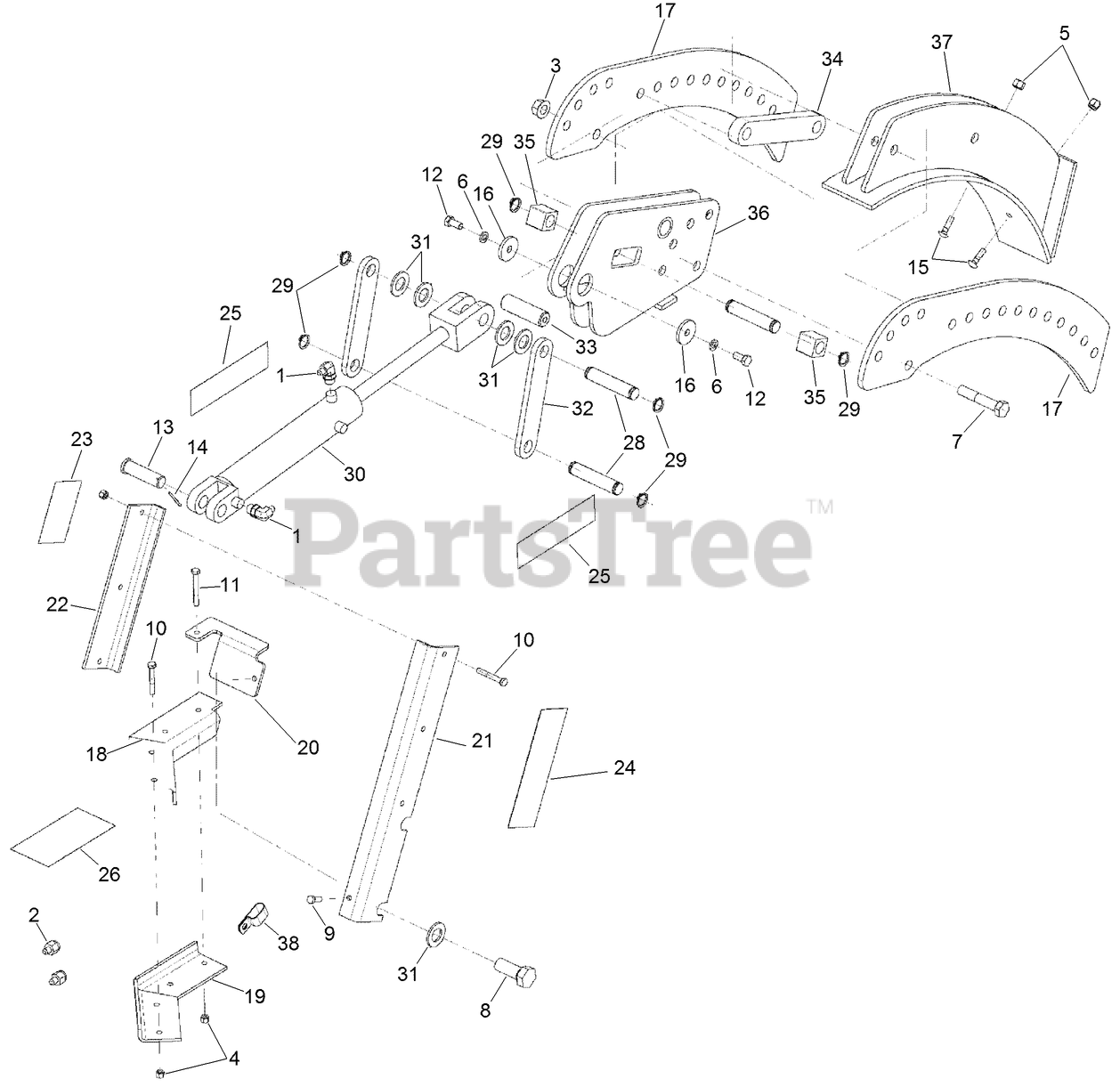

4 AND 5 FOOT CRUMBER HYDRAULIC KIT Parts Diagram

  • Title

Toro AU108297

KIT - Hydraulic Crumber

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU218-5128

ELBOW-90 Adj 37FL, 3/8 x 1/2 Tube
(Superseded to 353-537)

$13.99

$

Usually ships in 3-6 days

0

2

Toro AU218-786

REDUCER-TUBE

Note: Not illustrated

$

$

Not available

3

Toro AU231-51412

NUT-HEX FLANGE

$10.99

$

Usually ships in 3-6 days

0

4

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

5

Toro AU232-4118

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

6

Toro AU392-11050

WASHER - Spring Lock Reg .500 in PHC

$

$

Currently unavailable

7

Toro AU426-1264

BOLT

$7.49

$

Usually ships in 3-6 days

0

8

Toro AU426-1640

BOLT

$21.99

$

Usually ships in 3-6 days

0

9

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

10

Toro AU426-640

SCREW-HH
(Superseded to 323-47)

$5.49

$

In Stock, only 2 left!

0

11

Toro AU426-648

BOLT-hex, 3/8 NC x 3 inch

$1.49

$

Usually ships in 3-6 days

0

12

Toro AU426-816

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

13

Toro AU427-16350

PIN-clevis, 1 x 3-1/2 inch, hardened

$

$

Not available

14

Toro AU432-1028

PIN-cotter, 5/32 x 1-3/4 inch
(Superseded to 3272-17)

$2.99

$

In Stock, Qty 5

0

15

Toro AU433-624

BOLT - Round Hd .375 x 1.50 GR5 ZND

$0.99

$

Usually ships in 3-6 days

0

16

Toro AU495-81269

WASHER-FLAT

$

$

Currently unavailable

17

Toro AU102540A1

PLATE-CRUMBER CONNECTOR

$

$

Not available

18

Toro AU105556A1

ANGLE WELDMENT - Conduit, Upper

$

$

Currently unavailable

19

Toro AU105564A1

ANGLE WELDMENT - Conduit, Lower

$

$

Not available

20

Toro AU105565A1

ANGLE - Tie

$

$

Currently unavailable

21

Toro AU105566A1

ANGLE - Conduit (long)

$

$

Currently unavailable

22

Toro AU105568A1

ANGLE - Conduit (short)

$

$

Not available

23

Toro AU419470A1

DECAL-DANGER, ENTANGLE HAZZARD

$72.99

$

Usually ships in 3-6 days

0

24

Toro AU419474A1

DECAL-Danger, Trencher Entanglement Hazard

$

$

Not available

25

Toro AU428652A1

DECAL-Danger, Entanglement Hazard

$15.99

$

Usually ships in 3-6 days

0

26

Toro AU429172a1

DECAL - Hyd Crumber Oper Instructions

$

$

Currently unavailable

27

Toro AU108294

HOSE - Crumber Assembly

Note: Not illustrated

$

$

Currently unavailable

28

Toro AUD137151

PIN-CYLINDER, ROD

$117.99

$

Usually ships in 3-6 days

0

29

Toro AUD25277

RING - Snap

$1.99

$

Usually ships in 3-6 days

0

30

Toro AUG34197

ASSEMBLY - Cylinder

$

$

Currently unavailable

31

Toro AUH426833

WASHER

$10.99

$

Usually ships in 3-6 days

0

32

Toro AUH434627

LINK - Crumber, Straight

$

$

Not available

33

Toro AUH434920

PIN-PIVOT, CRUMBER PIVOT

$

$

Currently unavailable

34

Toro AUH435270

LINK-CRUMBER PUSH

$

$

Not available

35

Toro AUH435440

BLOCK-SLIDE - SQ. BAR

$

$

Currently unavailable

36

Toro AUH672767

PIVOT WELDMENT - Crumber

$

$

Currently unavailable

37

Toro AUH672768

SHOE WELDMENT - Crumber

$

$

Currently unavailable

38

Toro AUL302731

CLAMP-DOUBLE

$

$

Currently unavailable
