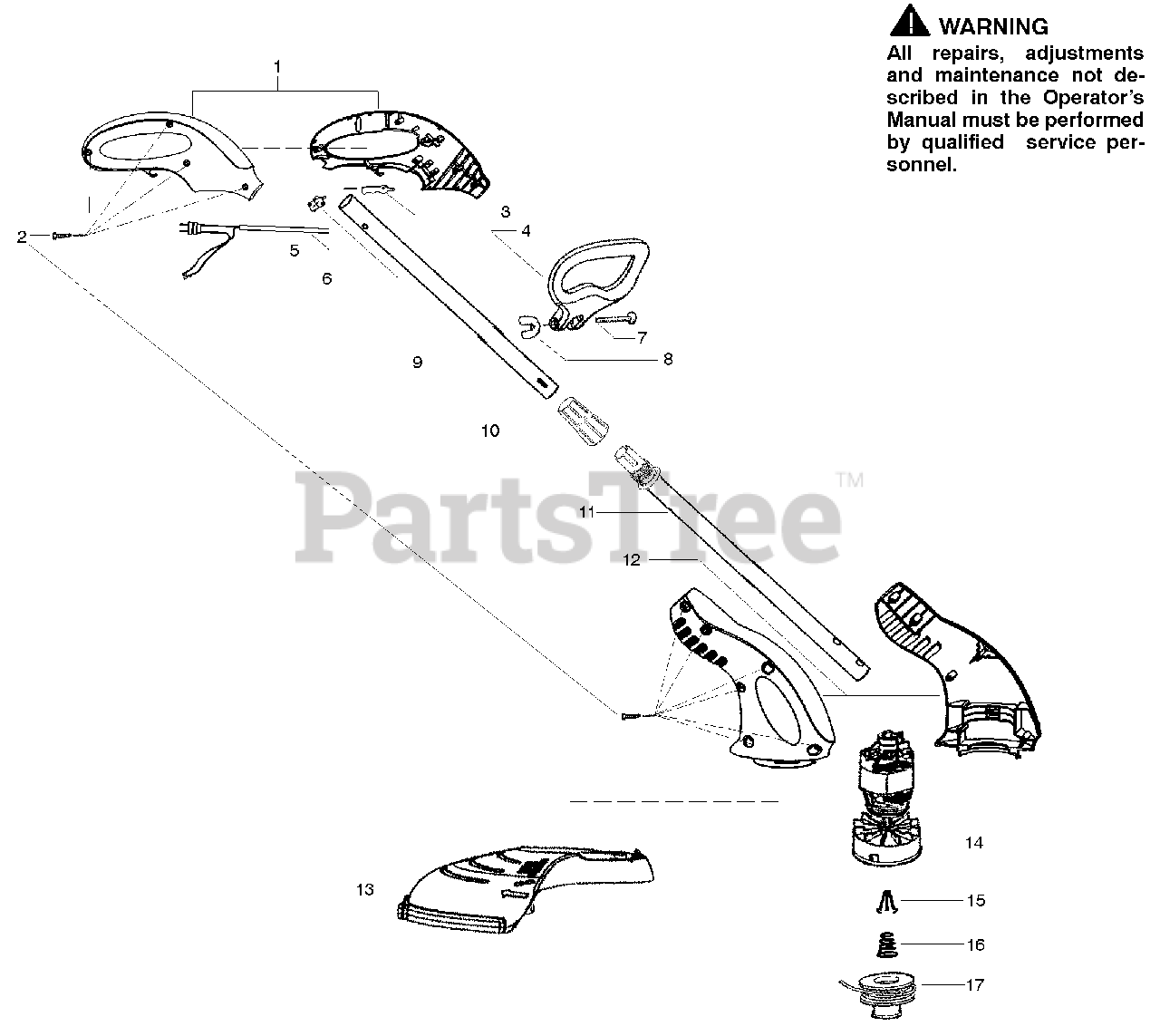

RT 112 C - Weed Eater String Trimmer, Electric Product Complete Parts Diagram

String Trimmer, Electric

Product Complete Parts Diagram

  • Title

1

Poulan 545077901

Assy-Handle Set

$

$

Not available

2

Poulan 530016120

Screw (10pcs.)

$3.99

$

In Stock, Qty 9

0

3

Poulan 530403818

Trigger

$

$

Not available

4

Poulan 530403996

Assy-Handle Assist

Note: (Incl. 7,8)

$15.99

$

In Stock, only 1 left!

0

5

Poulan 545046201

Assy-Wiring Harness
(Superseded to 545090401)

Note: (Incl. #6)

$

$

Not available

6

Poulan 530402879

Switch

$6.49

$

In Stock, only 3 left!

0

7

Poulan 530403886

Bolt-Carriage

$

$

Not available

8

Poulan 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

9

Poulan 545088401

Assy-Upper Tube

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 545045101

Nut-Collett

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 545088501

Assy-Lower Tube

$18.99

$

Usually ships in 3-10 days

0

12

Poulan 545076101

Housing Set

$

$

Not available

13

Poulan 530404076

Assy-Shield

Note: (Incl. line limiter)

$

$

Not available

14

Poulan 530402300

Assy-Motor/Hub
(Superseded to 530404110)

$

$

Not available

15

Poulan 530401957

Retainer-Spool

$4.99

$

In Stock, only 4 left!

0

16

Poulan 530401958

Spring-Return

$4.99

$

In Stock, Qty 6

0

17

Poulan 952701663

Accy-Spool w/Line

$

$

Not available

17

Poulan 545117537

Operator Manual

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 545052901

Decal-Warning

Note: Not Shown

$

$

Not available
