RT 10 - Weed Eater String Trimmer, Electric Product Complete Parts Diagram

String Trimmer, Electric

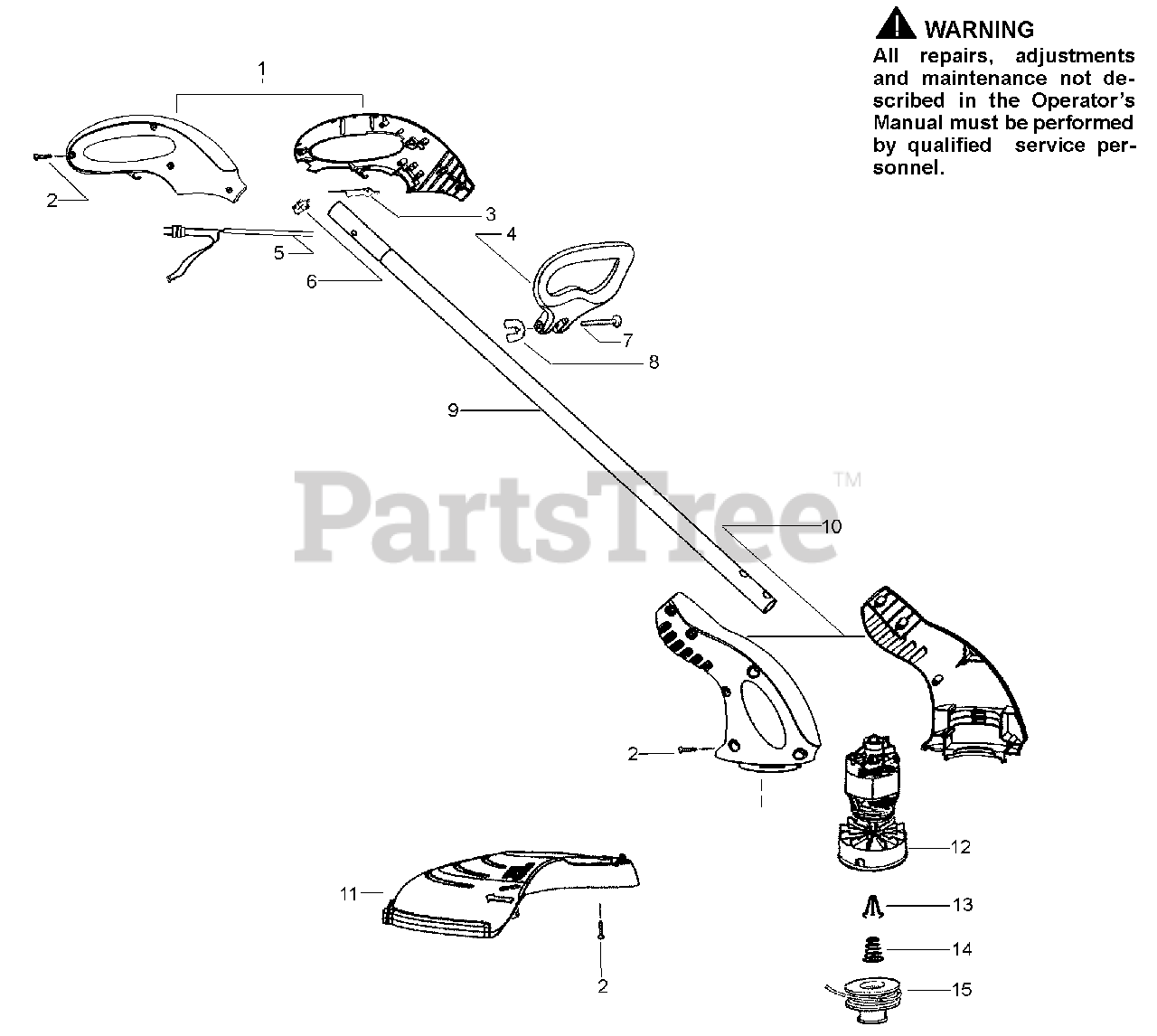

Product Complete Parts Diagram

  • Title

1

Poulan 530403945

Handle Set

$9.99

$

Usually ships in 3-10 days

0

2

Poulan 530016120

Screw

$3.99

$

In Stock, Qty 9

0

3

Poulan 530403818

Trigger

$

$

Not available

4

Poulan 530403805

Assist Handle

$

$

Not available

5

Poulan 530403908

Wiring Harness Ass'y.

Note: (Incl. #6)

$

$

Not available

6

Poulan 530402879

Switch

$6.49

$

In Stock, only 3 left!

0

7

Poulan 530403886

Bolt

$

$

Not available

8

Poulan 530016118

Wingnut
(Superseded to 530091373)

$2.49

$

In Stock, only 1 left!

0

9

Poulan 530403957

Tube Ass'y. w/Decal

$

$

Not available

10

Poulan 530403946

Housing Set

$9.99

$

Usually ships in 3-10 days

0

11

Poulan 530404080

Shield Ass'y.

Note: (Incl. line limiter)

$

$

Not available

12

Poulan 530402300

Motor/Hub Ass'y.
(Superseded to 530404110)

$

$

Not available

13

Poulan 530401957

Retainer-Spool

$4.99

$

In Stock, only 4 left!

0

14

Poulan 530401958

Spring-Return

$4.99

$

In Stock, Qty 6

0

15

Poulan 952701663

Accy-Spool w/Line

$

$

Not available

15

Poulan 530086306

Operator Manual

Note: Not Shown

$

$

Not available

15

Poulan 530403941

Decal-Warning

Note: Not Shown

$

$

Not available

15

Poulan 530403942

Decal-Housing (right)

Note: Not Shown

$

$

Not available

15

Poulan 530403943

Decal-Housing (left)

Note: Not Shown

$

$

Not available
