RSTC1-590770 - Tecumseh Starter Recoil Starter Parts Diagram

Starter

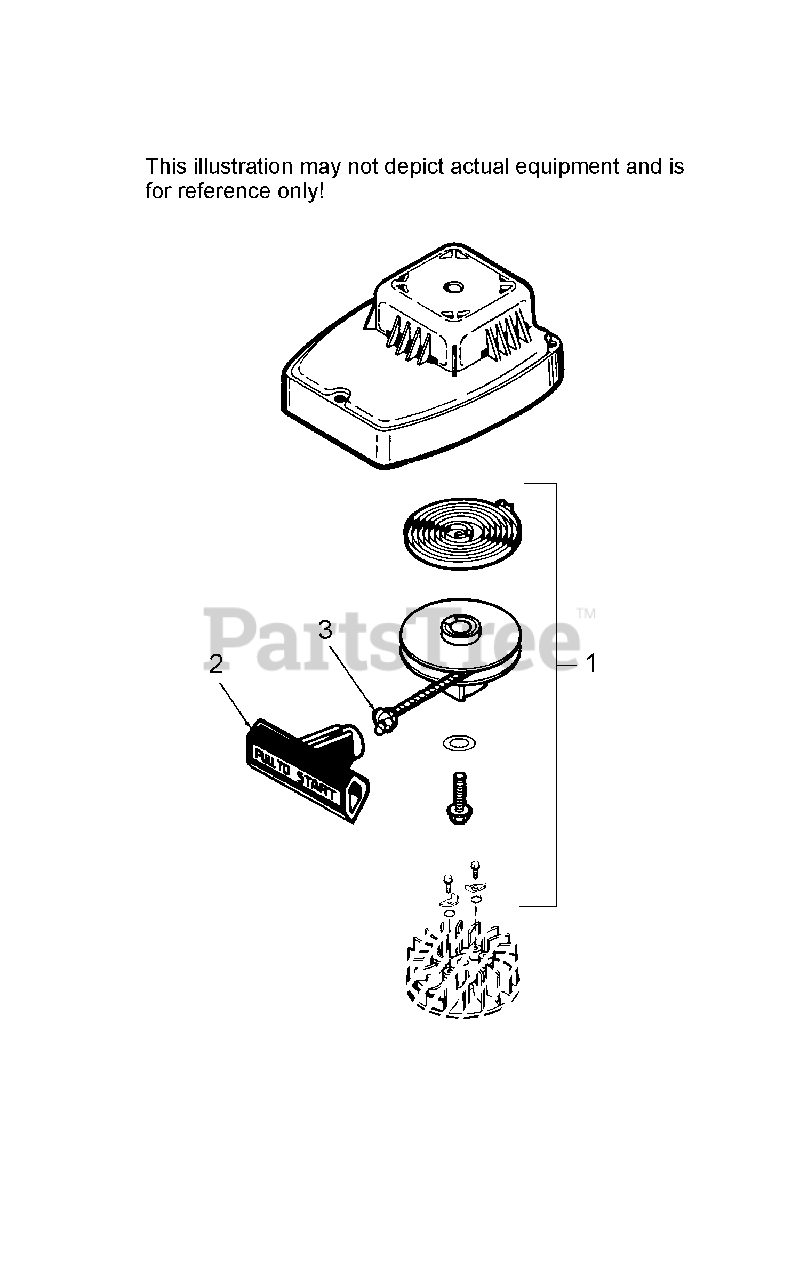

Recoil Starter Parts Diagram

  • Title

Tecumseh 590770

"Rewind Starter & Housing Assembly
(Superseded to 590782)

$81.99

$

In Stock, only 4 left!

0

1

Tecumseh 650867

Retainer Screw, 10-24 x 1/2"

$1.99

$

In Stock, only 4 left!

0

3

Tecumseh 650985

Pawl Screw, 12-24 x 11/64"
(Superseded to 590779)

$20.99

$

In Stock, only 1 left!

0

4

Tecumseh 650147

Flat Washer

$1.99

$

In Stock, only 1 left!

0

5

Tecumseh 590691

Pawl Spring
(Superseded to 590779)

$20.99

$

In Stock, only 1 left!

0

6

Tecumseh 590692

Starter Pawl
(Superseded to 590779)

$20.99

$

In Stock, only 1 left!

0

8

Tecumseh 590693

Starter Pulley
(Superseded to 590779)

$20.99

$

In Stock, only 1 left!

0

9

Tecumseh 590562

Rewind Spring
(Superseded to 590777)

$13.99

$

In Stock, only 1 left!

0

12

Tecumseh 590639

Starter Rope (42.5")

$6.49

$

Usually ships in 3-12 days

0

13

Tecumseh 590701

Starter Handle

$6.49

$

In Stock, only 2 left!

0
