RS5500 (0066720) - Generac Portable Generator (SN: 8802103A - 9786017A) (2015) Cylinder Head Parts Diagram
Portable Generator

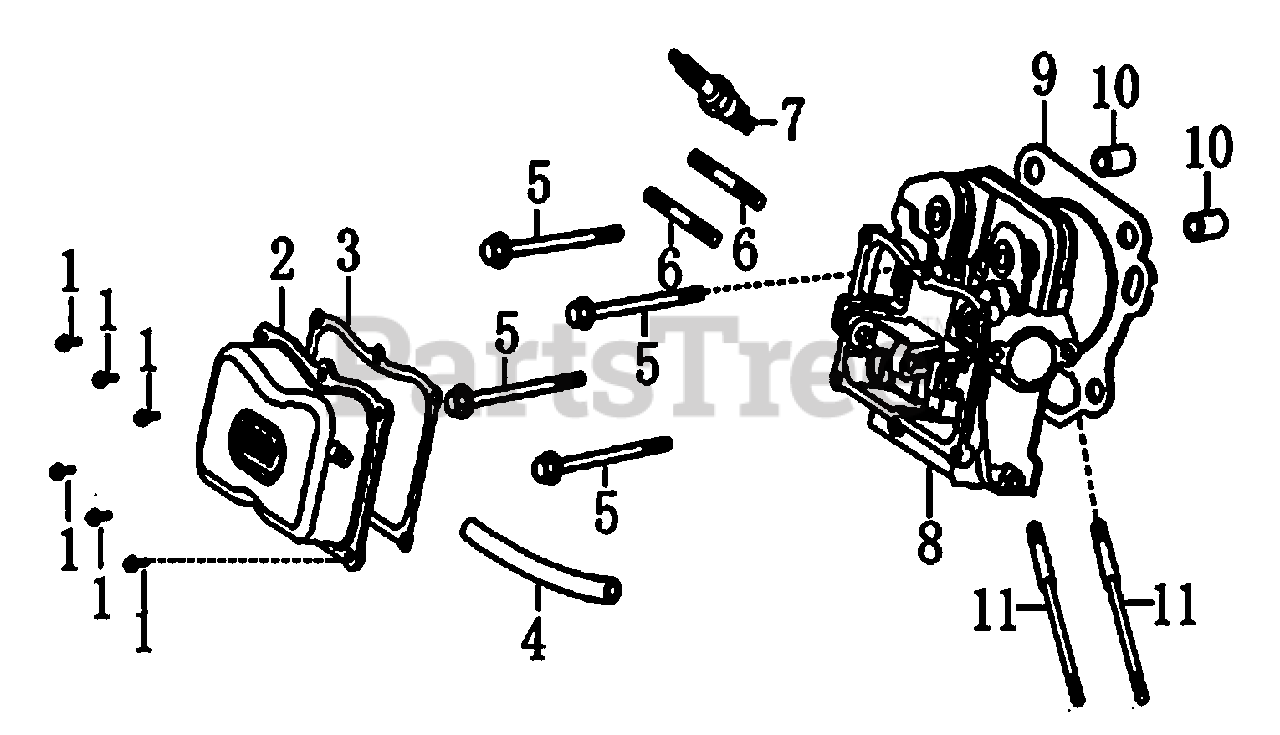

Cylinder Head Parts Diagram
Generac 0J35240147
BOLT, FLANGE
$0.99
$
Usually ships in 2-12 days
Generac 0J39340112
COVER, HEAD
$34.99
$
In Stock, only 1 left!
Generac 0J39340113
GASKET, HEAD COVER
$7.49
$
In Stock, only 2 left!
Generac 0J39340114
TUBE, BREATHER
$8.99
$
Usually ships in 2-12 days
Generac 0G84420211
BOLT, HEAD, 10X80
$5.99
$
In Stock, only 4 left!
Generac 0G84420210
BOLT, STUD, EXHAUST
$2.99
$
Usually ships in 2-12 days
Generac 0J00620106
SPARK PLUG
$22.99
$
Usually ships in 2-12 days
Generac 0J39340115
HEAD, CYLINDER
(Superseded to 0K56930SRV)
Note: IF ONLY HEAD CASTING IS NEEDED ORDER 0K56930SRV. IF AN ENTIRE HEAD REBUILD KIT IS NEEDED, ORDER 0K5693ASRV.
$259.99
$
In Stock, Qty 6
Generac 0J39340116
GASKET, CYLINDER HEAD
$12.99
$
In Stock, only 1 left!
Generac 0G84420212
PIN, DOWEL
$1.49
$
In Stock, Qty 6
Generac 0K0090
BOLT, STUD, INTAKE
$5.99
$
In Stock, only 2 left!
