RS-S - Scag Riding Sulky (SN: E3500001 - E3599999) RS-S Assembly Parts Diagram

Riding Sulky

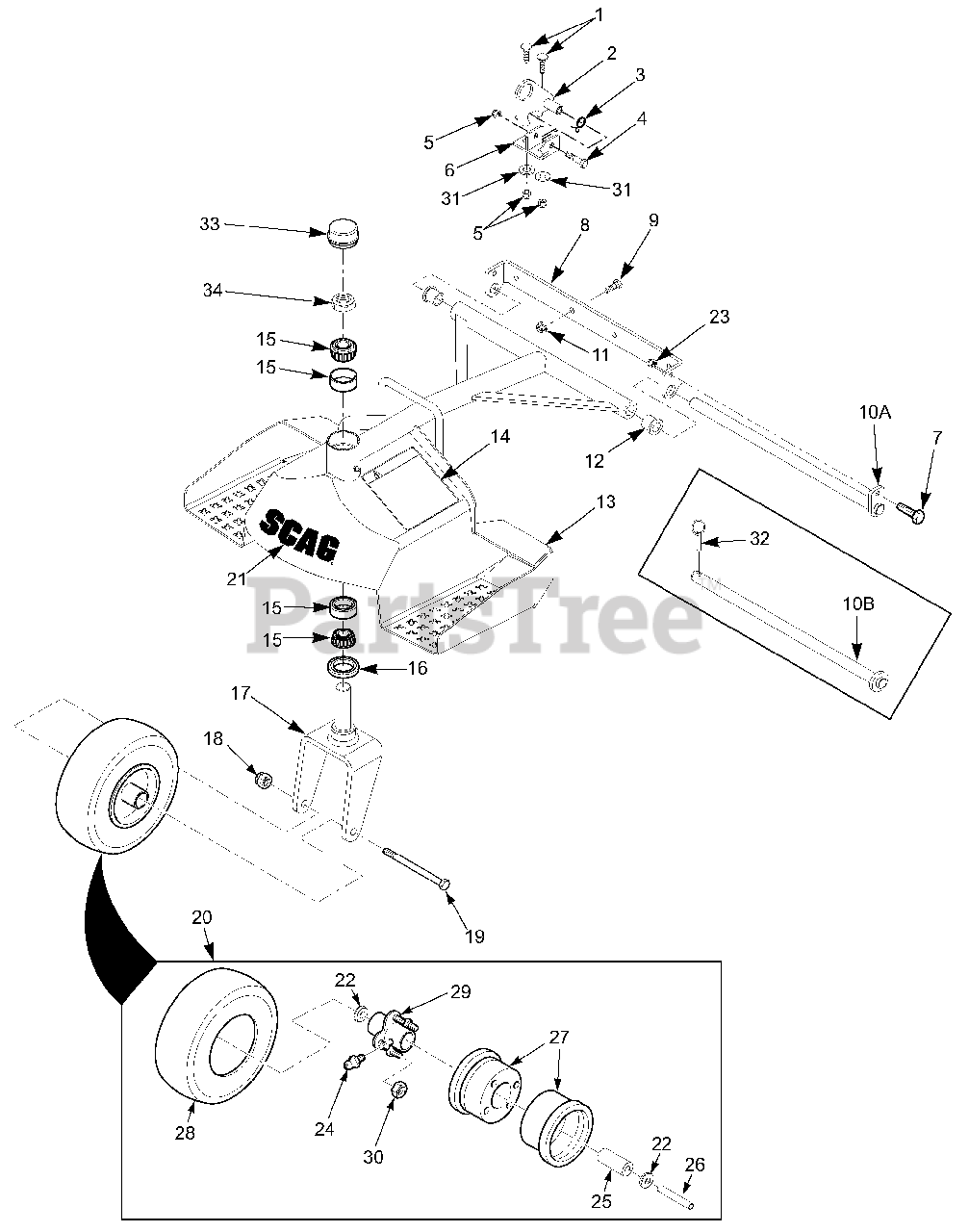

RS-S Assembly Parts Diagram

  • Title

1

Scag 04003-23

Bolt, Carriage 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

2

Scag 452012

Latch Weldment

$28.99

$

Usually ships in 2-12 days

0

3

Scag 483779

Spring, Latch

$15.99

$

Usually ships in 2-12 days

0

4

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

5

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

6

Scag 452011

Mounting Bracket Weldment

$23.99

$

Usually ships in 2-12 days

0

7

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

8

Scag 424853

Mounting Bracket, Sulky

$79.99

$

Usually ships in 2-12 days

0

9

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 20+

0

10A

Scag 452010

Mounting Shaft Weldment
(Superseded to 462178)

$46.99

$

Usually ships in 2-12 days

0

10B

Scag 452067

Mounting Shaft Weldment
(Superseded to 462178)

$46.99

$

Usually ships in 2-12 days

0

11

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

12

Scag 48100-24

Bushing, Bronze

$3.49

$

In Stock, only 1 left!

0

13

Scag 462153

Sulky Weldment
(Superseded to 462660)

Note: Incl. #12, 14, 21

$1319.99

$

Usually ships in 2-12 days

0

14

Scag 483777

Decal, Warning

$

$

Not available

15

Scag 481657

Bearing
(Superseded to 48668)

$23.99

$

In Stock, Qty 20+

0

16

Scag 481025

Seal, 2" O.D. x 1.625" Bore

$4.99

$

In Stock, Qty 20+

0

17

Scag 452000

Yoke Weldment

$114.99

$

Usually ships in 2-12 days

0

18

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

19

Scag 04001-37

Bolt, Hex Head 1/2-13 x 5-1/2"

$4.49

$

In Stock, Qty 20+

0

20

Scag 48307

Caster Wheel Assy.

$151.99

$

Usually ships in 2-12 days

0

21

Scag 48314

Decal, Scag Logo

$2.49

$

In Stock, Qty 8

0

22

Scag 481770

Bearing, Oilite

$4.99

$

In Stock, Qty 20+

0

23

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

24

Scag 48114-03

Grease Fitting, 45 Degree 1/4-28

$10.99

$

In Stock, Qty 16

0

25

Scag 481769

Roller Bearing

$27.99

$

In Stock, Qty 20+

0

26

Scag 43022

Sleeve, Caster Wheel Bearing

$6.99

$

In Stock, Qty 20+

0

27

Scag 481772

Rim Pair, Caster Wheel

$70.99

$

In Stock, only 1 left!

0

28

Scag 481774

Tire Only, Caster Wheel

$87.99

$

Usually ships in 2-12 days

0

Scag 481773

Inner Tube Only

Note: Not shown

$20.99

$

In Stock, only 2 left!

0

29

Scag 481768

Hub Assy.

$64.99

$

Usually ships in 2-12 days

0

30

Scag 481771

Tapered Nut, 5/16-24

$1.49

$

Usually ships in 2-12 days

0

31

Scag 04043-04

Flatwasher, 3/8

$0.99

$

In Stock, Qty 20+

0

32

Scag 04066-02

Quick Pin

$4.49

$

In Stock, only 4 left!

0

33

Scag 481559

Cap, Grease

$6.99

$

In Stock, Qty 20+

0

34

Scag 04021-20

Nut, Elastic Stop 1.0"-14

$4.99

$

In Stock, Qty 20+

0
