RS 622 (22ASDDAE037) - MTD RoboMow Robotic Mower (2018) General Assembly Parts Diagram

RoboMow Robotic Mower

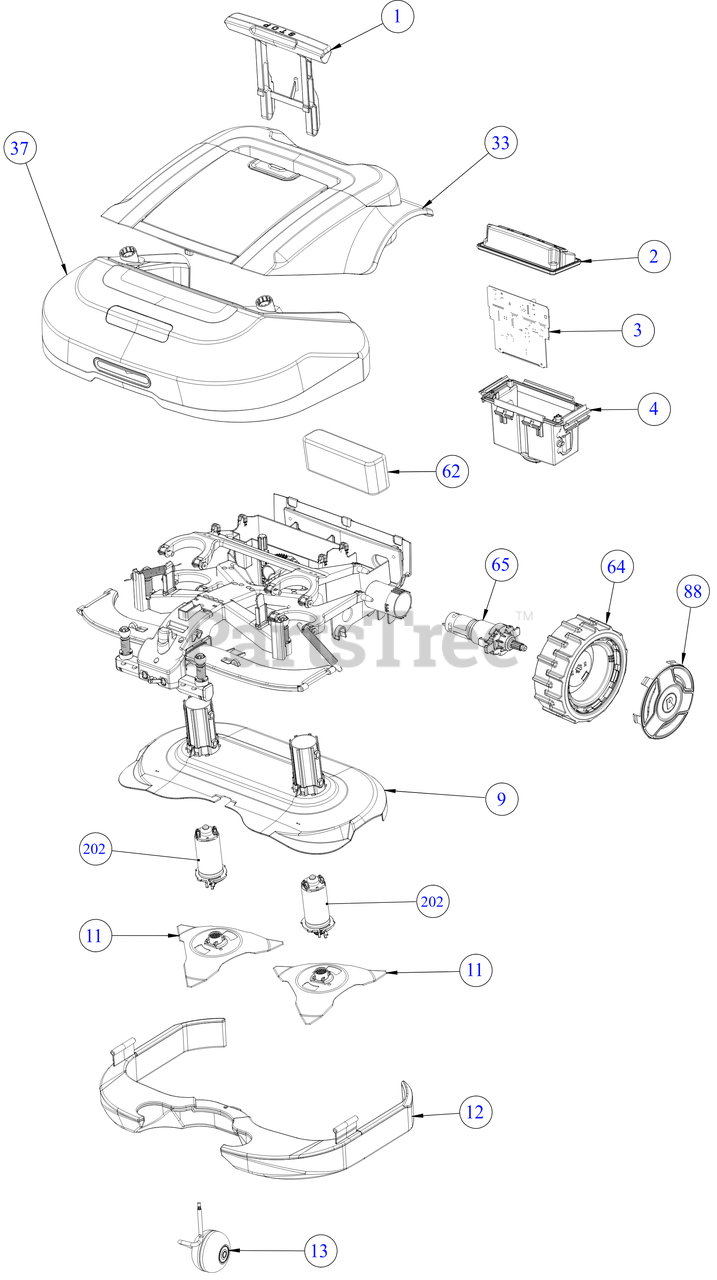

General Assembly Parts Diagram

  • Title

1

MTD FR-MSB6310B

CARRYING AND STOP HANDLE

$65.99

$

Usually ships in 3-6 days

0

2

MTD FR-MSB6340B

LCD PANEL ASSEMBLY
(Superseded to FRPMSB6340B)

$255.99

$

Usually ships in 3-6 days

0

4

MTD FR-MSB6320A

C-BOX ASSEMBLY

$60.99

$

Usually ships in 3-6 days

0

5

MTD FR-SPP6109A

DRIVE MOTOR ASSEMB
(Superseded to FR-SMSB6206B)

$294.99

$

Usually ships in 3-6 days

0

8

MTD FR-INJ6160A

WHEEL LOCK

$7.49

$

Usually ships in 3-6 days

0

9

MTD FR-MSB6003B

MOWING DECK ASSEMB

$176.99

$

Usually ships in 3-6 days

0

11

MTD FR-MRK6101A

2 BLADE KIT-RS MOD

$139.99

$

Usually ships in 3-6 days

0

12

MTD FR-MSB6004C

FLOATER ASSEMBLY

$193.99

$

Usually ships in 3-6 days

0

13

MTD FR-MSB6007D

FRONT WHEEL ASSEMBLY (2014)

$121.99

$

Usually ships in 3-6 days

0

14

MTD FR-INJ6580A

WIRE LOCKER

$3.99

$

Usually ships in 3-6 days

0

15

MTD FR-INJ6071A

MOWING UPPER ARM

$34.99

$

Usually ships in 3-6 days

0

16

MTD FR-INJ6040A

MOWING MOTOS LOCKE

$9.49

$

Usually ships in 3-6 days

0

17

MTD FR-INJ6072A

MOWING LOWER ARM

$34.99

$

Usually ships in 3-6 days

0

18

MTD FR-MSB6002B

BALL JOINT ASSEMBL

$26.99

$

Usually ships in 3-6 days

0

19

MTD FR-GEN6020B

SHAFT-PARRAL ASSEM

$28.99

$

Usually ships in 3-6 days

0

20

MTD FR-GEN6018A

FLOATER SPRING

$28.99

$

Usually ships in 3-6 days

0

21

MTD FR-INJ6082B

WING LEFT

$7.49

$

Usually ships in 3-6 days

0

22

MTD FR-GEN6009B

WING TO FLOATER SHAFT

$7.49

$

Usually ships in 3-6 days

0

23

MTD FR-INJ6200B

WIRE SENSOR CAP

$7.49

$

Usually ships in 3-6 days

0

24

MTD FR-GEN6008A

Y SHAFT TO WING

$8.99

$

Usually ships in 3-6 days

0

25

MTD FR-GEN6017A

MOWING DECK SPRING

$31.99

$

Usually ships in 3-6 days

0

27

MTD FR-INJ6081B

WING RIGHT

$7.49

$

Usually ships in 3-6 days

0

29

MTD FR-MSB6173A

FRONT WHEEL MAGNET

$15.99

$

Usually ships in 3-6 days

0

31

MTD FR-SPP6104A

CHASSIS ASS S MODE

$

$

Not available

32

MTD FR-INJ6480A

Y ARM SNAP

$22.99

$

Usually ships in 3-6 days

0

33

MTD FR-MSB6008B

COVER ASSEMBLY (GREEN)

$179.99

$

Usually ships in 3-6 days

0

34

MTD FR-SPP6009A

RS DOOR SHUTTER KIT

$48.99

$

Usually ships in 3-6 days

0

36

MTD FR-INJ6550A

C-BOX RUBBER DOOR

$

$

Not available

37

MTD FR-MSB6001A

BUMPER ASSEMBLY BLACK

$147.99

$

Usually ships in 3-6 days

0

38

MTD FR-INJ6260A

LIGHT COVER-BUMPER

$26.99

$

Usually ships in 3-6 days

0

39

MTD FR-INJ6274A

BUMPER HANG CAVITY

$

$

Not available

40

MTD FR-INJ6371A

BUZZER BRACKET

$7.49

$

Usually ships in 3-6 days

0

41

MTD FR-BUZ6000G

PIEZO BUZZER W/CAB

$9.49

$

Usually ships in 3-6 days

0

42

MTD FR-MSB6391A

BASE STATION W/O H

$218.99

$

Usually ships in 3-6 days

0

43

MTD FR-GEN0223B

FASTENING STAKES-B

$5.49

$

Usually ships in 3-6 days

0

47

MTD FR-WSB6015D

20M CABLE-PBOX TO STATION

$129.99

$

Usually ships in 3-6 days

0

49

MTD FR-WSB6002C

WIRE SENSORS CABLE W/HOLDERS

$96.99

$

Usually ships in 3-6 days

0

50

MTD FR-SPP6105A

FUSE-BATTERY CABLE

$74.99

$

Usually ships in 3-6 days

0

51

MTD FR-WSB6004D

MAIN BOARD TO DRIVE MOTOR CABLE

$77.99

$

Usually ships in 3-6 days

0

52

MTD FR-WSB6012D

MAIN BOARD TO BATTERY CELLS CABLE

$64.99

$

Usually ships in 3-6 days

0

55

MTD FR-SPP6107A

FUSE THREAD

$22.99

$

Usually ships in 3-6 days

0

56

MTD FR-FUS6000A

FUSE-32V/20A FAST

$7.49

$

Usually ships in 3-6 days

0

57

MTD FR-INJ6750D

FRONT WHEEL SLEEVE

$5.49

$

Usually ships in 3-6 days

0

62

MTD FR-MRK6105A

BATTERY-RS612/RS62
(Superseded to FR-P-MRK6105A)

$547.99

$

Usually ships in 3-6 days

0

64

MTD FR-MRK6107A

POWER WHEELS (W/CAP)

$143.99

$

Usually ships in 3-6 days

0

65

MTD FR-SMSB6206B

HD DRIVE MOTOR ASMALUMINUM SPLINE

$294.99

$

Usually ships in 3-6 days

0

66

MTD FR-SPP6208A

RS MAIN RED (2018)

$526.99

$

Usually ships in 3-6 days

0

67

MTD FR-ESB6203C1

FRONT BOARD S (2018 RED)

$88.99

$

Usually ships in 3-6 days

0

70

MTD FR-SMSB6203A

RS CHARGING ADAPTOR (2018)
(Superseded to FR-SPP6130A)

$260.99

$

Usually ships in 3-6 days

0

71

MTD FR-WSB6001H

MAIN BOARD TO FRT WHEEL CABLE (18)

$49.99

$

Usually ships in 3-6 days

0

72

MTD FR-WSB6023A

RS COMM/GSM SPLIT CABLE PCG6200

$14.99

$

Usually ships in 3-6 days

0

73

MTD FR-SPP0112A

GSM/RCM (ALL MODELS)
(Superseded to FR-ESB7020B2)

$299.99

$

Usually ships in 3-6 days

0

88

MTD FR-INJ6991A

RS PREMIUM TAS

$11.99

$

Usually ships in 3-6 days

0

202

MTD FR-SPP6111A

MOWING MOTOR BRUSH

$223.99

$

Usually ships in 3-6 days

0

203

MTD FR-GEN6034B

POWER BOX HANGING BRACKET

$25.99

$

Usually ships in 3-6 days

0

204

MTD FR-SCR6000A

SCREW + "DIBEL" X 2 KIT

$5.99

$

Usually ships in 3-6 days

0

207

MTD FR-CON0144G

MINI JUMPER 2.54MM

$

$

Not available

208

MTD FR-GEN0175A

STAKE-PERIMETER SW

$6.49

$

Usually ships in 3-6 days

0

210

MTD FR-UNT5007C

PERIMETER SWITCH (ESB5009F)

$

$

Not available

211

MTD FR-MRK5006A

BATTERY PACK-PERIM

$150.99

$

Usually ships in 3-6 days

0

212

MTD FR-GEN0176A

PERIMETER SWITCH B

$

$

Not available

213

MTD FR-STC5009B

PERIMETER SWITCH STICKER

$12.99

$

Usually ships in 3-6 days

0

MTD FR-CON0054A

PLOT CONNECTOR

Note: (Not Shown)

$

$

Not available

MTD FR-DOC6010D

ROBORULER 40CM

Note: (Not Shown)

$21.99

$

Usually ships in 3-6 days

0

MTD FR-GEN6012A

HANDLE ROD

Note: (Not Shown)

$4.49

$

Usually ships in 3-6 days

0

MTD FR-GEN6015A

HANDLE SPRING

Note: (Not Shown)

$4.99

$

Usually ships in 3-6 days

0

MTD FR-GEN6019A

SPRING-ADJUSTMENT

Note: (Not Shown)

$6.99

$

Usually ships in 3-6 days

0

MTD FR-GEN6038A

STARLOCK 8060 5MM

Note: (Not Shown)

$12.99

$

Usually ships in 3-6 days

0

MTD FR-GEN6041A

SWITCH RUBBER CUP

Note: (Not Shown)

$6.49

$

Usually ships in 3-6 days

0

MTD FR-GEN6053B

BATTERY SHIELD

Note: (Not Shown)

$44.99

$

Usually ships in 3-6 days

0

MTD FR-GEN6061A

METAL SHELF

Note: (Not Shown)

$20.99

$

Usually ships in 3-6 days

0

MTD FR-GEN6063A

FLOATER SPRING (THICK)

Note: (Not Shown)

$24.99

$

Usually ships in 3-6 days

0

MTD FR-INJ6020A

MOWING FLANGE

Note: (Not Shown)

$3.99

$

Usually ships in 3-6 days

0

MTD FR-INJ6081C

WING RIGHT WITH FLOATER LIMITER

Note: (Not Shown)

$70.99

$

Usually ships in 3-6 days

0

MTD FR-INJ6082C

WING LEFT WITH FLOATER LIMITER

Note: (Not Shown)

$61.99

$

Usually ships in 3-6 days

0

MTD FR-INJ6131A

ADJUSTMENT KNOB

Note: (Not Shown)

$6.99

$

Usually ships in 3-6 days

0

MTD FR-INJ6132A

ADJUSTMENT KNOB-LO

Note: (Not Shown)

$5.99

$

Usually ships in 3-6 days

0

MTD FR-INJ6140A

ADJUSTMENT KNOB

Note: (Not Shown)

$20.99

$

Usually ships in 3-6 days

0

MTD FR-GEN6069A

ALUMINUM RS DRIVE SPLINE

Note: (Not Shown)

$21.99

$

Usually ships in 3-6 days

0

MTD FR-INJ6181A

SHELTER LEG RIGHT

Note: (Not Shown)

$

$

Not available

MTD FR-INJ6182A

SHELTER LEG LEFT

Note: (Not Shown)

$

$

Not available

MTD FR-INJ6372A

MAINBOARD HOUSING

Note: (Not Shown)

$5.99

$

Usually ships in 3-6 days

0

MTD FR-INJ6383A

SHELTER SHAFT

Note: (Not Shown)

$

$

Not available

MTD FR-INJ6510A

IRDA MOUNT

Note: (Not Shown)

$19.99

$

Usually ships in 3-6 days

0

MTD FR-INJ6520A

WIRE SENSOR HOLDER

Note: (Not Shown)

$22.99

$

Usually ships in 3-6 days

0

MTD FR-INJ6570A

FUSE HOUSE HOLDER

Note: (Not Shown)

$5.99

$

Usually ships in 3-6 days

0

MTD FR-INJ6640C

IR HORN

Note: (Not Shown)

$5.49

$

Usually ships in 3-6 days

0

MTD FR-INJ6710A

KNOB COVER-ADJUSTM

Note: (Not Shown)

$7.99

$

Usually ships in 3-6 days

0

MTD FR-INJ6914A

SHELTER LEG INCLINE

Note: (Not Shown)

$16.99

$

Usually ships in 3-6 days

0

MTD FR-MRK0012A

PEGS-PACK OF 50

Note: (Not Shown)

$33.99

$

Usually ships in 3-6 days

0

MTD FR-MRK0040A

PERIMETER WIRE

Note: (Not Shown)

$74.99

$

Usually ships in 3-6 days

0

MTD FR-MRK7100A

BLUETOOTH REMOTE C

Note: (Not Shown)

$

$

Not available

MTD FR-MRK7101A

SHORT PEGS (PKG OF 50)

Note: (Not Shown)

$15.99

$

Usually ships in 3-6 days

0

MTD FR-MSB6030A

RS HEIGHT LIMITER ASSEMBLY

Note: (Not Shown)

$89.99

$

Usually ships in 3-6 days

0

MTD FR-MSB6500A

SHELTER COVER ASSEMBLY

Note: (Not Shown)

$

$

Not available

MTD FR-RNG0002A

RETAINING RING FOR 12MM SHF

Note: (Not Shown)

$4.49

$

Usually ships in 3-6 days

0

MTD FR-RNG6010A

SNAP RING FOR 6MM

Note: (Not Shown)

$6.99

$

Usually ships in 3-6 days

0

MTD FR-RNG6013A

WASHER M6X11X1.6 DIN 433 STEEL

Note: (Not Shown)

$4.49

$

Usually ships in 3-6 days

0

MTD FR-SCR5009A

SCREW-KA40 x 20 WN

Note: (Not Shown)

$3.99

$

Usually ships in 3-6 days

0

MTD FR-SCR6005A

TORX WN1451 K40 L1

Note: (Not Shown)

$3.99

$

Usually ships in 3-6 days

0

MTD FR-SCR6008A

EJOT WN 1452 K30 L

Note: (Not Shown)

$3.99

$

Usually ships in 3-6 days

0

MTD FR-SCR6009A

EJOT WN 1452 K30 L

Note: (Not Shown)

$4.49

$

Usually ships in 3-6 days

0

MTD FR-SCR6010A

EJOT WN 1452 K30 L

Note: (Not Shown)

$4.49

$

Usually ships in 3-6 days

0

MTD FR-SCR6012A

TOREXS M5 10MM-COL

Note: (Not Shown)

$3.99

$

Usually ships in 3-6 days

0

MTD FR-SPP6010A

RETROFIT RS RAIN SENSOR (100 PCS)

Note: (Not Shown)

$255.99

$

Usually ships in 3-6 days

0

MTD FR-SPP6011A

8X14X1 DIN 988 WASHERS (50 PACK)

Note: (Not Shown)

$4.49

$

Usually ships in 3-6 days

0

MTD FR-SPP6117A

ADAPTOR FOR LARGE PERIMETER S

Note: (Not Shown)

$24.99

$

Usually ships in 3-6 days

0

MTD FR-STC6001A

SIDE DANGER STICKER

Note: (Not Shown)

$

$

Not available

MTD FR-STC6002A

REAR 7 WARNING STICKER

Note: (Not Shown)

$19.99

$

Usually ships in 3-6 days

0

MTD FR-STC6003B

MOWING HEIGHT ADJUSTMENT STICKER

Note: (Not Shown)

$20.99

$

Usually ships in 3-6 days

0

MTD FR-STC6004B

MOWING HEIGHT MEASURE STICKER

Note: (Not Shown)

$17.99

$

Usually ships in 3-6 days

0

MTD FR-STC6010A

ON/OFF STICKER

Note: (Not Shown)

$18.99

$

Usually ships in 3-6 days

0

MTD FR-STC6036W

ALARM STICKER

Note: (Not Shown)

$16.99

$

Usually ships in 3-6 days

0

MTD FR-TOL0006B

BLADE REMOVAL TOOL

Note: (Not Shown)

$24.99

$

Usually ships in 3-6 days

0

MTD FR-TOL6105A

S DRIVE SPLINE REPLACE TOOL

Note: (Not Shown)

$

$

Not available

MTD FR-WSB0101C

USB2RS232 UP TO WIN8

Note: (Not Shown)

$137.99

$

Usually ships in 3-6 days

0
