RS 612 (22BSBDAE737) - MTD RoboMow Robotic Mower (2019) General Assembly Parts Diagram

RoboMow Robotic Mower

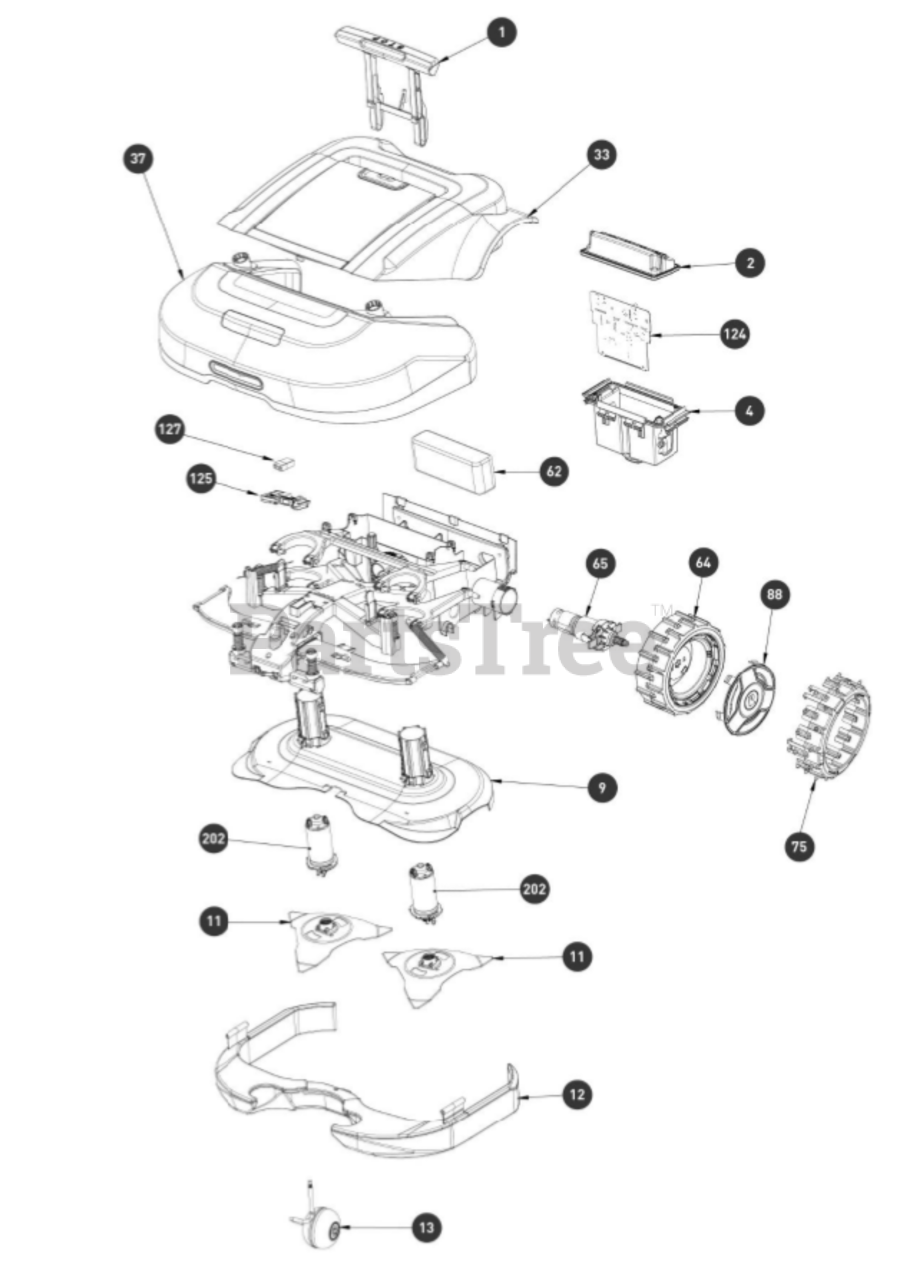

General Assembly Parts Diagram

  • Title

1

MTD FR-MSB6310B

CARRYING AND STOP HANDLE

$65.99

$

Usually ships in 3-6 days

0

2

MTD FR-MSB6340B

LCD PANEL ASSEMBLY
(Superseded to FRPMSB6340B)

$255.99

$

Usually ships in 3-6 days

0

4

MTD FR-MSB6320A

C-BOX ASSEMBLY

$60.99

$

Usually ships in 3-6 days

0

9

MTD FR-MSB6003B

MOWING DECK ASSEMB

$176.99

$

Usually ships in 3-6 days

0

11

MTD FR-MRK6108A

HIGH CUT BLADE SET KIT

$139.99

$

Usually ships in 3-6 days

0

11

MTD FR-MRK6101A

2 BLADE KIT-RS MOD

$139.99

$

Usually ships in 3-6 days

0

12

MTD FR-MSB6004C

FLOATER ASSEMBLY

$193.99

$

Usually ships in 3-6 days

0

13

MTD FR-MSB6007D

FRONT WHEEL ASSEMBLY (2014)

$121.99

$

Usually ships in 3-6 days

0

33

MTD FR-MSB6008B

COVER ASSEMBLY (GREEN)

$179.99

$

Usually ships in 3-6 days

0

33

MTD FR-SPP6009A

RS DOOR SHUTTER KIT

$48.99

$

Usually ships in 3-6 days

0

37

MTD FR-MSB6001A

BUMPER ASSEMBLY BLACK

$147.99

$

Usually ships in 3-6 days

0

62

MTD FR-MRK6105A

BATTERY-RS612/RS62
(Superseded to FR-P-MRK6105A)

$547.99

$

Usually ships in 3-6 days

0

64

MTD FR-SPP6014A

POWER WHEEL S

$89.99

$

In Stock, only 1 left!

0

64

MTD FR-MRK6107A

POWER WHEELS (W/CAP)

$143.99

$

Usually ships in 3-6 days

0

64

MTD FR-INJ6160A

WHEEL LOCK

$7.49

$

Usually ships in 3-6 days

0

65

MTD FR-SMSB6206B

HD DRIVE MOTOR ASMALUMINUM SPLINE

$294.99

$

Usually ships in 3-6 days

0

75

MTD FR-MRK6022A

ROBOGRIPS (RS)

$51.99

$

Usually ships in 3-6 days

0

88

MTD FR-INJ6991A

RS PREMIUM TAS

$11.99

$

Usually ships in 3-6 days

0

124

MTD FR-SPP6208B

RS MAIN BOARD (2019)

$563.99

$

Usually ships in 3-6 days

0

125

MTD FR-ESB7020B1

GSM W/GPS US (CATM1)
(Superseded to FR-ESB7020B2)

$299.99

$

Usually ships in 3-6 days

0

127

MTD FR-BAT0008A

9V BATTERY

$20.99

$

Usually ships in 3-6 days

0

127

MTD FR-INJ0500A

9V BATTERY CASE

$3.99

$

Usually ships in 3-6 days

0

127

MTD FR-INJ0501A

9V BATTERY COVER

$2.99

$

Usually ships in 3-6 days

0

127

MTD FR-WSB6025B

9V BATTERY CABLE

$4.99

$

Usually ships in 3-6 days

0

202

MTD FR-SPP6111A

MOWING MOTOR BRUSH

$223.99

$

Usually ships in 3-6 days

0

MTD FR-MRK0038A

PLOT CONNECTORS

Note: NOT SHOWN

$35.99

$

Usually ships in 3-6 days

0

MTD FR-DOC6010D

ROBORULER 40CM

Note: NOT SHOWN

$21.99

$

Usually ships in 3-6 days

0

MTD FR-ESB6303A2

RS FRONT BOARD (2019)

Note: NOT SHOWN

$162.99

$

Usually ships in 3-6 days

0

MTD FR-GEN0175A

STAKE-PERIMETER SW

Note: NOT SHOWN

$6.49

$

Usually ships in 3-6 days

0

MTD FR-GEN0176A

PERIMETER SWITCH B

Note: NOT SHOWN

$

$

Not available

MTD FR-GEN6034B

POWER BOX HANGING BRACKET

Note: NOT SHOWN

$25.99

$

Usually ships in 3-6 days

0

MTD FR-STC5004C

DANGER STICKER

Note: NOT SHOWN

$3.49

$

Usually ships in 3-6 days

0

MTD FR-STC6004B

MOWING HEIGHT MEASURE STICKER

Note: NOT SHOWN

$17.99

$

Usually ships in 3-6 days

0

MTD FR-STC6010A

ON/OFF STICKER

Note: NOT SHOWN

$18.99

$

Usually ships in 3-6 days

0

MTD FR-TOL0006B

BLADE REMOVAL TOOL

Note: NOT SHOWN

$24.99

$

Usually ships in 3-6 days

0
