RS-590429A - Tecumseh Starter Recoil Starter Parts Diagram

Starter

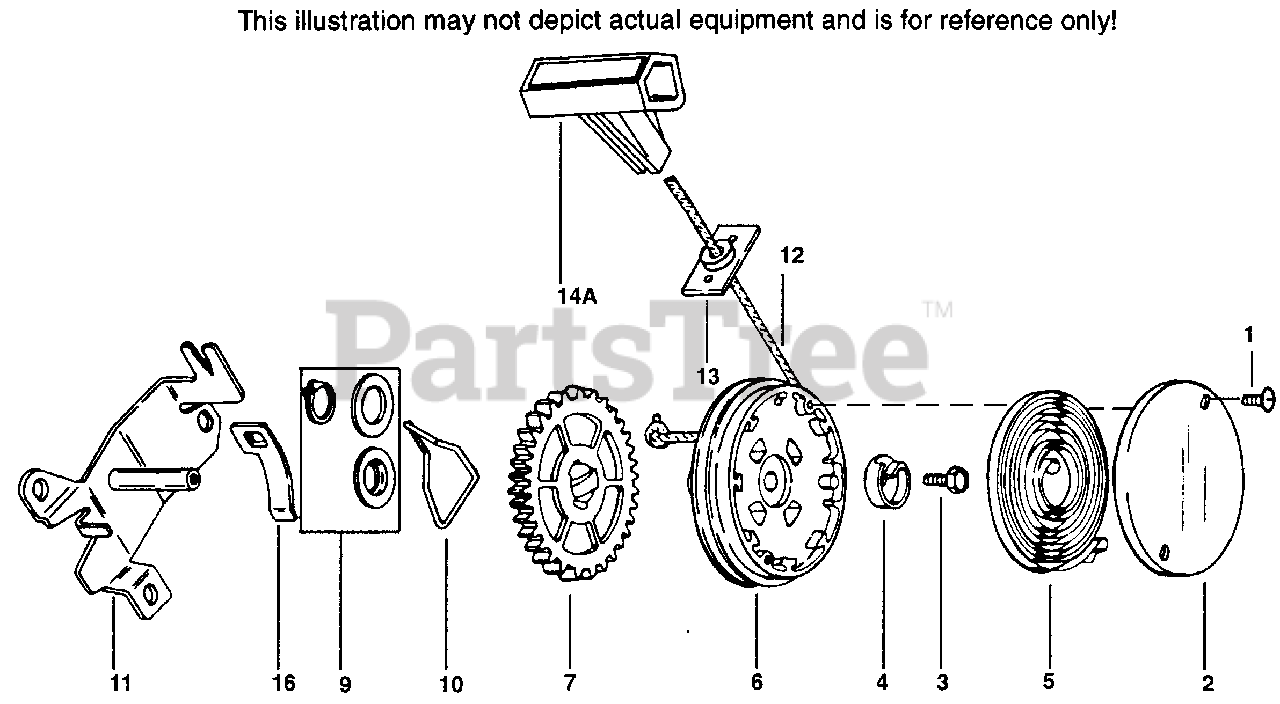

Recoil Starter Parts Diagram

  • Title

Tecumseh 590429A

"Recoil Starter
(Superseded to 590519)

$

$

Not available

1

Tecumseh 590477

Screw, Cover

$1.99

$

In Stock, only 4 left!

0

2

Tecumseh 590431

Cover, Spring

$5.99

$

Usually ships in 3-12 days

0

3

Tecumseh 590472

Screw, 10-32 x 5/8"

$1.99

$

Usually ships in 3-12 days

0

4

Tecumseh 590432

Hub, Spring

$5.49

$

Usually ships in 3-12 days

0

5

Tecumseh 590433

Spring, Rewind

$18.99

$

Usually ships in 3-12 days

0

6

Tecumseh 590434A

Pulley Assy. (Incl. 9)

$31.99

$

Usually ships in 3-12 days

0

7

Tecumseh 590435B

Gear

$

$

Not available

9

Tecumseh 590470

Kit, Thrust washer and snap ring

$5.49

$

Usually ships in 3-12 days

0

10

Tecumseh 590438

Brake

$1.99

$

Usually ships in 3-12 days

0

11

Tecumseh 590439A

Bracket Assy., Mounting (4 Cycle)

$13.99

$

Usually ships in 3-12 days

0

11A

Tecumseh 590444

Bracket Assy., Mounting (2 Cycle)

$

$

Not available

12

Tecumseh 590440

Rope & Retainer Assy., Starter Length 61" & 5/32" Dia.

$

$

Not available

13

Tecumseh 590441

Bracket Assy. Can be removed if notre q.

$7.99

$

Usually ships in 3-12 days

0

14

Tecumseh 590701

Handle Assy., Starter (Incl. 15) also available in 740033B Starter Rope & Handle Kit

$6.49

$

In Stock, only 3 left!

0

15

Tecumseh 590443

Insert, Handle
(Superseded to 590701)

$6.49

$

In Stock, only 3 left!

0

16

Tecumseh 590446

Clip, Rope

$3.99

$

Usually ships in 3-12 days

0

17

Tecumseh 590448

Retainer, Rope

$1.49

$

In Stock, only 1 left!

0
