RS 52 - Jonsered String Trimmer (2006-07) BEVEL GEAR Parts Diagram

String Trimmer

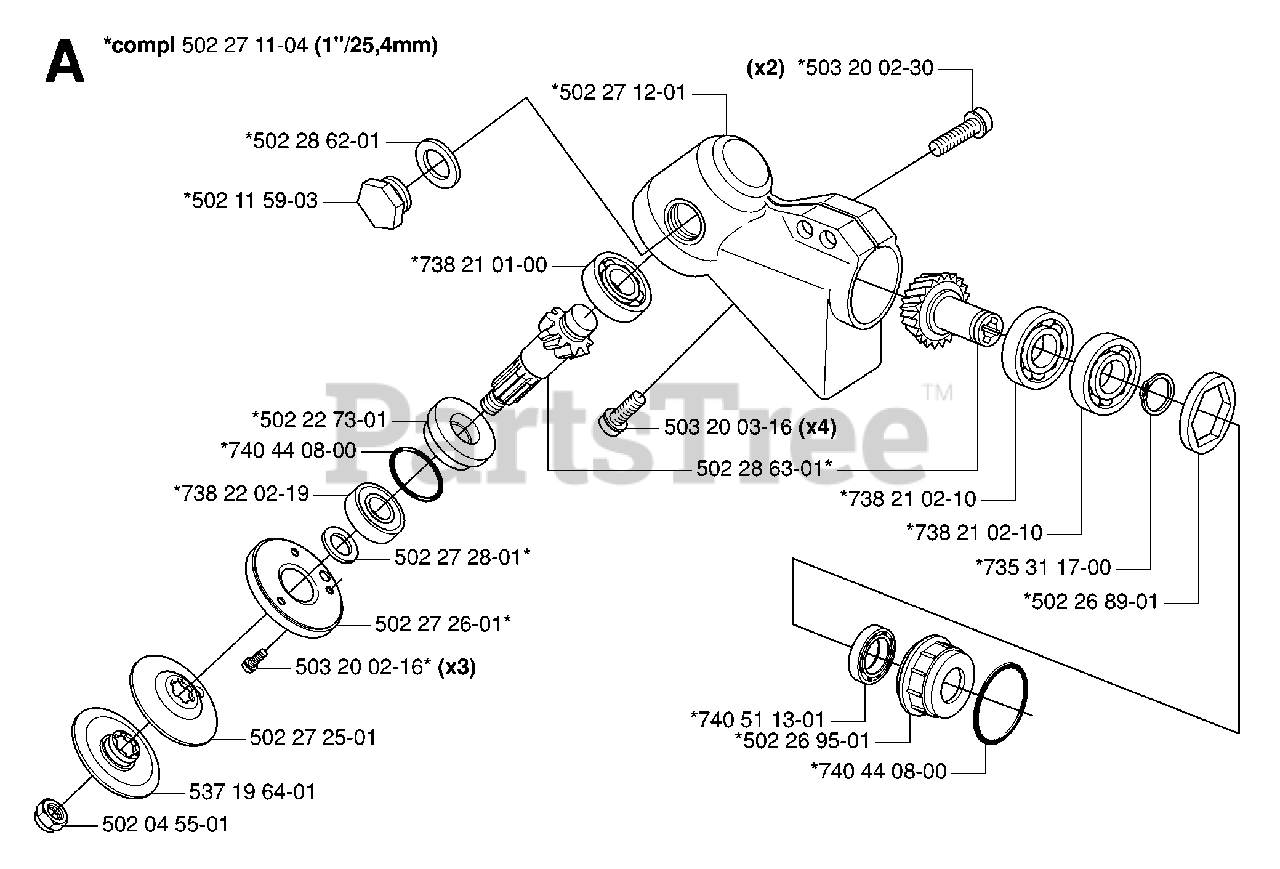

BEVEL GEAR Parts Diagram

  • Title
5022711-04

Jonsered 502271104

ANGLE GEAR COMPLETE

$364.99

$

Usually ships in 3-10 days

0

5022862-01

Jonsered 502286201

OIL PLUG WASHER

$

$

Not available

5021159-03

Jonsered 502115903

PLUG
(Superseded to 502115902)

$21.99

$

Usually ships in 3-10 days

0

5022273-01

$19.00

$

Usually ships in 3-10 days

0

7404408-00

$3.49

$

Usually ships in 3-10 days

0

7382202-19

Jonsered 738220219

BALL BEARING 6202-2RS1

$35.99

$

Usually ships in 3-10 days

0

5022728-01

Jonsered 502272801

SEAL RING

$3.49

$

Usually ships in 3-10 days

0

5022726-01

Jonsered 502272601

GEAR COVER

$

$

Not available

5032002-16

$4.99

$

In Stock, Qty 20+

0

5022725-01

$56.99

$

Usually ships in 3-10 days

0

5371964-01

$

$

Not available

5020455-01

Jonsered 502045501

LOCKNUT 12X1.75

$7.49

$

In Stock, only 3 left!

0

7404408-00

$3.49

$

Usually ships in 3-10 days

0

5022695-01

$

$

Not available

7405113-01

Jonsered 740511301

SEALING RING

$

$

Not available

5022863-01

$

$

Not available

5032003-16

$6.49

$

In Stock, Qty 20+

0

7382101-00

Jonsered 738210100

BALL BEARING 6001-C3
(Superseded to 738210110)

$24.99

$

Usually ships in 3-10 days

0

5022712-01

Jonsered 502271201

GEAR HOUSING

$

$

Not available

5032002-30

$6.49

$

In Stock, only 1 left!

0

7382102-10

Jonsered 738210210

BALL BEARING

$

$

Not available

7382102-10

Jonsered 738210210

BALL BEARING

$

$

Not available

7353117-00

Jonsered 735311700

RETAINING RING SGA 15

$3.49

$

In Stock, Qty 7

0

5022689-01

Jonsered 502268901

STOP RING

$

$

Not available
