RS 52 - Jonsered String Trimmer (2002-08) CARBURETOR DETAILS Parts Diagram

String Trimmer

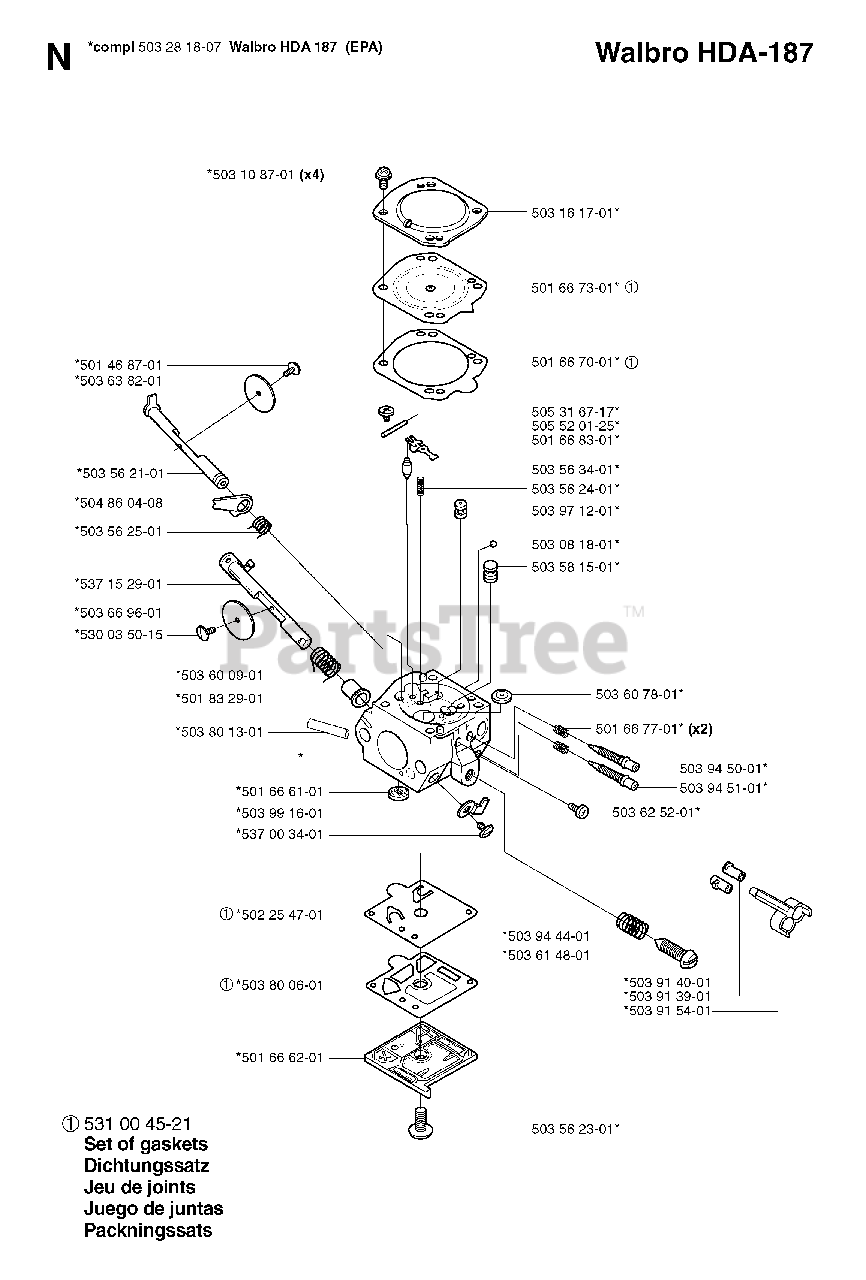

CARBURETOR DETAILS Parts Diagram

  • Title
5032818-07

Jonsered 503281807

CARBURETOR

Note: WALBRO HDA 187 (EPA)

$

$

Not available

5031087-01

Jonsered 503108701

SCREW W/ WASHER
(Superseded to 503584601)

$4.99

$

In Stock, only 4 left!

0

5014687-01

$7.99

$

Usually ships in 3-10 days

0

5036382-01

Jonsered 503638201

CHOKE VALVE

$2.49

$

Usually ships in 3-10 days

0

5035621-01

Jonsered 503562101

CHOKE SHAFT

$

$

Not available

5048604-08

Jonsered 504860408

LEVER CHOKE FAST IDLE
(Superseded to 537158201)

$4.99

$

Usually ships in 3-10 days

0

5035625-01

Jonsered 503562501

SPRING
(Superseded to 537158101)

$11.99

$

Usually ships in 3-10 days

0

5371529-01

Jonsered 537152901

THROTTLE SHAFT

$

$

Not available

5036696-01

Jonsered 503669601

THROTTLE VALVE

$5.99

$

Usually ships in 3-10 days

0

5300350-15

Jonsered 530035015

SCREW SHUTTERS

$

$

Not available

5036009-01

$

$

Not available

5018329-01

$2.49

$

Usually ships in 3-10 days

0

5038013-01

Jonsered 503801301

CONNECTION

$

$

Not available

5016661-01

Jonsered 501666101

FUEL INLET SCREEN

$14.99

$

Usually ships in 3-10 days

0

5039916-01

Jonsered 503991601

IDLER ARM

$

$

Not available

5370034-01

Jonsered 537003401

SCREW
(Superseded to 501468701)

$7.99

$

Usually ships in 3-10 days

0

5022547-01

Jonsered 502254701

PUMP DIAPHRAGM

Note: 531 00 45-21 SET OF GASKETS

$22.99

$

In Stock, only 2 left!

0

5038006-01

Jonsered 503800601

GASKET
(Superseded to 501666901)

Note: 531 00 45-21 SET OF GASKETS

$17.99

$

In Stock, Qty 6

0

5016662-01

Jonsered 501666201

COVER, PUMP SIDE

$6.99

$

Usually ships in 3-10 days

0

5035623-01

$

$

Not available

5039154-01

$9.49

$

Usually ships in 3-10 days

0

5039139-01

Jonsered 503913901

LIMITER CAP

$

$

Not available

5039140-01

Jonsered 503914001

LIMITER CAP

$5.99

$

In Stock, only 1 left!

0

5036148-01

Jonsered 503614801

IDLE SPEED SCREW

$

$

Not available

5039444-01

$13.99

$

In Stock, only 1 left!

0

5036252-01

$

$

Not available

5039451-01

Jonsered 503945101

IDLE NEEDLE

$13.84

$

Usually ships in 3-10 days

0

5039450-01

Jonsered 503945001

ADJUSTING SCREW

$

$

Not available

5016677-01

$9.49

$

In Stock, only 3 left!

0

5036078-01

Jonsered 503607801

PLUG
(Superseded to 503574201)

$7.99

$

In Stock, only 4 left!

0

5035815-01

$5.99

$

Usually ships in 3-10 days

0

5030818-01

Jonsered 503081801

WASHER NLA

$

$

Not available

5039712-01

$3.49

$

Usually ships in 3-10 days

0

5035624-01

$7.99

$

In Stock, only 2 left!

0

5035634-01

Jonsered 503563401

INLET NEEDLE

$17.99

$

In Stock, Qty 9

0

5016683-01

$17.99

$

Usually ships in 3-10 days

0

5055201-25

Jonsered 505520125

FULCRUM PIN

$7.99

$

In Stock, only 3 left!

0

5053167-17

$7.99

$

In Stock, Qty 6

0

5016670-01

Jonsered 501667001

GASKET, METERING SIDE

Note: 531 00 45-21 SET OF GASKETS

$7.99

$

In Stock, only 3 left!

0

5016673-01

Jonsered 501667301

METERING DIAPHRAGM

Note: 531 00 45-21 SET OF GASKETS

$74.99

$

In Stock, only 1 left!

0

5031617-01

$

$

Not available
