RS 52 - Jonsered String Trimmer (2001-05) CLUTCH Parts Diagram

String Trimmer

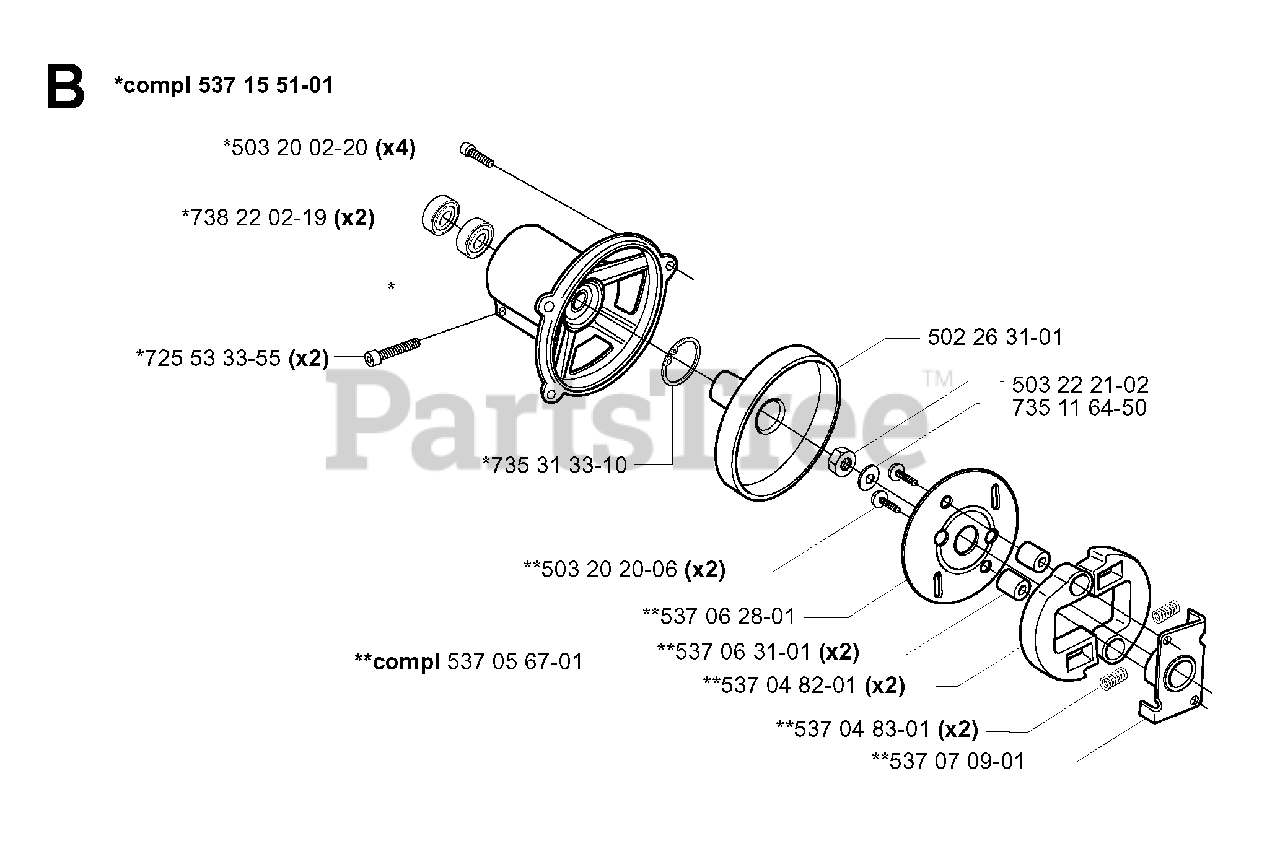

CLUTCH Parts Diagram

  • Title
5371551-01

Jonsered 537155101

CLUTCH COVER

$

$

Not available

5032002-20

Jonsered 503200220

No Description Available

$6.49

$

In Stock, Qty 18

0

7382202-19

Jonsered 738220219

BALL BEARING 6202-2RS1

$35.99

$

Usually ships in 3-10 days

0

7255333-55

Jonsered 725533355

SCREW MC6S 5X25

$6.49

$

In Stock, Qty 19

0

5370567-01

$

$

Not available

5370709-01

$33.45

$

Usually ships in 3-10 days

0

5370483-01

$8.99

$

Usually ships in 3-10 days

0

5370482-01

Jonsered 537048201

CLUTCH SHOE

$

$

Not available

5370631-01

$

$

Not available

5370628-01

$

$

Not available

5032020-06

$

$

Not available

7353133-10

Jonsered 735313310

RETAINING RING SGH 35

$3.49

$

Usually ships in 3-10 days

0

7351164-50

Jonsered 735116450

SPRING WASHER 8.4X15

$2.49

$

In Stock, only 1 left!

0

5032221-02

Jonsered 503222102

LOCK NUT M8

$3.49

$

Usually ships in 3-10 days

0

5022631-01

Jonsered 502263101

CLUTCH DRUM

$

$

Not available
