RS 51 - Jonsered String Trimmer (1995-03) STARTER Parts Diagram

String Trimmer

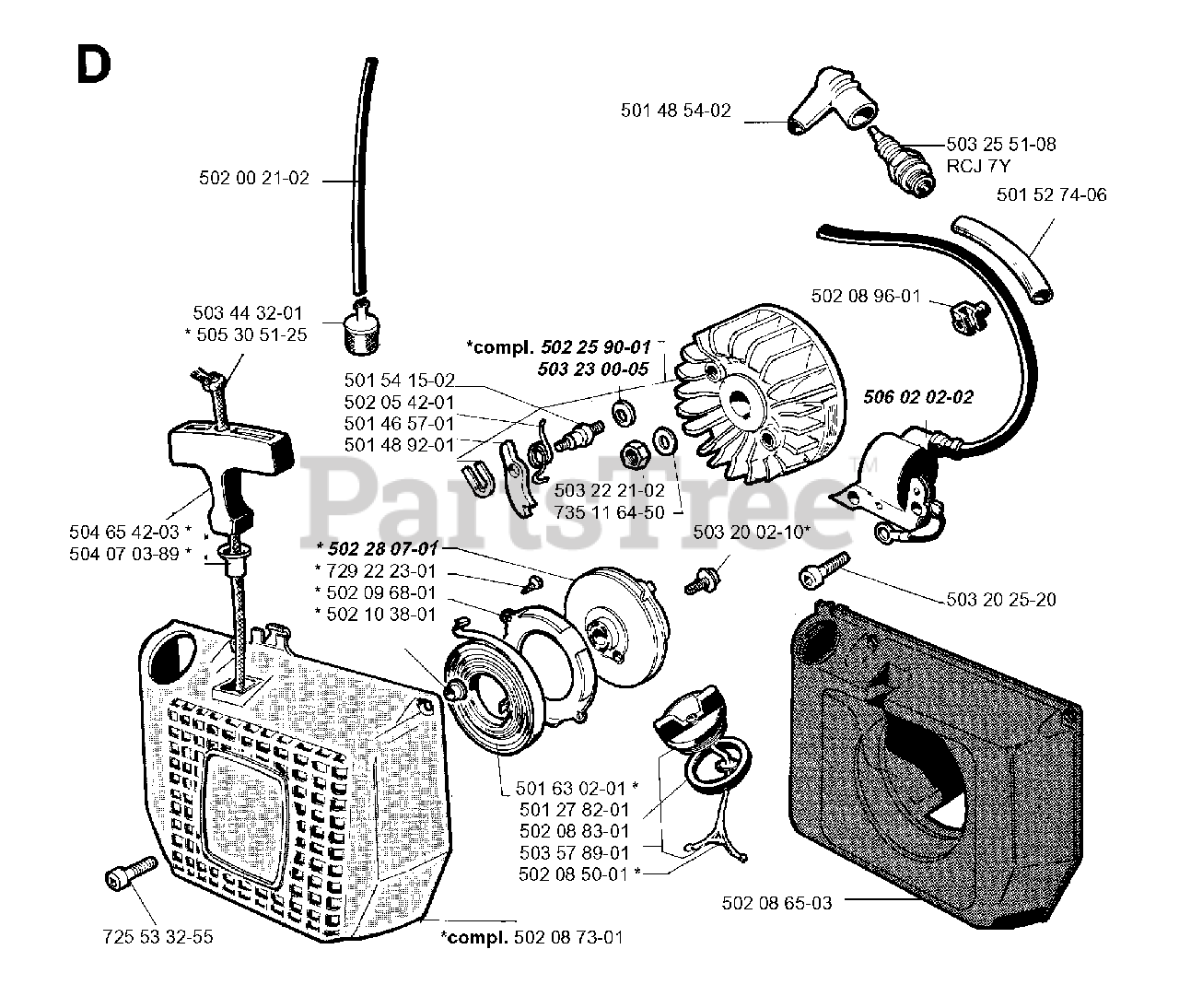

STARTER Parts Diagram

  • Title
5020021-02

$

$

Not available

5034432-01

Jonsered 503443201

FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

5053051-25

Jonsered 505305125

STARTER ROPE

$9.49

$

In Stock, Qty 6

0

5046542-03

$10.99

$

In Stock, only 2 left!

0

5040703-89

Jonsered 504070389

SLEEVE NLA

$

$

Not available

7255332-55

Jonsered 725533255

SCREW MC6S 5X22

$

$

Not available

5020873-01

Jonsered 502087301

MAGNAPULL COMPL.
(Superseded to 502087307)

$79.37

$

Usually ships in 3-10 days

0

5020850-01

Jonsered 502085001

FAN HOUSING

$

$

Not available

5035789-01

$9.99

$

In Stock, Qty 15

0

5020883-01

Jonsered 502088301

TANK CAP
(Superseded to 503828006)

$14.99

$

Usually ships in 3-10 days

0

5012782-01

$7.49

$

Usually ships in 3-10 days

0

5016302-01

Jonsered 501630201

RECOIL SPRING

$31.99

$

In Stock, only 1 left!

0

5021038-01

$2.23

$

Usually ships in 3-10 days

0

5020968-01

$

$

Not available

7292223-01

Jonsered 729222301

SCREW CSK B4X8

$

$

Not available

5022807-01

Jonsered 502280701

STARTER PULLEY

$

$

Not available

5014892-01

Jonsered 501489201

RETAINING RING

$4.46

$

In Stock, only 1 left!

0

5014657-01

$

$

Not available

5020542-01

$

$

Not available

5015415-02

Jonsered 501541502

DRIVE PIN
(Superseded to 501541503)

$

$

Not available

5022590-01

$

$

Not available

5032300-05

Jonsered 503230005

WASHER 6.5X11

$6.49

$

In Stock, only 3 left!

0

5032221-02

Jonsered 503222102

LOCK NUT M8

$3.49

$

Usually ships in 3-10 days

0

7351164-50

Jonsered 735116450

SPRING WASHER 8.4X15

$2.49

$

In Stock, only 1 left!

0

5020865-03

Jonsered 502086503

TANK UNIT

$

$

Not available

5032002-10

Jonsered 503200210

SCREW
(Superseded to 503200710)

$6.49

$

In Stock, Qty 20+

0

5014854-02

Jonsered 501485402

SPARK PLUG CONN. KIT

$13.99

$

In Stock, only 3 left!

0

5020896-01

Jonsered 502089601

CABLE SOCKET

$4.46

$

Usually ships in 3-10 days

0

5060202-02

Jonsered 506020202

REPL BY 503 90 15-01
(Superseded to 503901501)

$103.85

$

Usually ships in 3-10 days

0

5032025-20

$6.49

$

In Stock, Qty 10

0

5015274-06

$5.99

$

Usually ships in 3-10 days

0

5032551-08

Jonsered 503255108

No Description Available

Note: RCJ 7Y

$

$

Not available
