RS 51 - Jonsered String Trimmer (1990-06) CYLINDER CRANKCASE Parts Diagram

String Trimmer

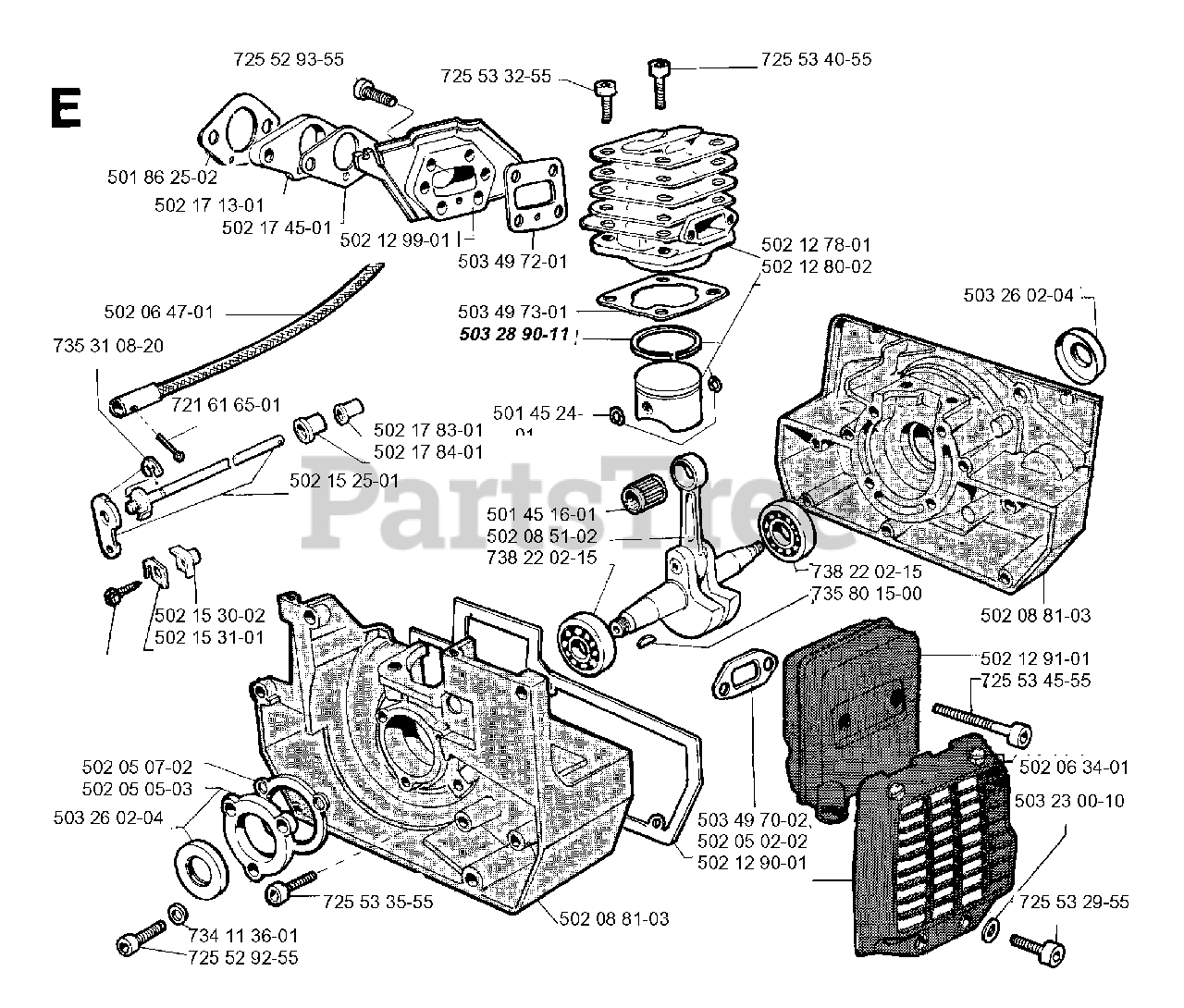

CYLINDER CRANKCASE Parts Diagram

  • Title
7255293-55

Jonsered 725529355

SCREW MC6S 4X16
(Superseded to 725529356)

$5.99

$

In Stock, only 2 left!

0

5018625-02

$

$

Not available

5021713-01

$

$

Not available

5021745-01

$3.49

$

Usually ships in 3-10 days

0

5020647-01

Jonsered 502064701

WIRE
(Superseded to 502036801)

$

$

Not available

7353108-20

$4.99

$

In Stock, Qty 20+

0

7216165-01

Jonsered 721616501

SPLIT PIN 2.5X16

$

$

Not available

5021530-02

$

$

Not available

5021531-01

$2.49

$

Usually ships in 3-10 days

0

5020507-02

$

$

Not available

5020505-03

Jonsered 502050503

COVER CPL.
(Superseded to 502269901)

$

$

Not available

5032602-04

Jonsered 503260204

SEALING RING

$14.99

$

In Stock, only 2 left!

0

7255292-55

Jonsered 725529255

SCREW MC6S 4X14
(Superseded to 725529356)

$5.99

$

In Stock, only 2 left!

0

7341136-01

$4.99

$

Usually ships in 3-10 days

0

7255335-55

Jonsered 725533555

SCREW MC6S 5X30

$3.49

$

In Stock, only 1 left!

0

5021525-01

Jonsered 502152501

SHAFT CPL.

$

$

Not available

5021784-01

Jonsered 502178401

REPL BY 502 17 84-02
(Superseded to 502178402)

$

$

Not available

5021783-01

$

$

Not available

5021299-01

Jonsered 502129901

REPL BY 502 12 99-02
(Superseded to 502129902)

$

$

Not available

7255332-55

Jonsered 725533255

SCREW MC6S 5X22

$

$

Not available

5034972-01

$

$

Not available

5034973-01

$3.49

$

Usually ships in 3-10 days

0

5032890-11

Jonsered 503289011

%PISTON RING
(Superseded to 544435001)

$31.99

$

In Stock, only 2 left!

0

5014524-01

Jonsered 501452401

LOCKING RING
(Superseded to 737441000)

$6.49

$

In Stock, only 1 left!

0

5014516-01

Jonsered 501451601

RP SUPPORT BUSHING
(Superseded to 503256301)

$24.99

$

In Stock, only 1 left!

0

5020851-02

Jonsered 502085102

REPL BY 502 08 51-03
(Superseded to 502085103)

$

$

Not available

7382202-15

Jonsered 738220215

BALL BEARING 6202-QE6
(Superseded to 738220225)

$31.99

$

Usually ships in 3-10 days

0

5020881-03

Jonsered 502088103

CRANKCASE

$348.81

$

Usually ships in 3-10 days

0

5021290-01

Jonsered 502129001

HEAT PROTECTOR

$77.13

$

Usually ships in 3-10 days

0

5020502-02

Jonsered 502050202

GASKET
(Superseded to 502229401)

$5.76

$

Usually ships in 3-10 days

0

5034970-02

$

$

Not available

7358015-00

Jonsered 735801500

WOODRUFF KEY

$

$

Not available

7382202-15

Jonsered 738220215

BALL BEARING 6202-QE6
(Superseded to 738220225)

$31.99

$

Usually ships in 3-10 days

0

5021280-02

Jonsered 502128002

PISTON CPL 45 MM

$

$

Not available

5021278-01

Jonsered 502127801

CYLINDER CPL.

$

$

Not available

7255340-55

Jonsered 725534055

SCREW MC6S 5X45

$4.99

$

Usually ships in 3-10 days

0

7255329-55

Jonsered 725532955

SCREW MC6S 5X16

$7.99

$

In Stock, Qty 20+

0

5032300-10

Jonsered 503230010

WASHER 5.3X10

$

$

Not available

5020634-01

$

$

Not available

7255345-55

Jonsered 725534555

SCREW MC6S 5X70
(Superseded to 501497702)

$

$

Not available

5021291-01

$

$

Not available

5020881-03

Jonsered 502088103

CRANKCASE

$348.81

$

Usually ships in 3-10 days

0

5032602-04

Jonsered 503260204

SEALING RING

$14.99

$

In Stock, only 2 left!

0
