RS 44 - Jonsered String Trimmer (1991-03) HANDLE CONTROLS Parts Diagram

String Trimmer

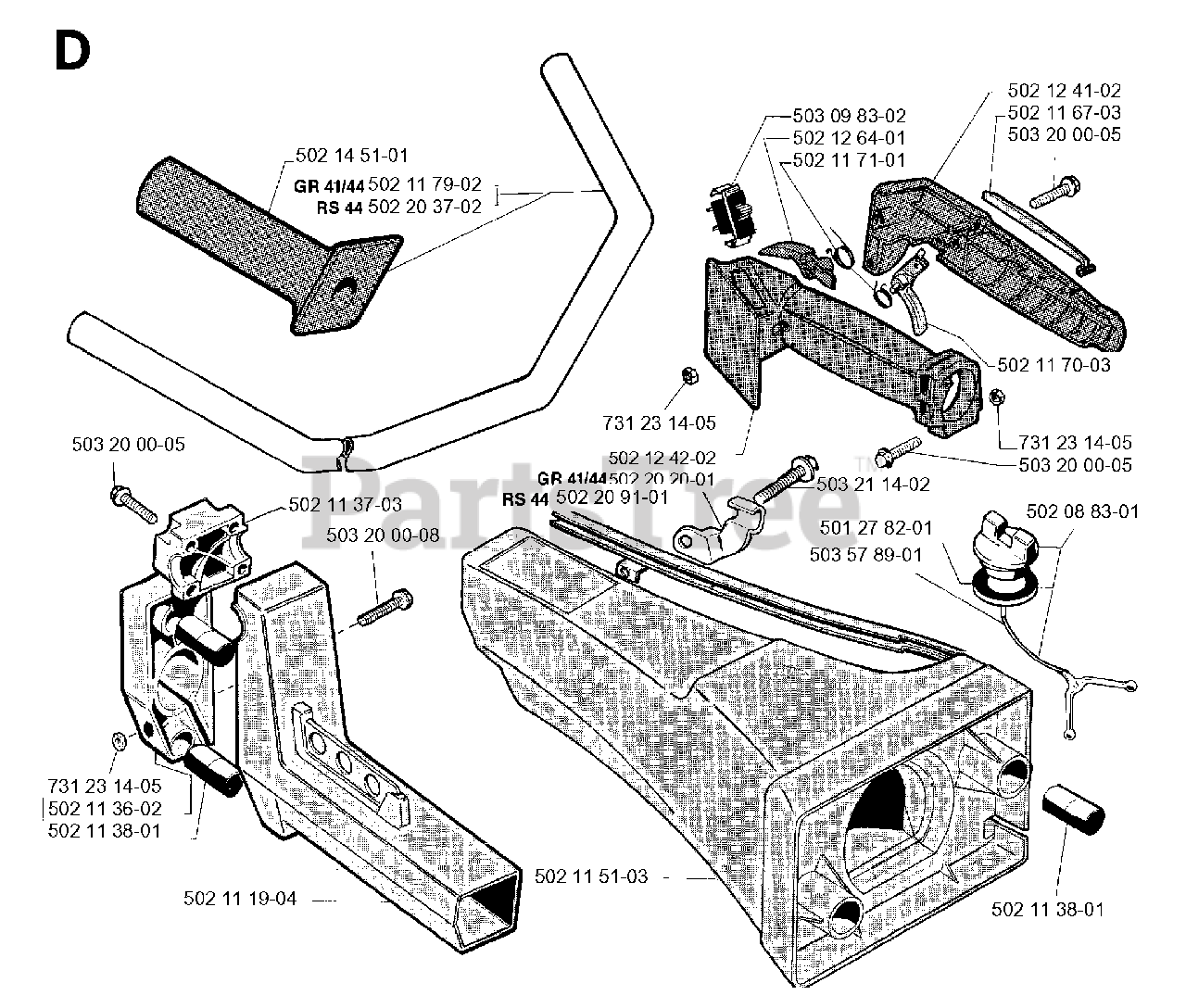

HANDLE CONTROLS Parts Diagram

  • Title
5021451-01

Jonsered 502145101

HANDLE
(Superseded to 502145103)

$17.99

$

Usually ships in 3-10 days

0

5021179-02

Jonsered 502117902

REPL BY 502 11 79-03
(Superseded to 502117903)

Note: GR 41 /44

$

$

Not available

5022037-02

Jonsered 502203702

REPL BY 502 20 37-04
(Superseded to 502203704)

Note: RS 44

$

$

Not available

5032000-05

Jonsered 503200005

SCREW M6SF 5X25
(Superseded to 503215325)

$4.99

$

In Stock, only 3 left!

0

7312314-05

Jonsered 731231405

NUT M6M M5

$3.49

$

Usually ships in 3-10 days

0

5021136-02

$

$

Not available

5021138-01

$11.99

$

In Stock, only 4 left!

0

5021119-04

Jonsered 502111904

SUPPORTING TUBE

$

$

Not available

5032000-08

Jonsered 503200008

SCREW M6SF 5X30

$2.99

$

In Stock, only 4 left!

0

5021137-03

$

$

Not available

5021151-03

Jonsered 502115103

REPL BY 502 11 51-05
(Superseded to 502115105)

$

$

Not available

5022091-01

Jonsered 502209101

REPL BY 502 21 18-01
(Superseded to 502211801)

Note: RS 44

$

$

Not available

5022020-01

Jonsered 502202001

NO LONGER AVAILABLE NLA

Note: GR 41 /44

$

$

Not available

5021242-02

$

$

Not available

7312314-05

Jonsered 731231405

NUT M6M M5

$3.49

$

Usually ships in 3-10 days

0

5032114-02

Jonsered 503211402

SCREW B12X25
(Superseded to 503210625)

$4.99

$

In Stock, Qty 8

0

5012782-01

$7.49

$

In Stock, only 1 left!

0

5035789-01

$9.99

$

In Stock, Qty 15

0

5021138-01

$11.99

$

In Stock, only 4 left!

0

5020883-01

Jonsered 502088301

TANK CAP
(Superseded to 503828006)

$14.99

$

Usually ships in 3-10 days

0

5032000-05

Jonsered 503200005

SCREW M6SF 5X25
(Superseded to 503215325)

$4.99

$

In Stock, only 3 left!

0

7312314-05

Jonsered 731231405

NUT M6M M5

$3.49

$

Usually ships in 3-10 days

0

5021170-03

Jonsered 502117003

THROTTLE TRIGGER

$

$

Not available

5032000-05

Jonsered 503200005

SCREW M6SF 5X25
(Superseded to 503215325)

$4.99

$

In Stock, only 3 left!

0

5021167-03

Jonsered 502116703

THROTTLE LOCK

$

$

Not available

5021241-02

$

$

Not available

5021171-01

$

$

Not available

5021264-01

Jonsered 502126401

THROTTLE CATCH

$

$

Not available

5030983-02

Jonsered 503098302

SWITCH
(Superseded to 503718201)

$13.99

$

In Stock, Qty 5

0
