RS 40 - Jonsered String Trimmer (1990-02) STARTER Parts Diagram

String Trimmer

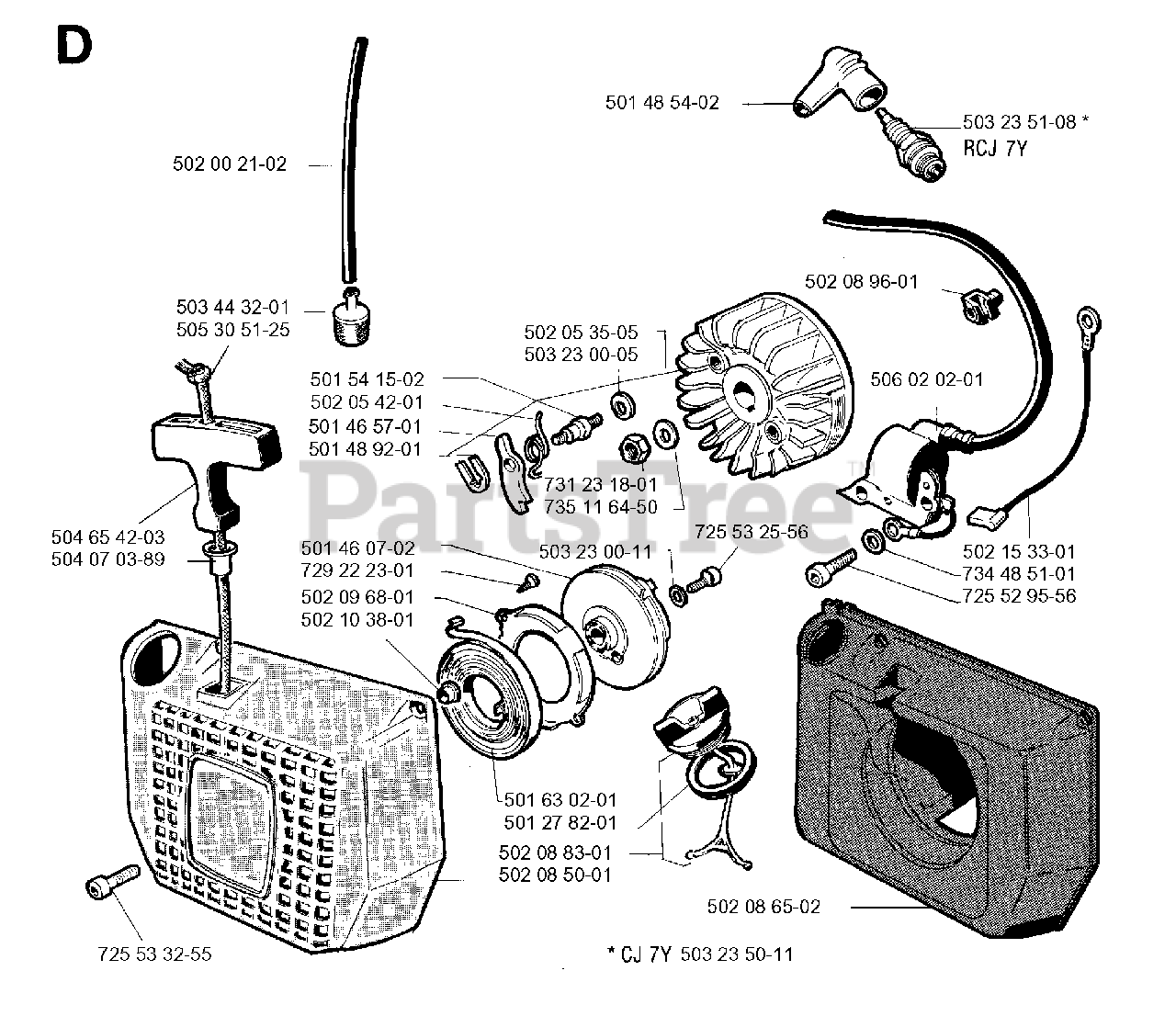

STARTER Parts Diagram

  • Title
5020021-02

$

$

Not available

5034432-01

Jonsered 503443201

FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

5053051-25

Jonsered 505305125

STARTER ROPE

$9.49

$

In Stock, only 2 left!

0

5046542-03

$10.99

$

In Stock, only 2 left!

0

5040703-89

Jonsered 504070389

SLEEVE NLA

$

$

Not available

7255332-55

Jonsered 725533255

SCREW MC6S 5X22

$

$

Not available

5021038-01

$2.23

$

Usually ships in 3-10 days

0

5020968-01

$

$

Not available

7292223-01

Jonsered 729222301

SCREW CSK B4X8

$

$

Not available

5014607-02

Jonsered 501460702

STARTER PULLEY
(Superseded to 501460703)

$

$

Not available

5014892-01

Jonsered 501489201

RETAINING RING

$4.46

$

In Stock, only 1 left!

0

5014657-01

$

$

Not available

5020542-01

$

$

Not available

5015415-02

Jonsered 501541502

DRIVE PIN
(Superseded to 501541503)

$

$

Not available

5020535-05

$

$

Not available

5032300-05

Jonsered 503230005

WASHER 6.5X11

$6.49

$

In Stock, only 3 left!

0

7312318-01

Jonsered 731231801

NUT
(Superseded to 695008078)

$

$

Not available

7351164-50

Jonsered 735116450

SPRING WASHER 8.4X15

$2.49

$

In Stock, only 1 left!

0

5032300-11

Jonsered 503230011

WASHER 5.3X12

$6.49

$

In Stock, only 2 left!

0

5016302-01

Jonsered 501630201

RECOIL SPRING

$31.99

$

In Stock, only 1 left!

0

5012782-01

$7.49

$

In Stock, only 1 left!

0

5020883-01

Jonsered 502088301

TANK CAP
(Superseded to 503828006)

$14.99

$

Usually ships in 3-10 days

0

5020850-01

Jonsered 502085001

FAN HOUSING

$

$

Not available

5032350-11

Jonsered 503235011

SPARK PLUG NGK BPM7A

Note: CJ 7Y

$

$

Not available

5020865-02

Jonsered 502086502

REPL BY 502 08 65-03
(Superseded to 502086503)

$

$

Not available

7255325-56

Jonsered 725532556

RP SCREW MC6S 5X10
(Superseded to 725532555)

$4.99

$

In Stock, only 4 left!

0

7255295-56

Jonsered 725529556

SCREW MC6S 4X20
(Superseded to 503202620)

$3.49

$

Usually ships in 3-10 days

0

7344851-01

Jonsered 734485101

FLAT WASHER 4.3X8

$

$

Not available

5021533-01

$5.83

$

Usually ships in 3-10 days

0

5060202-01

Jonsered 506020201

REPL BY 506 02 02-02
(Superseded to 506020202)

$103.85

$

Usually ships in 3-10 days

0

5020896-01

Jonsered 502089601

CABLE SOCKET

$4.46

$

Usually ships in 3-10 days

0

5032351-08

Jonsered 503235108

SPARK PLUG RCJ7Y
(Superseded to 952030150)

Note: RCJ 7Y

$3.99

$

In Stock, Qty 20+

0

5014854-02

Jonsered 501485402

SPARK PLUG CONN. KIT

$13.99

$

In Stock, Qty 5

0
